The 3/4 Inch Dual-Flow Solenoid Valve is designed for fuel dispensers, featuring a durable brass body and an advanced built-in parallel solenoid pilot valve. Engineered for precision and reliability, this valve ensures stable operation under harsh conditions, including temperatures as low as -40°C. Ideal for controlling gasoline, diesel, and kerosene flow with an adjustable dual-flow design to meet diverse fueling needs.
|
| MSF-20AA |
Technical Specifications:
Working Medium: Gasoline, Diesel, Kerosene
Operating Pressure: 0.035 MPa ~ 0.35 MPa
Flow Rate: 3 ~ 50 L/min
Working Voltage: AC 220V,AC110V,DC24V,DC12V for Option
Nominal Diameter: DN20 (3/4 inch)
|
Ordering Specifications:
| Product # |
Detailed Specifications |
| MSF-20AA |
Dual flanges, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage AC220V |
| MSF-20AB |
Dual flanges, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage AC110V |
| MSF-20AC |
Dual flanges, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage DC24V |
| MSF-20AD |
Dual flanges, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage DC12V |
| MSF-20AF |
Dual flanges, center distance 65 mm, inlet 2-Ø, inlet 2-Ø8.5 with O-ring, outlet 2-M8 with O-rings, voltage AC220V |
| MSF-20AG |
Dual flanges, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage AC220V, with aluminum tube connector (M20×1.5) |
| MSF-20AH |
Dual flanges, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage AC110V, with aluminum tube connector (M20×1.5) |
| MSF-20BA |
Both ends with external / male thread M33×1.5, inner bore/inner diameter of Ø22.5 mm, voltage AC220V |
| MSF-20BB |
Both ends with external / male thread M33×1.5, inner bore/inner diameter of inner bore/inner diameter of Ø22.5 mm, voltage AC110V |
| MSF-20BC |
Both ends with external /male thread M33×1.5, inner bore/inner diameter of Ø22.5 mm, voltage DC24V |
| MSF-20BD |
Both ends with external/male thread M33×1.5, inner bore/inner diameter of Ø22.5 mm, voltage DC12V |
| MSF-20BE |
Both ends with external /male 3/4 inch NPT/BSPT threads, voltage AC220V |
| MSF-20CA |
Dual flanges, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage AC220V |
| MSF-20CB |
Dual flanges, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage AC110V |
| MSF-20CC |
Dual flanges, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage DC24V |
| MSF-20CD |
Dual flanges, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Ø8.5 with O-ring, voltage DC12V |
| MSF-20CE |
Dual flanges, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Ø8 with O-ring, voltage AC220V |
| MSF-20DA |
Both ends with internal /female 3/4 NPT/BSPP threads, voltage AC220V |
| MSF-20EA |
Dual flanges, center distance 57 mm, inlet 2-Ø8.5 with O-ring, outlet 2-M8 with O-ring, voltage AC220V |
| MSF-20EB |
Dual flanges, center distance 57 mm, inlet 2-Ø8.5 with O-ring, outlet 2-M8 with O-ring, voltage DC24V |
| MSF-20EC |
Dual flanges, center distance 57 mm, inlet 2-Ø8 with O-ring, outlet 2-M8 with O-ring, voltage AC220V |
Note: Center distance = distance between centers of two bolt holes on each flange face. All items are customizable.
For the solenoid valves listed above, if a specific power cable length is required, please indicate it in the order; Otherwise, the default length is 1.6 meters.
 |
 |
 |

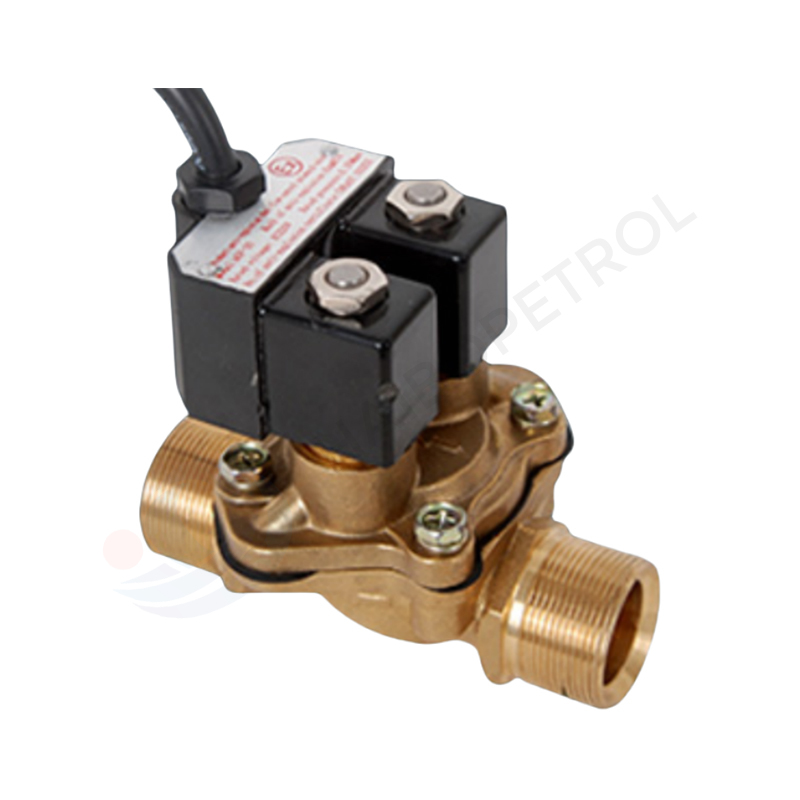

| MSF-20BA |
MSF-20DA |

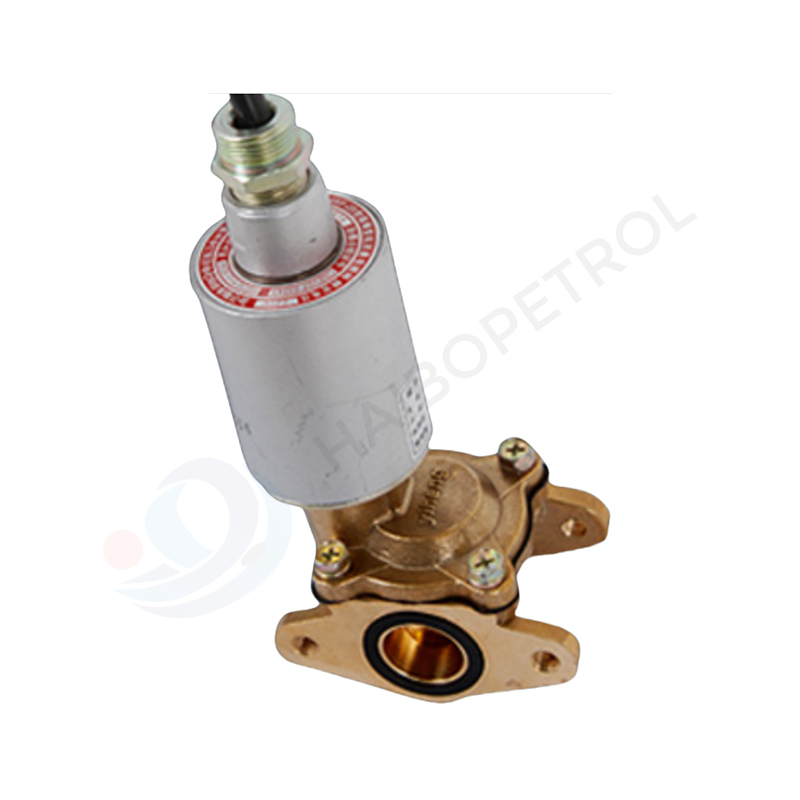

DSF-20AA |
Key Features:
Dual-Flow Design: Internal parallel-type pilot solenoid valve ensures reliable switching between low and high flow, suitable for precise control at different fuel dispensing stages.
Imported Rubber Diaphragm: Main valve diaphragm made of specially imported rubber. Strong resistance to corrosion and remains flexible at low temperatures as low as -40℃.
Advanced Magnetic Circuit Components: Constructed using special stainless magnetic materials that ensure rust-free performance and zero residual magnetism.
High-Quality Coil: Coil is wound with imported Class-F enameled wire, providing low temperature rise and excellent insulation for prolonged operation.
Adjustable Low Flow Rate: When the working pressure is between 0.3 and 0.4 MPa, the valve closes the main passage and maintains a small flow system of 3~3.5L/min. Customizable flow rates available on request.
|
MSF-25-XX Series of Dual-Flow Solenoid Valves for Fuel Dispenser (DN25 mm / 1 inch)
|
 |
The 1 Inch Dual-Flow Solenoid Valve is designed for fuel dispensers, featuring a durable brass body and an advanced built-in parallel solenoid pilot valve. Engineered for precision and reliability, this valve ensures stable operation under harsh conditions, including temperatures as low as -40°C. Ideal for controlling gasoline, diesel, and kerosene flow with an adjustable dual-flow design to meet diverse fueling needs.
|

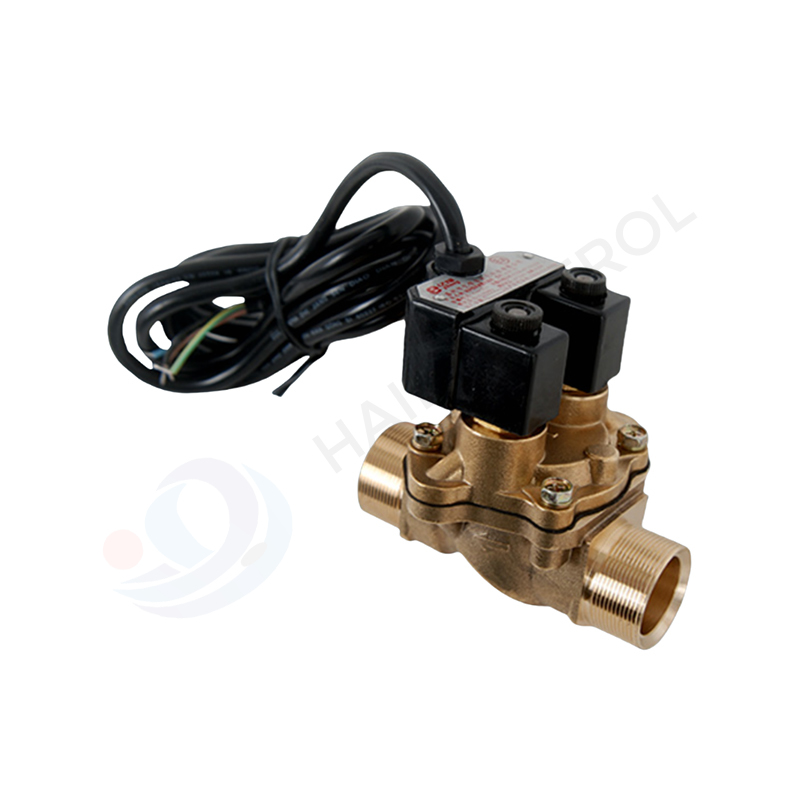

| MSF-25BA |
Technical Specifications:
Working Medium: Gasoline, Diesel, Kerosene
Operating Pressure: 0.035 MPa ~ 0.35 MPa
Flow Rate: 5 ~ 100 L/min
Working Voltage: AC 220V,AC110V,DC24V,DC12V for Option
Nominal Diameter: DN25 (1 inch)
|
Ordering Specifications:
| Product # |
Detailed Specifications |
| msf-25AA |
Double-flange type, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage AC220V. |
| msf-25AB |
Double-flange type, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage AC110V. |
| msf-25AC |
Double-flange type, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage DC24V. |
| msf-25AD |
Double-flange type, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage DC12V. |
| msf-25AE |
Double-flange type, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-M8 with O-ring, voltage AC220V. |
| msf-25AF |
Double-flange type, center distance 65 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage AC110V, with aluminum pipe connector (M20*1.5). |
| msf-25BA |
Double external/male thread M33*1.5, inner diameter Φ25.5 mm, voltage AC220V. |
| msf-25BB |
Double external/male thread M33*1.5, inner diameter Φ25.5, voltage AC110V. |
| msf-25BC |
Double external/male thread M33*1.5, inner diameter Φ25.5, voltage DC24V. |
| msf-25BD |
Double external/male thread M33*1.5, inner diameter Φ25.5, voltage DC12V. |
| msf-25BE |
Double external/male thread BSPT 1 inch, voltage AC220V. |
| msf-25CA |
Double-flange type, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage AC220V. |
| msf-25CB |
Double-flange type, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage AC110V. |
| msf-25CC |
Double-flange type, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage DC24V. |
| msf-25CD |
Double-flange type, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-Φ8.5 with O-ring, voltage DC12V. |
| msf-25CE |
Double-flange type, center distance 70 mm, inlet 2-M8 with O-ring, outlet 2-M8 with O-ring, voltage AC220V. |
| msf-25DA |
Double internal/female thread, inlet & outlet threads RC1", voltage AC220V. |
| msf-25DB |
Double internal/female thread, inlet & outlet threads ZG1"ZG1"（BSPT1”）, voltage AC220V. |
| msf-25DC |
Double internal/female thread, inlet & outlet threads NPT", voltage AC220V. |
| msf-25DD |
Double internal/female thread, inlet & outlet threads BSPP1", voltage AC220V with 1.6 meters cable. |
Note: Center distance = distance between centers of two bolt holes on each flange face. All items are customizable.
For the solenoid valves listed above, if a specific power cable length is required, please indicate it in the order; otherwise, the default length is 1.6 meters.
 |
 |
 |

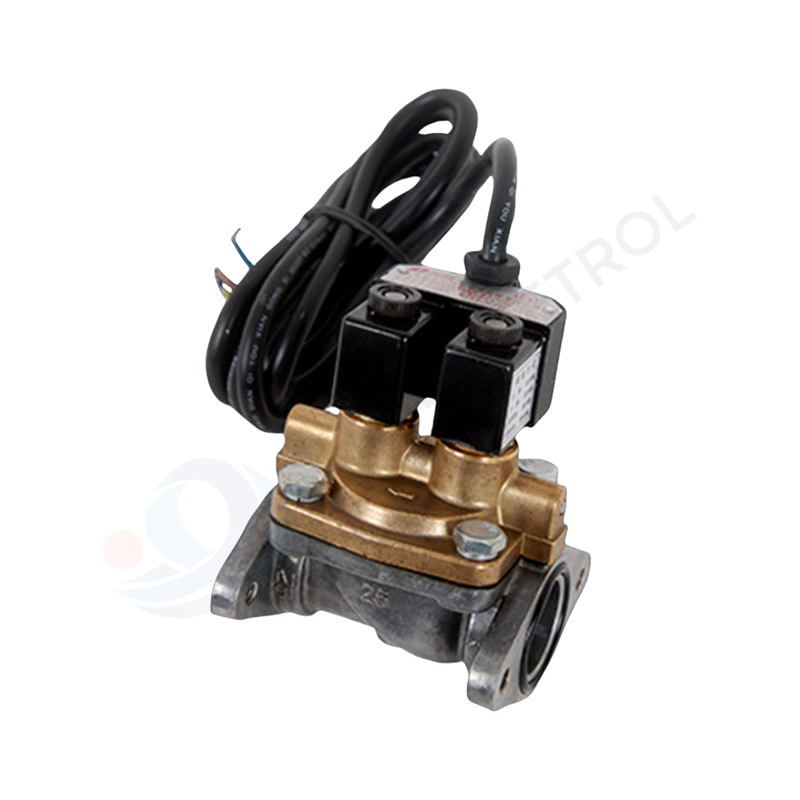

| msf-25AA (Aluminum body for option) |
(DN25 Customized item) |

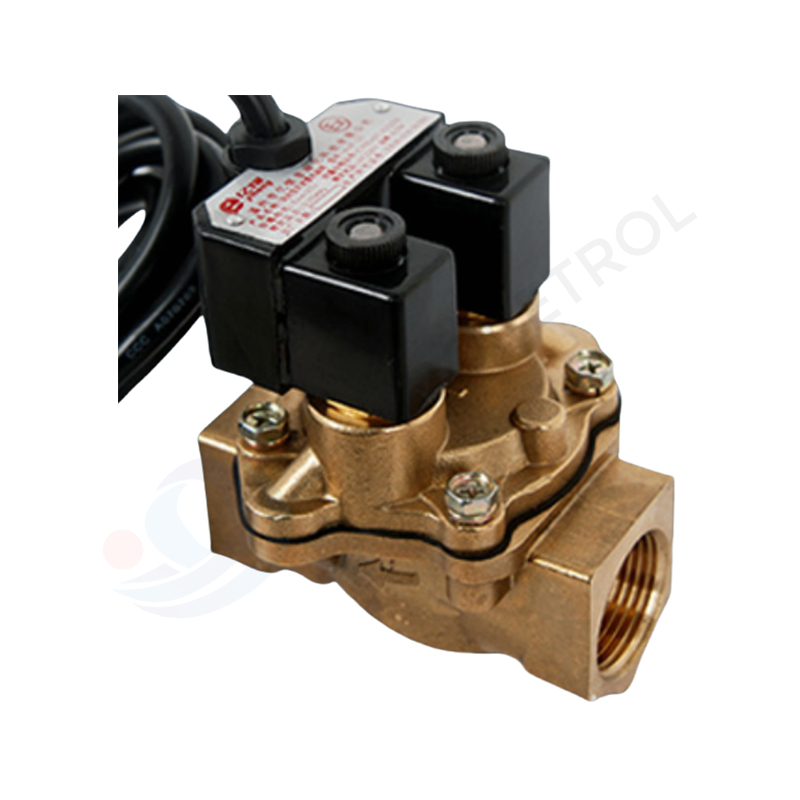

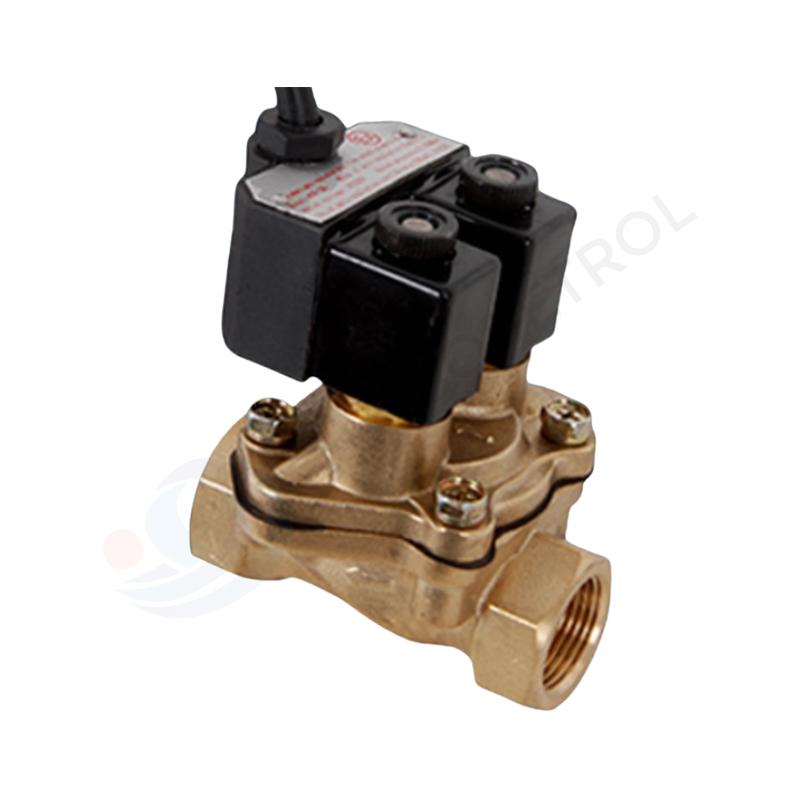

msf-25DA |
Key Features:
Dual-Flow Design: Internal parallel-type pilot solenoid valve ensures reliable switching between low and high flow, suitable for precise control at different fuel dispensing stages.
Imported Rubber Diaphragm: Main valve diaphragm made of specially imported rubber. Strong resistance to corrosion and remains flexible at low temperatures as low as -40℃.
Advanced Magnetic Circuit Components: Constructed using special stainless magnetic materials that ensure rust-free performance and zero residual magnetism.
High-Quality Coil: Coil is wound with imported Class-F enameled wire, providing low temperature rise and excellent insulation for prolonged operation.
Adjustable Low Flow Rate: When the working pressure is between 0.3 and 0.4 MPa, the valve closes the main passage and maintains a small flow system of 5~5.5L/min. Customizable flow rates available on request.
|
DSF-XXXX Series of Solenoid Valve with Cylindrical Coil Head
|
 |
DSF-XXXX Series of Solenoid Valve with Cylindrical Coil Head is designed for fuel dispensers, featuring a durable brass body and an advanced built-in parallel solenoid pilot valve. Engineered for precision and reliability, this valve ensures stable operation under harsh conditions, including temperatures as low as -40°C. Ideal for controlling gasoline, diesel, and kerosene flow with an adjustable dual-flow design to meet diverse fueling needs.
|
|

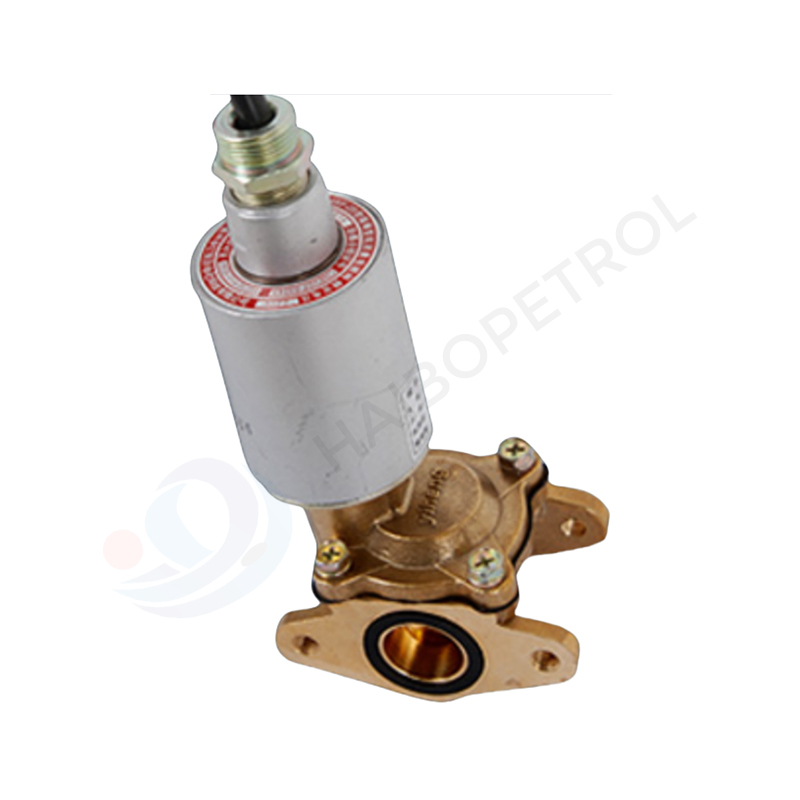

DSF-20AA
|
Technical Specifications:
Working Medium: Gasoline, Diesel, Kerosene
Operating Pressure: 0.035 MPa ~ 0.35 MPa
Flow Rate: 3/4” is flow rate of 3 ~ 50 L/min;
1” is with a flow rate of 5 ~ 100 L/min
1.5” is with a flow rate of 8 ~ 150 L/min
Working Voltage: AC 220V,AC110V,DC24V,DC12V for Option
Nominal Diameter: DN20 (3/4 inch); DN25 (1 inch); DN40 (1.5 inch)
|
Ordering Specifications:
| Product # |
Detailed Specifications |
| dsf-20AA |
Two-end flange; center distance 65 mm; inlet 2-M8 with O-ring; outlet 2-M8.5 with O-ring; voltage AC220V. |
| dsf-20AB |
Two-end flange; center distance 65 mm; inlet 2-M8 with O-ring; outlet 2-M8 with O-ring; voltage AC220V. |
| dsf-20CA |
Two-end flange; center distance 70 mm; inlet 2-M8 with O-ring; outlet 2-M8 with O-ring; voltage AC220V. |
| dsf-20EA |
Two-end flange; center distance 57 mm; inlet 2-M8.5 with O-ring; outlet 2-M8 with O-ring; voltage AC220V. |
| dsf-20EB |
Two-end flange; center distance 57 mm; inlet 2-M8.5 with O-ring; outlet 2-M8 with O-ring; voltage AC110V. |
| dsf-20EC |
Two-end flange; center distance 57 mm; inlet 2-M8.5 with O-ring; outlet 2-M8 with O-ring; voltage DC24V. |
| dsf-20ED |
Two-end flange; center distance 57 mm; inlet 2-M8.5 with O-ring; outlet 2-M8 with O-ring; voltage DC12V. |
| dsf-25CC |
Two-end flange; center distance 70 mm; inlet 2-M8.5 with O-ring; outlet 2-M8.5 with O-ring; voltage DC24V. |
| dsf-25CD |
Two-end flange; center distance 70 mm; inlet 2-M8 with O-ring; outlet 2-M8.5 with O-ring; voltage AC220V. |
| dsf-25DD |
Two-end internal/female thread; both inlet and outlet thread BSPP1”; voltage AC220V. |
| dsf-40DA |
Two-end internal/female thread; both inlet and outlet thread RC1.5”; voltage AC220V. |
Note: Center distance = distance between centers of two bolt holes on each flange face. All items are customizable.
For the solenoid valves listed above, if a specific power cable length is required, please indicate it in the order; otherwise, the default length is 1.6 meters.
Key Features:
Dual-Flow Design: Internal parallel-type pilot solenoid valve ensures reliable switching between low and high flow, suitable for precise control at different fuel dispensing stages.
Imported Rubber Diaphragm: Main valve diaphragm made of specially imported rubber. Strong resistance to corrosion and remains flexible at low temperatures as low as -40℃.
Advanced Magnetic Circuit Components: Constructed using special stainless magnetic materials that ensure rust-free performance and zero residual magnetism.
High-Quality Coil: Coil is wound with imported Class-F enameled wire, providing low temperature rise and excellent insulation for prolonged operation.
Adjustable Low Flow Rate: When the working pressure is between 0.3 and 0.4 MPa, the valve closes the main passage and maintains a small flow system. Customizable flow rates available on request.
More Images:
 |
 |
 |

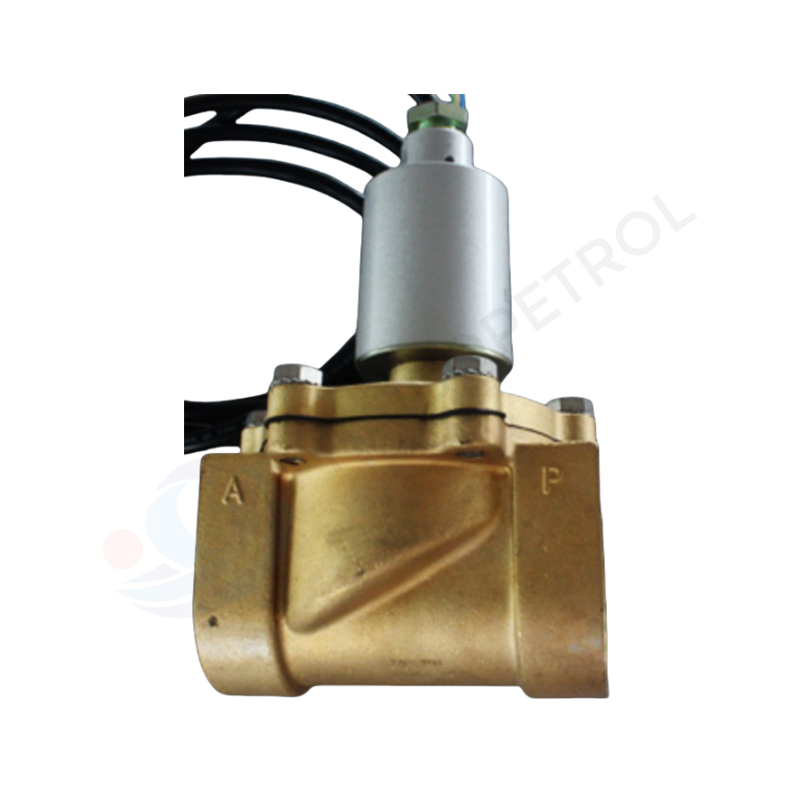

| DSF-40DA （1.5”） |

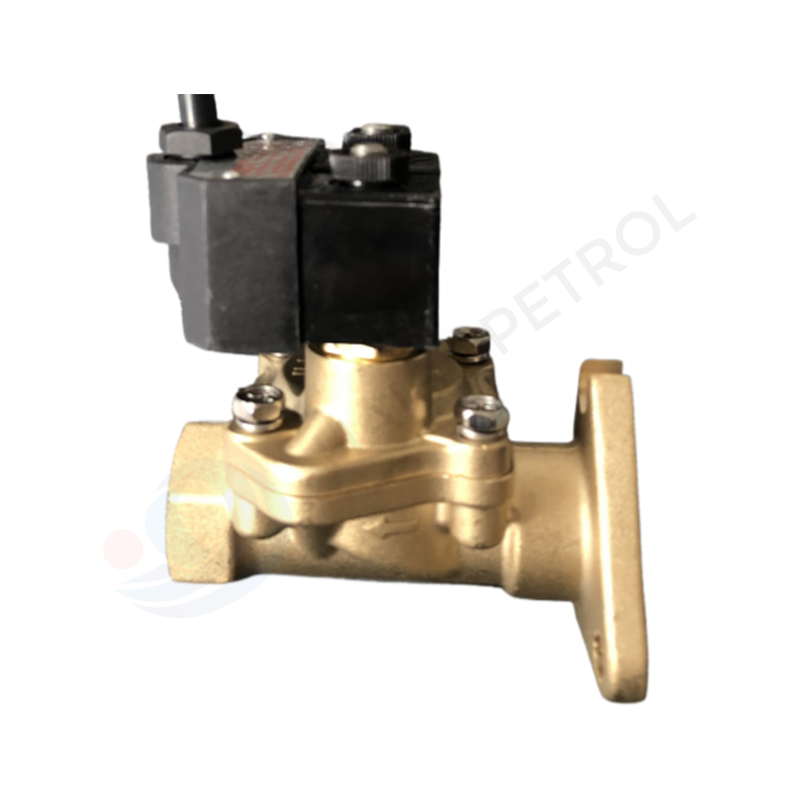

3/4” Brass Body Double Flow
Solenoid Valve for fuel Dipsenser
3/4” BSPP female thread X
Triangle flange for connecting
HBMJ-65 Tatsuno type flow meter
|

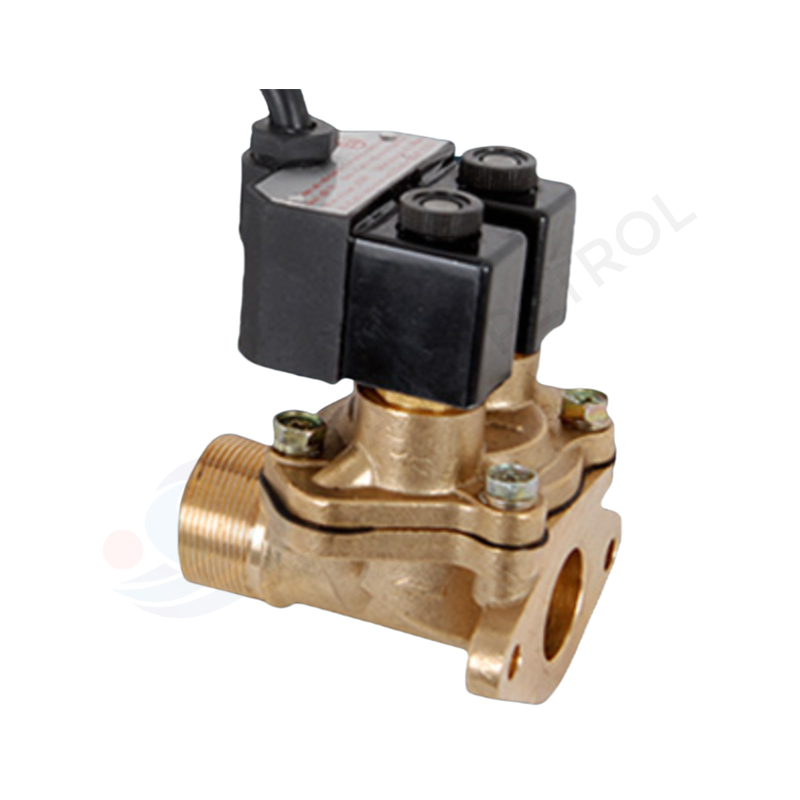

3/4 ”Brass Body Double Flow
Solenoid Valve for fuel Dipsenser
M33X1.5 male thread X
Triangle flange for connecting
HBMJ-65 Tatsuno type flow meter
|
|

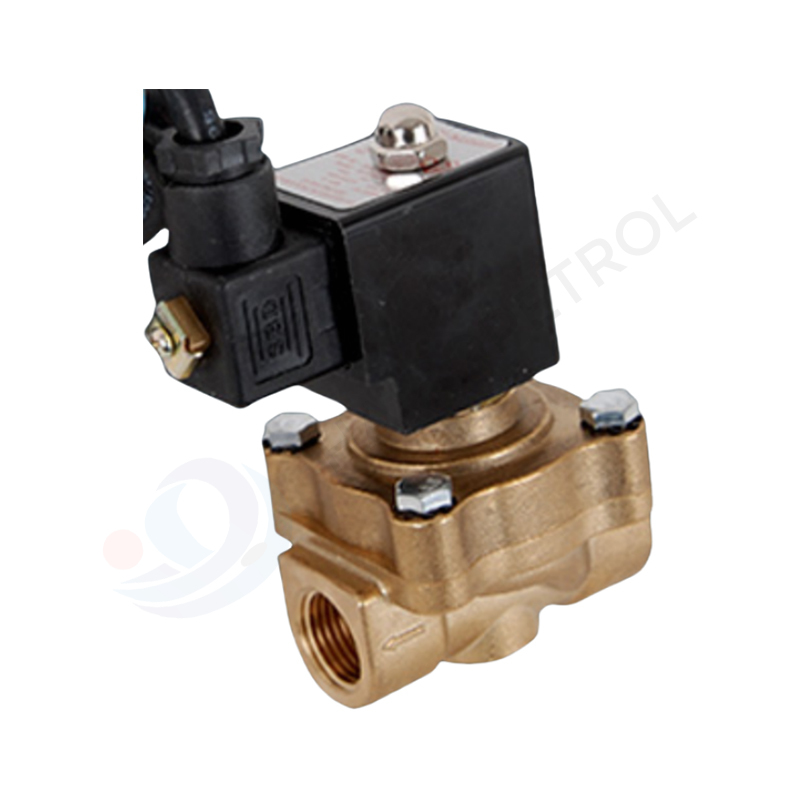

MQF-15X Series of Solenoid Valves for LPG Dispenser
|
 |
This series of Dual-Flow Solenoid Valve is designed for LPG dispensers, featuring a durable brass body and an advanced built-in parallel solenoid pilot valve. Engineered for precision and reliability, this valve ensures stable operation under harsh conditions, including temperatures as low as -40°C. Ideal for controlling LPG flow with an adjustable dual-flow design to meet diverse filling needs.
|
|
Technical Specifications:
Working Medium: LPG
Operating Pressure: 0.035 MPa ~ 1.6MPa
Flow Rate:1/2” is with a flow rate of 3 ~ 40 L/min
3/4” is with a flow rate of 3 ~ 48 L/min
Working Voltage: AC 220V,AC110V,DC24V,DC12V for Option
Nominal Diameter: 1/2”(16mm) or 3/4”(20 mm) for Option
|
Ordering Specifications:
| Product # |
Detailed Specifications |
| MQF-15A |
LPG Solenoid Valve with Connection: Female thread on both ends (BSPT1/2”); Voltage: AC220V |
| MQF-15B |
LPG Solenoid Valve with Connection: Female thread on both ends (BSPT1/2”); Voltage: AC110V |
| MQF-15C |
LPG Solenoid Valve with Connection: Female thread on both ends (BSPT1/2”); Voltage: DC24V |
| ZFDF6-25 |
CNG Solenoid Valve with Connection: Compression fittings ( for Ø10mm stainless steel tubing), Voltage: AC220V |
Key Features:
Dual-Flow Design: Internal parallel-type pilot solenoid valve ensures reliable switching between low and high flow, suitable for precise control at different fuel dispensing stages.
Imported Rubber Diaphragm: Main valve diaphragm made of specially imported rubber. Strong resistance to corrosion and remains flexible at low temperatures as low as -40℃.
Advanced Magnetic Circuit Components: Constructed using special stainless magnetic materials that ensure rust-free performance and zero residual magnetism.
High-Quality Coil: Coil is wound with imported Class-F enameled wire, providing low temperature rise and excellent insulation for prolonged operation.
Adjustable Low Flow Rate: When the working pressure is between 0.3 and 0.4 MPa, the valve closes the main passage and maintains a small flow system of 3~3.5L/min. Customizable flow rates available on request.
