The OGM Series Oval Gear Flow Meters are high-accuracy, high-reliability positive displacement flow measurement devices, widely used for metering and controlling petroleum products, fuels, diesel, lubricating oils, chemical liquids, solvents, and other low to high viscosity fluids.
This product range includes mechanical display models, electronic display models, electronic preset flow meters, and pulse output versions, with housing materials available in aluminum alloy, stainless steel, and engineering plastics, meeting diverse application, budget, and automation requirements.
1. Working Principle and Design Features
The OGM Series flow meters operate based on the oval gear positive displacement measuring principle. As liquid flows through the metering chamber, it drives a pair of precisely machined oval gears to rotate synchronously. Each rotation corresponds to a fixed volume of fluid, which is measured through mechanical counting or electronic signal conversion, ensuring stable and highly repeatable volumetric measurement.
Key Advantages
High accuracy independent of flow velocity
Excellent performance at low flow rates
Ideal for high-viscosity fluids such as lubricating oil and heavy oil
Low pressure loss
Minimal straight pipe length requirement
Compact structure and flexible installation
Stable operation with long service life
2. Main Product Categories of the OGM Series
2.1 Mechanical Oval Gear Flow Meters
Representative Models:

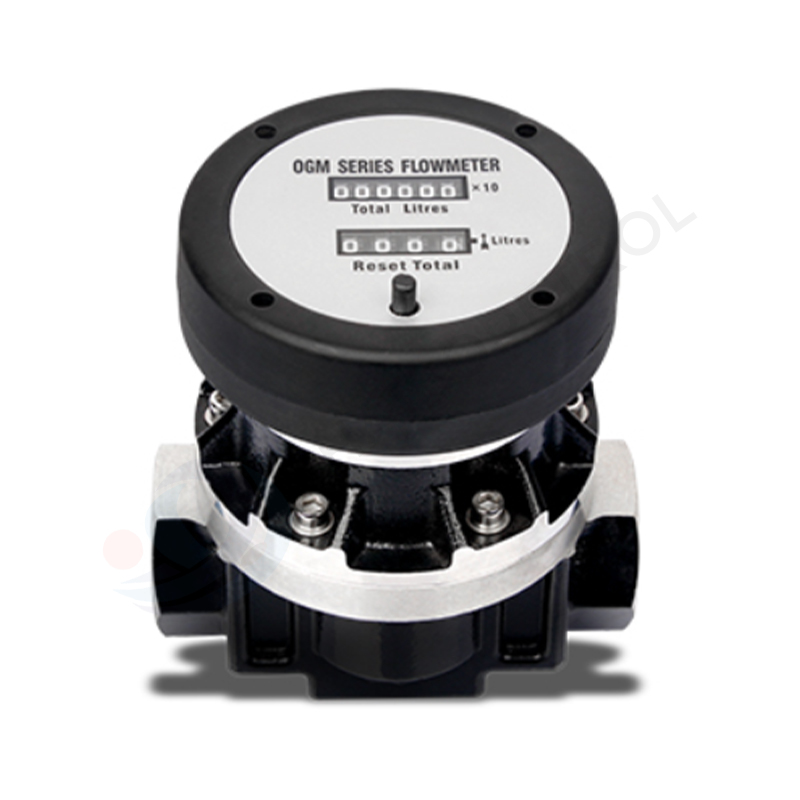

OGM-XXM Series Mechanical Oval Gear Flow Meters
OGM-XXN Series Mechanical Oval Gear Flow Meters

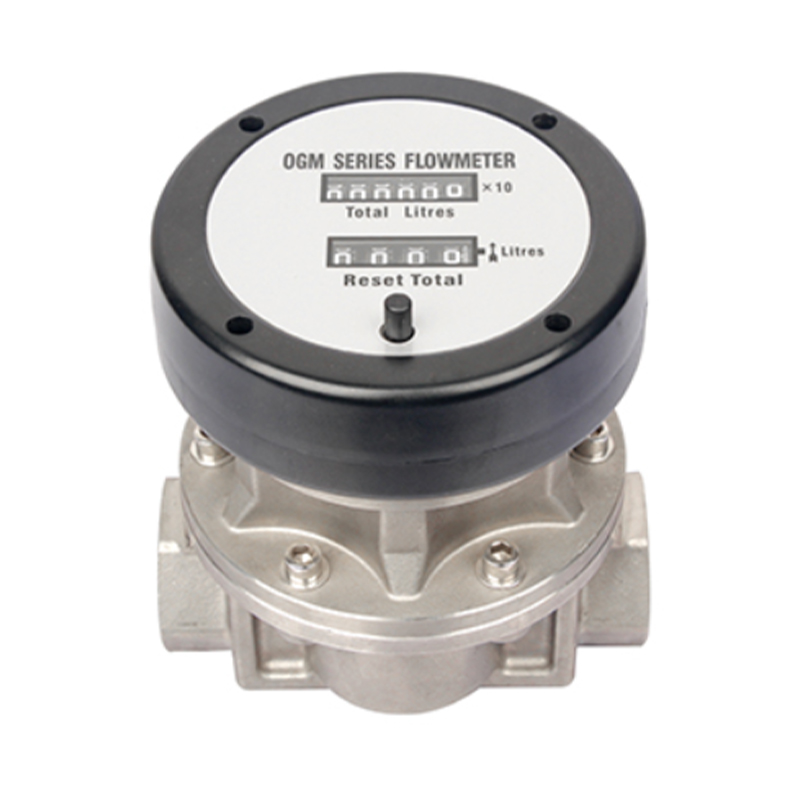

OGM-25X-SS Stainless Steel Mechanical Oval Gear Flow Meter
OGM-15M Mechanical Oval Gear Flow Meter
Features:
Fully mechanical design, no external power required
Clear and direct dial reading
Strong resistance to environmental interference
Simple structure, low maintenance cost
Suitable for harsh working conditions
Typical Applications:
Diesel fueling equipment, mobile fuel tanks, construction machinery refueling, manual lubrication oil dispensing systems.
2.2 Electronic Oval Gear Flow Meters
Representative Models:
OGM-XXE Series Electronic Oval Gear Flow Meters
OGM-15E Electronic Oval Gear Flow Meter

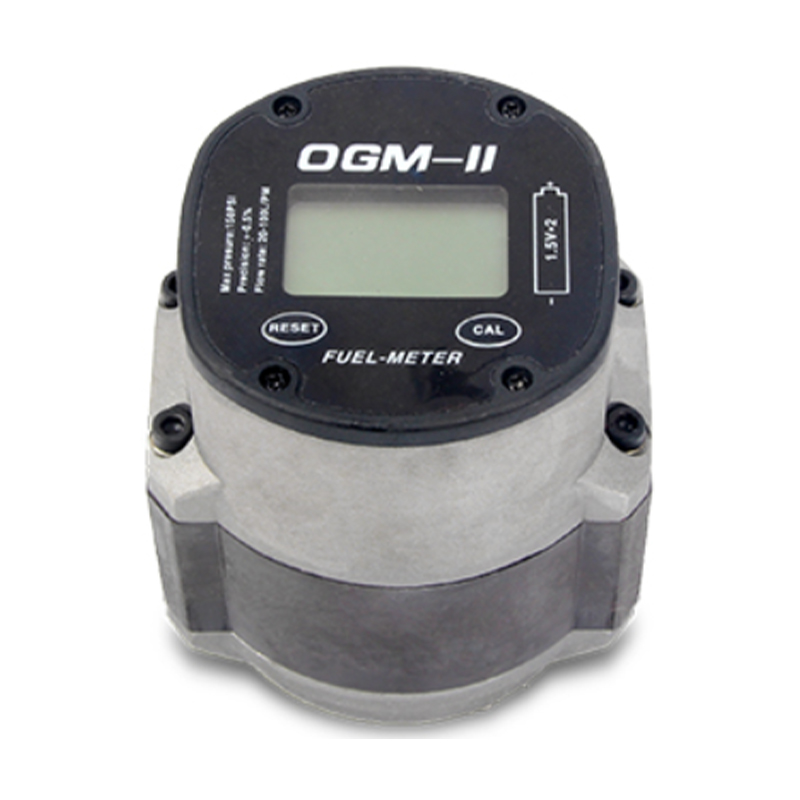

OGM-II Series Oval Gear Flow Meters
Features:
Electronic LCD / digital display
Displays instantaneous flow rate and totalized volume
Higher resolution and improved data stability
Suitable for applications requiring precise monitoring
Applications:
Automated fueling systems, industrial flow monitoring, liquid management systems.
2.3 Oval Gear Flow Meters with Pulse Output
Representative Models:

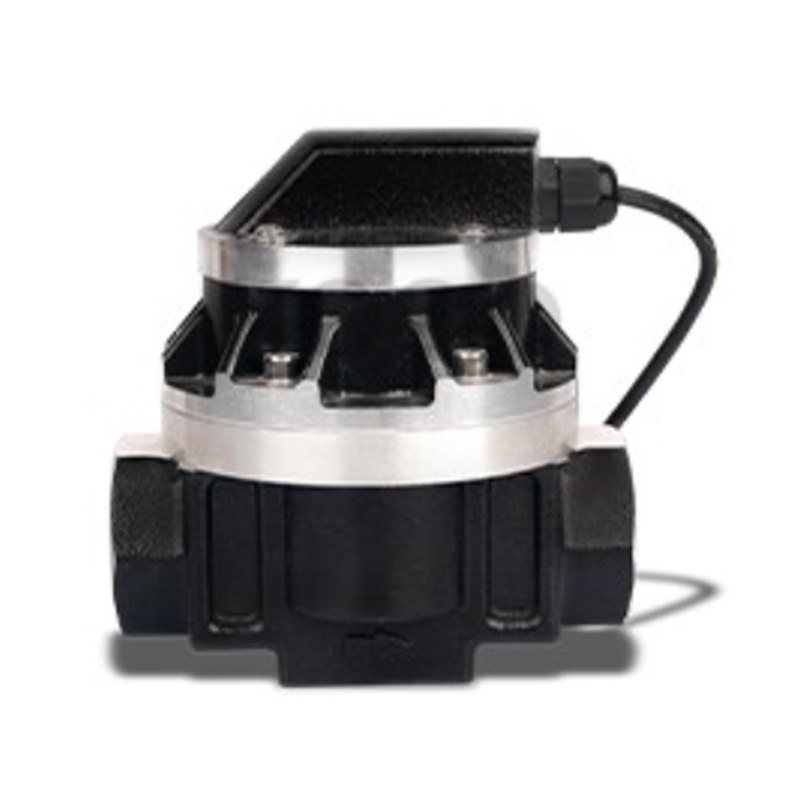

OGM-XXP Series Oval Gear Flow Meters
Advantages:
Standard pulse signal output
Easy integration with PLC, flow controllers, and data acquisition systems
Supports remote monitoring and automated control
Ideal for industrial automation applications
2.4 Electronic Preset Oval Gear Flow Meters
Representative Models:

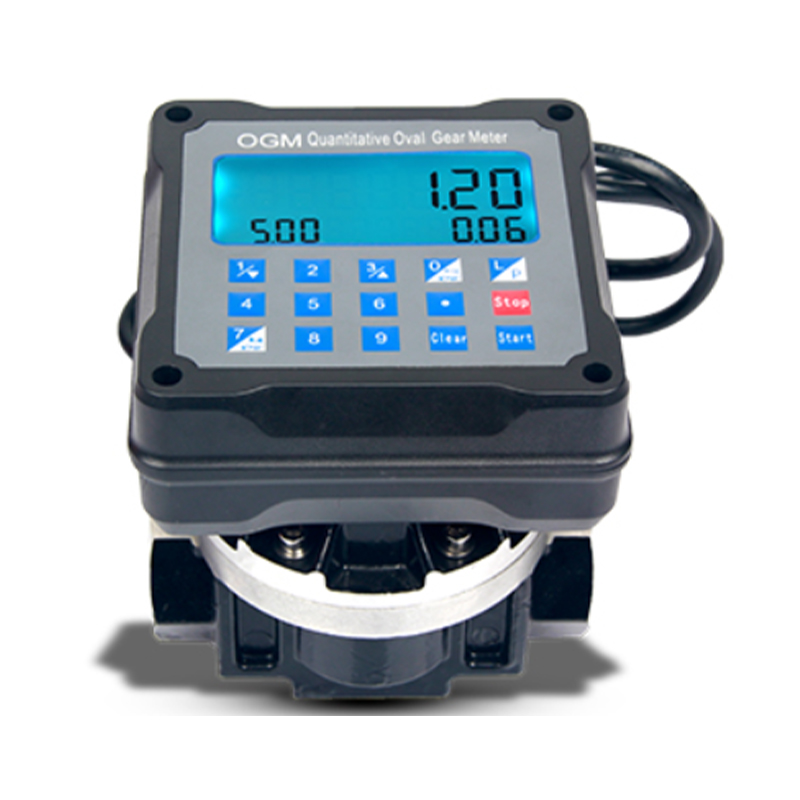

OGM-XXQ Series Electronic Preset Oval Gear Flow Meters
OGM-25Q Slim Aluminum Body Electronic Preset Oval Gear Flow Meter
OGM-25Q Slim Plastic Body Electronic Preset Oval Gear Flow Meter
OGM-25Q Slim Stainless Steel Body Electronic Preset Oval Gear Flow Meter
Key Functions:
Preset target dispensing volume
Automatic stop or valve control when preset volume is reached
Prevents overfilling and operational errors
Improves dispensing efficiency and safety
Typical Applications:
Fuel dispensing systems, lubricating oil filling equipment, chemical liquid filling and batching lines.
2.5 Electronic Preset Waist Wheel Flow Meter
Representative Model:

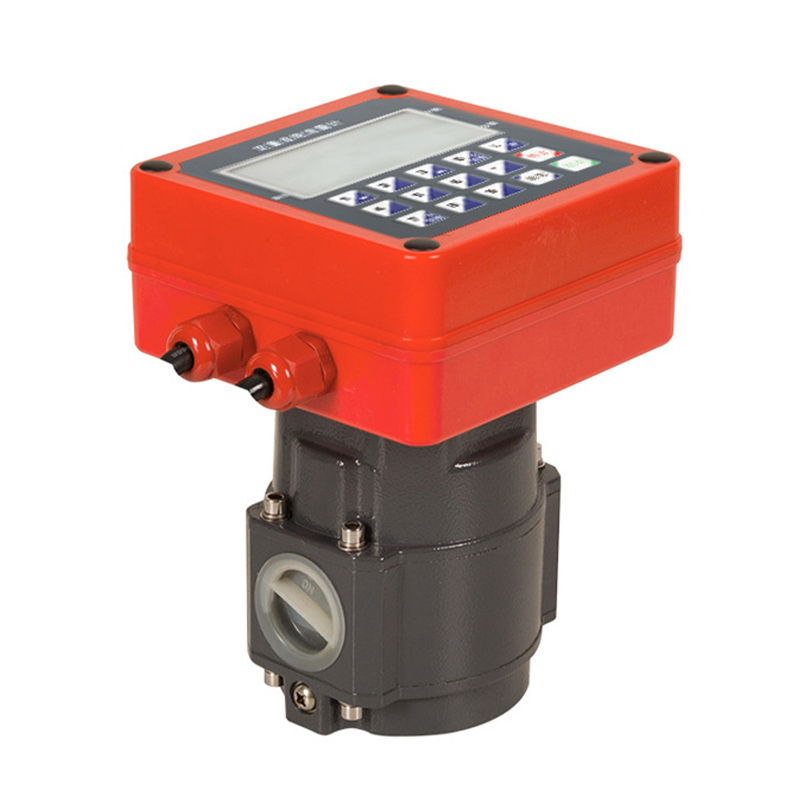

WWM-25Q Aluminum Body Electronic Preset Waist Wheel Flow Meter
This model is suitable for applications requiring fast response, compact design, and reliable preset control in fuel and liquid dispensing systems.
3. Housing Materials and Fluid Compatibility
Aluminum Alloy: Suitable for diesel, gasoline, kerosene, and other non-corrosive fuels
Stainless Steel: Suitable for chemical liquids, solvents, water-based fluids, and corrosive media
Engineering Plastic: Suitable for light oils, laboratory applications, and portable metering equipment
4. Typical Applications
The OGM Series Oval Gear Flow Meters are widely used in:
Tank truck loading and unloading systems
Fuel stations and mobile fueling units
Lubricating oil and hydraulic oil dispensing
Petrochemical production and transfer
Industrial fuel measurement and control systems
5. Why Choose OGM Series Oval Gear Flow Meters
Complete model range covering mechanical, electronic, and preset types
High cost-performance ratio with versatile interface options
Proven design with stable long-term operation
Easy maintenance and interchangeable spare parts
OEM and customized solutions available
