Mechanical & Pneumatic Control Parts

Mechanical and pneumatic control parts are essential components of tank truck bottom valve systems, providing precise and reliable control for loading and unloading fuels, chemicals, and other liquid cargos. These components ensure operational safety, minimize risks, and maintain system stability under demanding conditions. Leading manufacturers such as EMCO Wheaton and Civacon are renowned for the durability, reliability, and international standard compliance of their control solutions.

Role of Mechanical & Pneumatic Control Components in Tank Truck Operations

These control components are used to operate bottom valves, perform emergency shutdowns, and manage interlocks. Through mechanical or pneumatic actuation, operators can control tank loading and unloading from safe locations, ensuring safe and efficient liquid transfer while meeting environmental and operational regulations.

Core Components and Functions

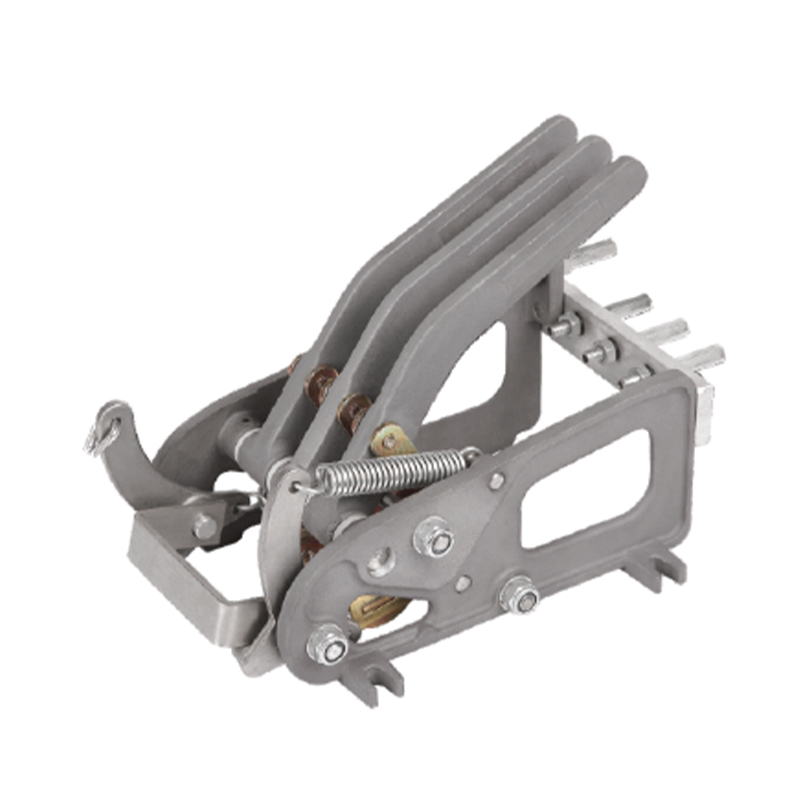

Manual Control Brackets and Hand Levers

HBSZJ Series – Manual Control Bracket

HBLG-01 – Hand Lever for Controlling Manual Bottom Valve

Manual control brackets and hand levers provide operators with a reliable mechanical interface for precise valve operation. Ergonomically designed to reduce physical strain, these components are made of corrosion-resistant materials suitable for long-term industrial use.

Discharge Control Cables

HBLZ Series – Discharge Cable for Controlling Manual Bottom Valve

HBLS-01 – Discharge Cable for Controlling Manual Bottom Valve

Discharge control cables transmit operator input to the bottom valve, enabling remote actuation. High-quality cables ensure smooth operation, wear resistance, and precise control, reducing the risk of accidental spillage or operational failure.

Air Interlocks and Safety Devices

HBC803F-01 / HBC803F-02 – Air Interlock for Vapor Recovery Adaptor

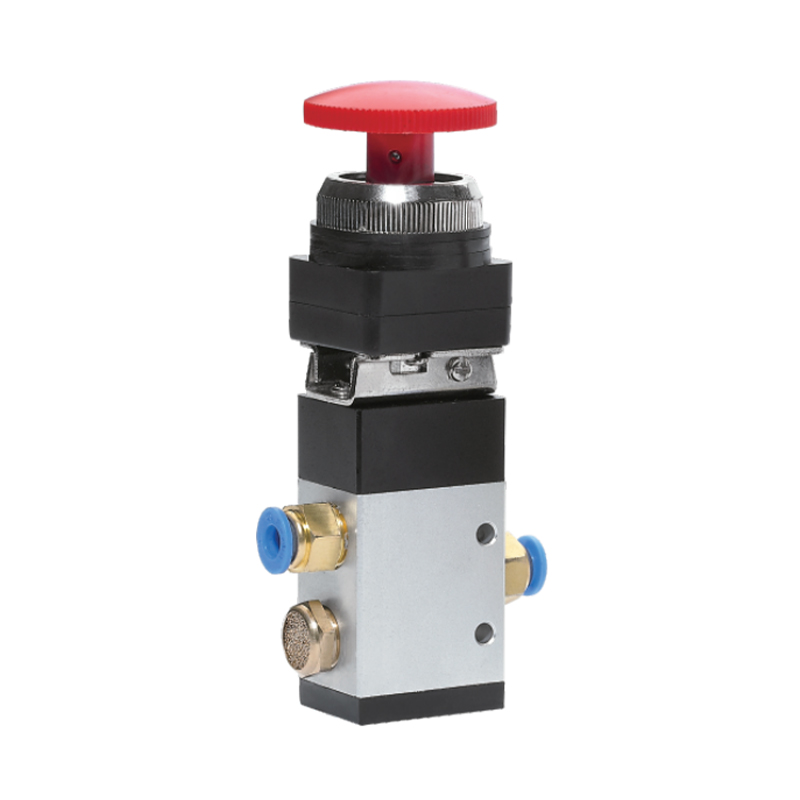

HBQAN-01 – Emergency Button

HBSL-01 / HBSL-02 – Push & Pull Buttons

Air interlocks and safety devices provide fail-safe operation and prevent valve misoperation. These components work in conjunction with vapor recovery systems, ensuring smooth and safe loading and unloading. Emergency and push-pull buttons allow rapid response to abnormal conditions, protecting both personnel and equipment.

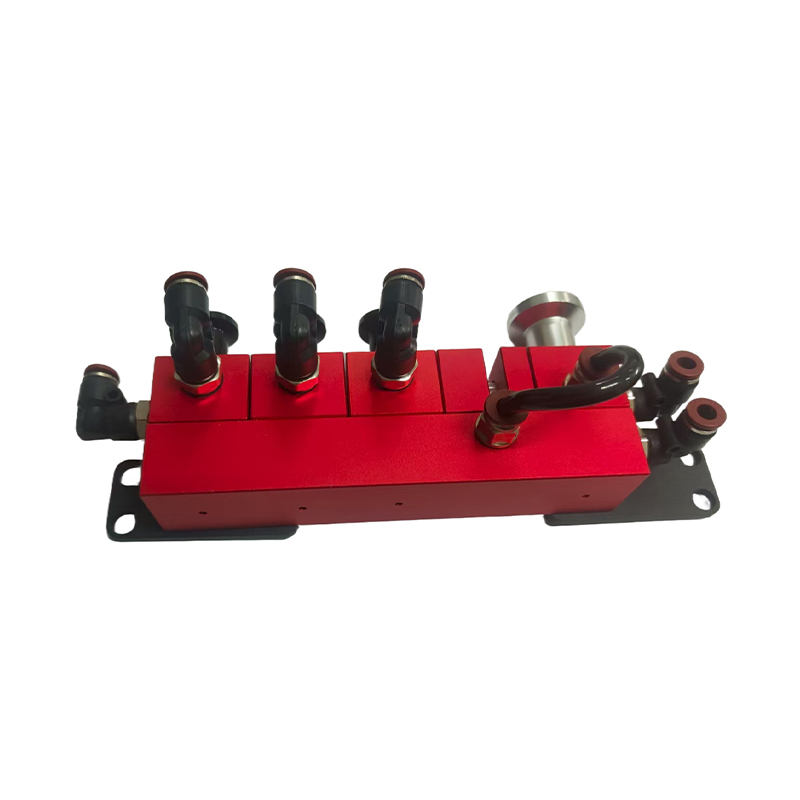

Combination Switches

HBCS103-2 – 2-Button Combination Switch

HBCS104-4 – 4-Button Combination Switch

HBCS105 Series – Multi-Button Combination Switches

Combination switches integrate multiple control functions into a single interface, allowing operators to efficiently manage valve actuation, pneumatic interlocks, and auxiliary systems. Modular design facilitates flexible installation and easy maintenance.

Oil-Water Separator and Electrostatic Devices

HBJD-01 – Electrostatic Conductive Rubber Belt

HBQYS-01 – Oil-Water Separator

The electrostatic conductive belt prevents static buildup, reducing the risk of sparks during pneumatic operation and fuel transfer. The oil-water separator removes water and impurities from pneumatic lines, ensuring reliable operation of pneumatic bottom valves, protecting equipment, and maintaining smooth, safe operation.

Design, Materials, and Reliability

Mechanical and pneumatic control components are engineered for durability, safety, and long-term reliability:

Corrosion-resistant aluminum and stainless steel bodies

High-strength, wear-resistant cables and linkages

Chemically resistant seals and insulating materials

Ergonomic design for safe and easy operation

These design features ensure stable performance under extreme temperatures, high flow rates, and continuous operation, while simplifying maintenance and inspection.

Typical Applications

Manual and semi-automatic tank truck bottom valve systems

Fuel and chemical terminal loading/unloading

Integration with vapor recovery and emission control systems

Fleet centralized refueling systems

Emergency shutdown and safety control points

Whether for highway fuel distribution, industrial chemical transport, or bulk storage operations, mechanical and pneumatic control parts enhance operational safety, efficiency, and regulatory compliance.

Advantages of Choosing Industry-Leading Components

Selecting products from top manufacturers such as EMCO Wheaton or Civacon ensures:

Precise and reliable bottom valve control

Durable, corrosion- and wear-resistant materials

Ergonomic and safe operation

Seamless integration with vapor recovery and pneumatic interlock systems

Compliance with international standards and industry best practices

These advantages make mechanical and pneumatic control components the preferred choice for tank truck operators prioritizing safety, efficiency, and operational reliability.
