Modular Pneumatic Combination Control Switch for Tank Truck Loading & Unloading Safety
During the loading and unloading of petroleum products and chemicals, tank trucks rely on multiple pneumatic valves and safety components working together. Any operational mistake in this process may lead to serious safety risks. For this reason, a stable, intuitive, and reliable centralized control system has become an essential safety configuration for modern tank trucks.
The HBCS Series Pneumatic Combination Control Switch is a professional solution specifically designed for centralized control of multiple pneumatic systems on tank trucks. By integrating several control buttons into one modular unit, this system allows operators to manage multiple pneumatic actuators efficiently. It enables simultaneous or sequential control of bottom valves, loading and unloading connections, vapor recovery systems, and other critical components, while also supporting remote emergency shut-off functions.
In different global markets, this type of product is known by various industry names. In Europe, it is commonly referred to as a tank truck pneumatic control panel. In North America, it is often called a multi-circuit pneumatic safety control switch. In the Middle East and terminal loading facilities, it may be described as a loading and unloading interlock control unit. In China and many Asian markets, it is widely known as a pneumatic combination switch or multi-button pneumatic control box. Although the names vary, the core purpose remains the same: to ensure that loading and unloading operations can only be performed when all safety conditions are met through centralized and interlocked control logic.
The HBCS series adopts a modular design concept, allowing the number of control buttons to be configured according to vehicle requirements. From single-button to multi-button configurations, the system can be customized to match standard tank trucks as well as special vehicles with multiple compartments or complex control systems. All control circuits operate under a series interlock logic, ensuring that loading or unloading actions can only be initiated when air pressure and system status meet predefined safety conditions, significantly reducing the risk of misoperation.

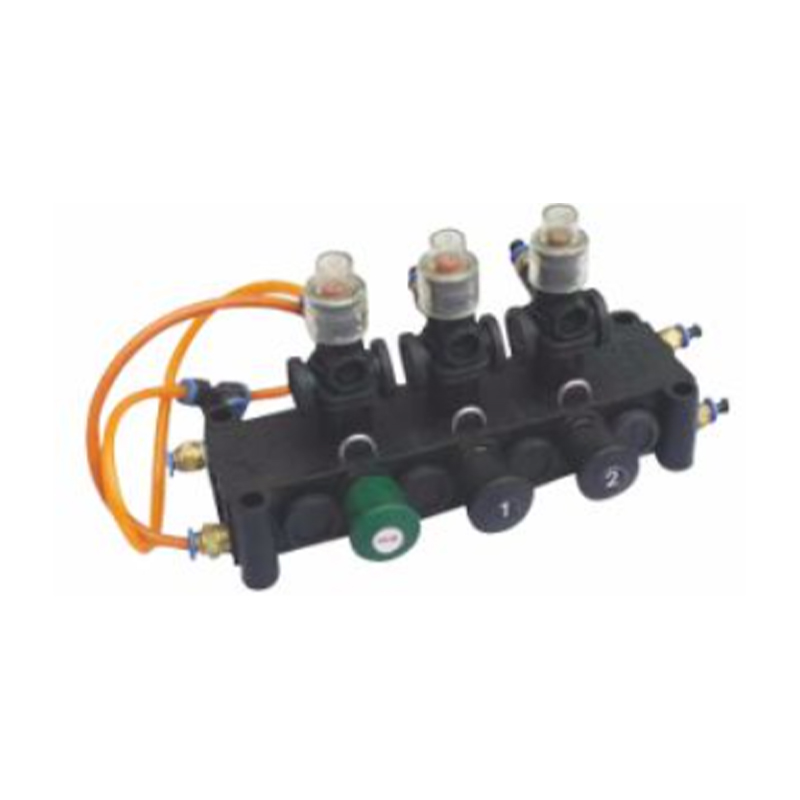

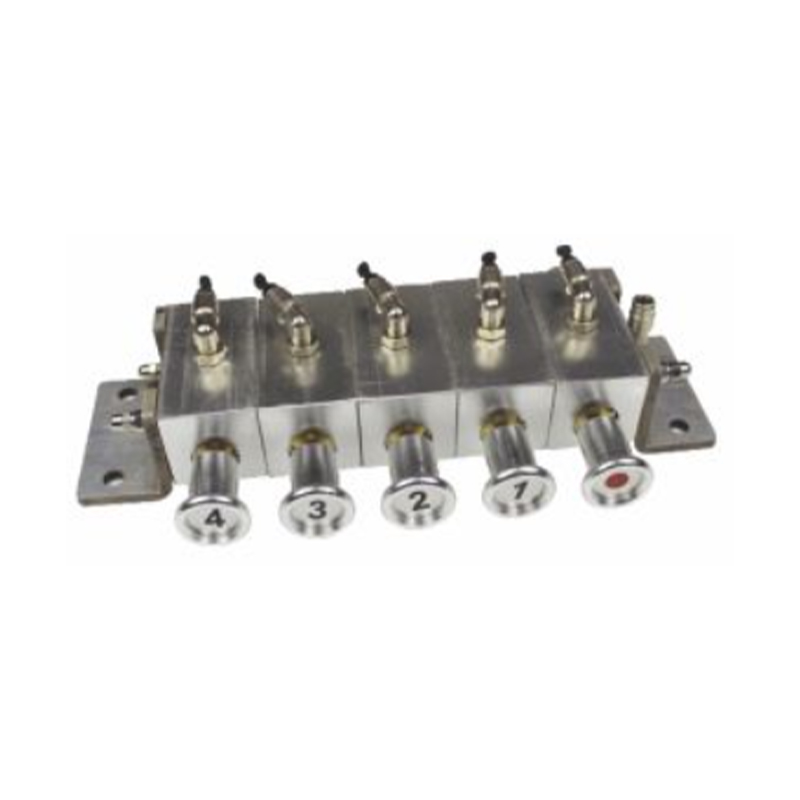

In terms of structural design, the product is available with engineering plastic or aluminum alloy housings, balancing lightweight construction with mechanical strength. The compact design minimizes installation space and allows easy mounting on the vehicle side panel or inside an operation cabinet. Selected models are equipped with visual status indicators, enabling operators to quickly confirm whether the system is in a ready-to-operate condition, improving both safety and operational efficiency on site.
When air supply pressure drops below the required level, the combination control switch automatically locks the system to prevent unintended valve operation and air leakage. This self-protection feature is particularly critical during loading and unloading operations, effectively preventing system failure caused by unstable air supply.

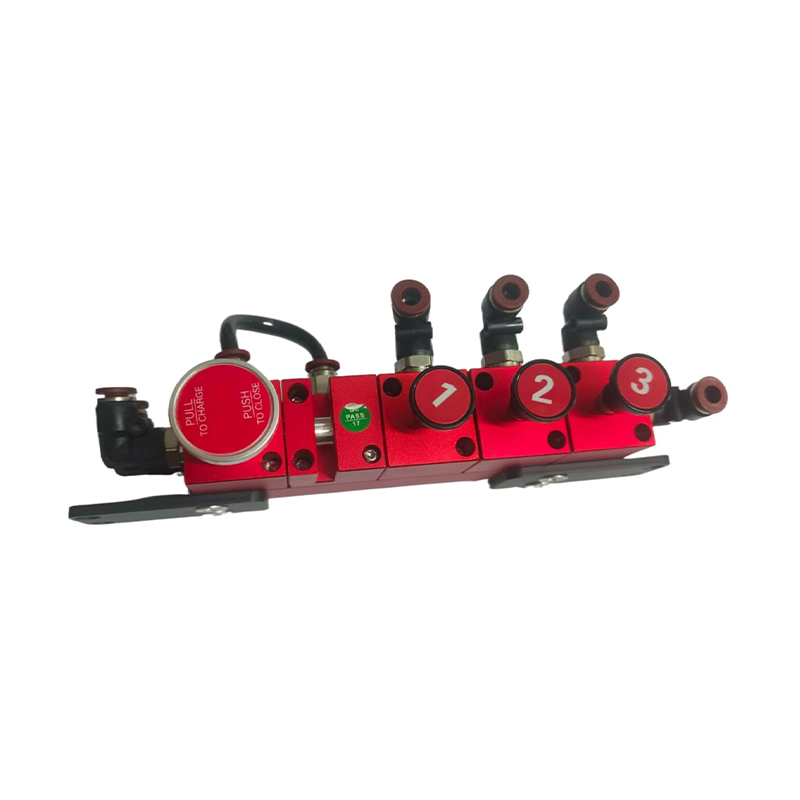

Building on this foundation, the HBCS105 series further enhances durability and environmental adaptability. Its aluminum alloy body is surface-treated for corrosion resistance and weather durability, making it suitable for long-term use in high-temperature, cold, or high-humidity environments. The separated main control and sub-control structure provides clearer control logic for complex systems and is especially well suited for tank trucks and chemical transport vehicles with high-frequency loading and unloading operations.
By integrating multiple pneumatic control functions into a single combination control unit, the HBCS series simplifies operational procedures while significantly improving the overall safety level of tank truck loading and unloading systems. As a result, it has become a widely adopted pneumatic safety control component in the global petroleum and chemical transportation industry.
