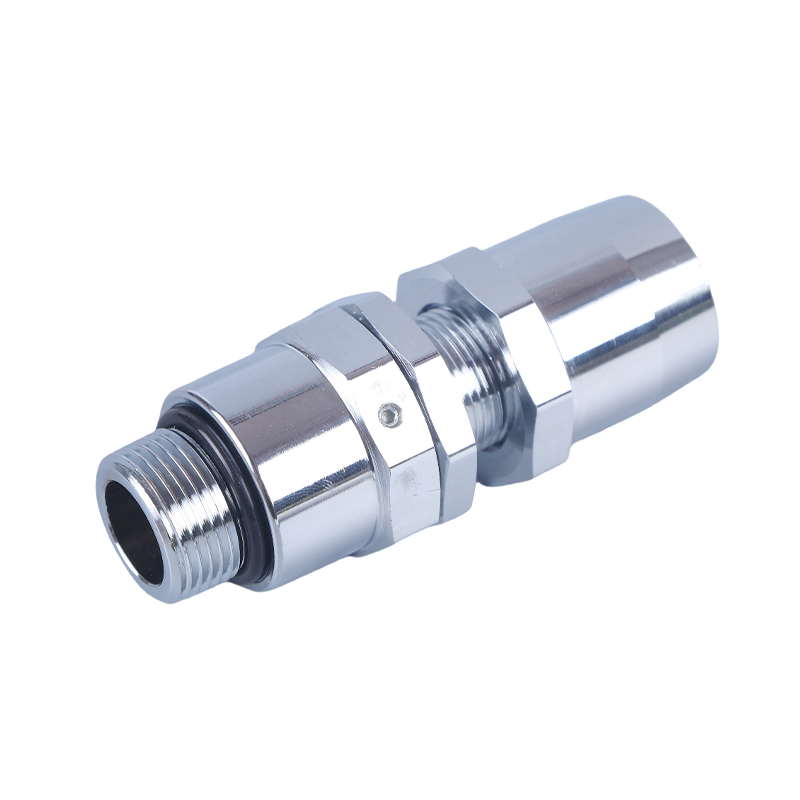

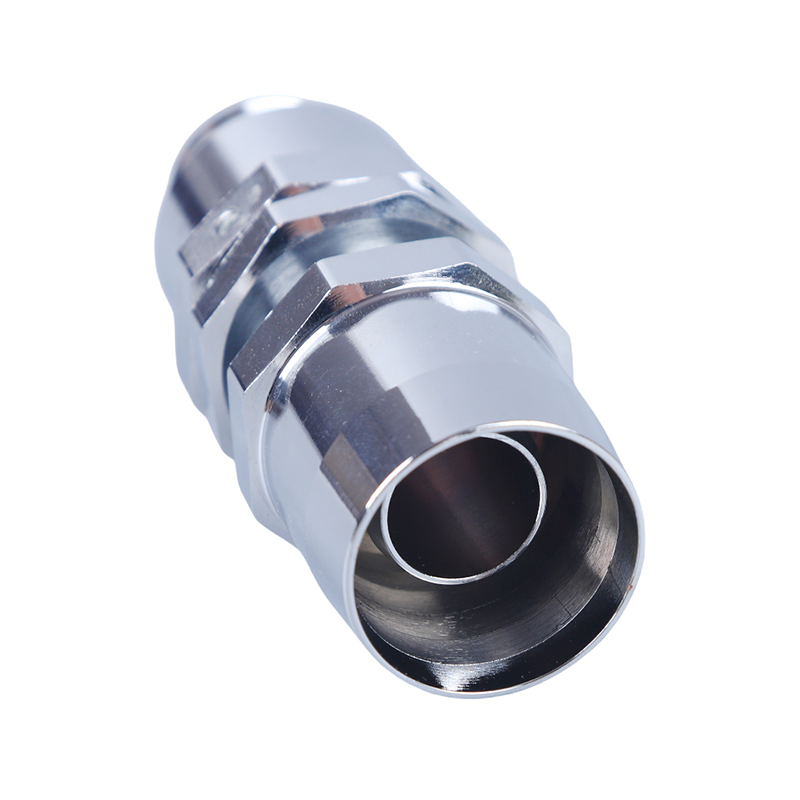

Heavy-Duty Thick Brass Hose Swivel

Heavy-Duty Thick Brass Hose Swivel – Industrial Fuel Transfer Solution

The HBJGH Series is a heavy-duty, thick brass hose swivel specifically engineered for demanding fueling environments. Designed for installation between fuel hoses and nozzles or other equipment, it provides smooth 360° rotation, reducing physical strain on both the hose and operator. The full-circle swivel ensures precise alignment with fill pipes, improving operational efficiency while extending hose service life.

Global Naming Variations – The International Language of Swivels
Around the world, this product is known by various names:

North America: Heavy-Duty Fuel Hose Swivel / Industrial Swivel Coupler

Europe: Rotationskupplung für Kraftstoffschläuche / Brass Swivel Connector

Asia: High-Strength Fuel Hose Swivel / Industrial Hose Swivel Connector

South America: Acoplador giratorio de manguera de combustible / Conector giratorio de latón

Middle East & Africa: Swivel Coupler / Brass Hose Rotator

Regardless of the name, the core functionality remains the same — reliable rotation and leak-free performance under high-pressure and frequent-use conditions.

Technical Highlights
High-quality brass construction for superior strength and durability
Chrome-plated surface resists corrosion and chemical damage
Reinforced structure designed to withstand industrial pressure and mechanical stress
Precision-machined components allow disassembly for inspection, cleaning, or maintenance
Available with Buna-N or Viton O-rings for versatile operational conditions

Sizes and Compatibility
Suitable for hoses from 3/4” to 1.5”
BSPP/NPT thread standards compatible with global fueling systems
Multiple size options to meet diverse fuel transfer needs

Applications
Fuel stations and tanker refueling systems
Industrial fuel hose extensions
Petrochemical and lubricant transfer lines

Key Advantages
Reinforced design for high-pressure and frequent-use durability
Smooth 360° swivel reduces hose twisting and wear
Chrome-plated surface prolongs service life
Easy assembly and disassembly for convenient operation

  • Specification
  • Contact Us

HBJGH Series of Hose Swivels are designed for use between the hose and fuel nozzle, or between the hose and other equipment. They provide 360 swivel action. The full-circle swivel reduces the physical strain of aligning the nozzle with fill-pipe.

Technical Specifications:
Body Material: High-quality Brass
Bushing(male thread): High-quality Brass
Surface Treatment: Electroplated Chrome Finish for
corrosion resistance and a professional appearance
Design: Reinforced structure for improved strength and durability under pressure
O-ring: Buna-N or Viton for option

Ordering Specification (Suitable for HG-T 3037 Standard Fuel Hose)

Item Number Male Thread Sizes & Standard Suitable for Hose ID x OD(mm)
HBJGH-3/4 BSPP/NPT 3/4 inch Male 3/4” Hose 19 x 30
HBJGH-3/4-1 BSPP/NPT 3/4 inch Male 1” Hose 25 x 37
HBJGH-1-3/4 BSPP/NPT 1-inch Male 3/4” Hose 19 x 30
HBJGH-1 BSPP/NPT 1-inch Male 1” Hose 25 x 37
HBJGH-1.2 BSPP/NPT 1.2 inch Male 1.2” Hose 32 x 44
HBJGH-1.5 BSPP/NPT 1.5 inch Male 1.5” Hose 38 x 50



Applications:
Fuel stations and tanker refueling systems
Industrial fuel hose extensions
Petrochemical and lubricant transfer lines

Key Features:
High mechanical strength and longevity
Chrome-plated surface for excellent chemical and corrosion resistance
Easy assembly and disassembly
Secure connection with minimal pressure drop

Disassembled photos: The swivel consists of multiple precision-machined components that ensure tight sealing and mechanical stability. Each unit can be disassembled for inspection, cleaning, or maintenance if necessary.

Packing:
1” Hose Swivel:
29cm x 29cm x 23cm
50 Pcs/Carton
29.5 Kg/Carton

3/4” Hose Swivel:
25cm x 25cm x 23cm
50 Pcs/Carton
22.7 Kg/Carton

Packing:
1.5” Hose Swivel:
37cm x 29.5cm x 26cm
20 Pcs/Carton
28.3 Kg/Carton

1.2” Hose Swivel:
37cm x 29.5cm x 26cm
20 Pcs/Carton
24 Kg/Carton
