High Flow Aluminum Body Double Plane Swivels

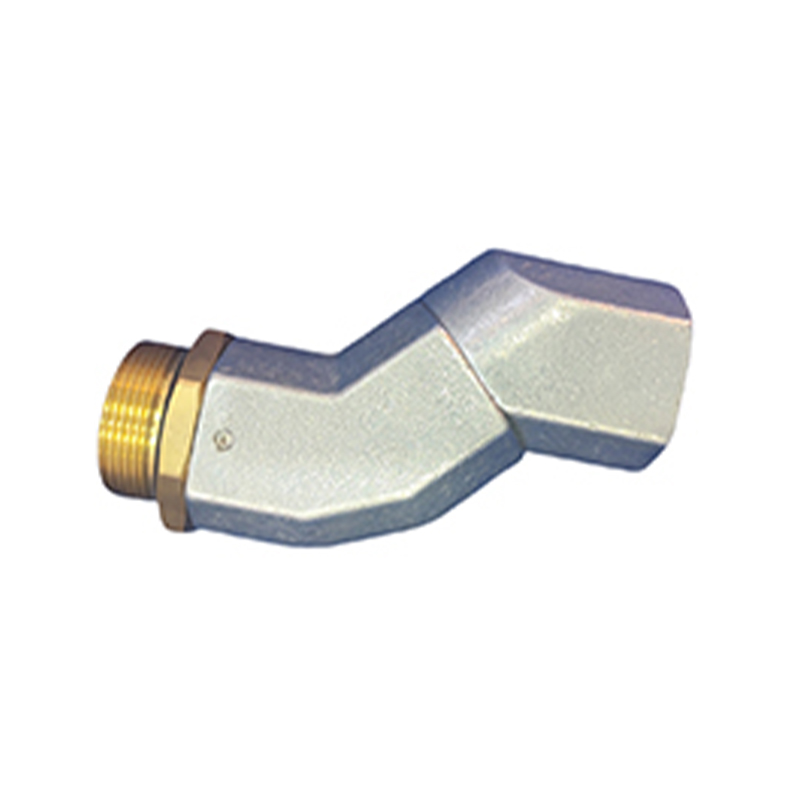

HBB45-AL Series High Flow Aluminum Body Double Plane Swivels

Designed for Large-Diameter Fueling Systems, Enhancing Efficiency and Durability
The HBB45-AL series swivels are engineered using advanced technology for high-flow 1.5-inch fuel pumps and hose assemblies. Installed between the hose and high-flow nozzle, these swivels effectively reduce hose strain, prevent unnecessary wear, and maintain hose flexibility, extending service life. The aluminum body is lightweight, corrosion-resistant, and visually appealing, making it ideal for self-service fueling stations, fleet refueling, and industrial fueling systems.

Global Names and Terms
Depending on regional preferences and industry terminology, this type of high-flow swivel is known by different names worldwide:
Europe: High-flow fuel swivel, large-diameter swivel, aluminum hose connector
North America: Heavy-duty double-plane swivel, high-capacity fuel swivel, 1.5-inch hose swivel
Middle East and Africa: Large-flow aluminum swivel, hose adapter swivel
South America and Asia: Fuel high-flow swivel, double-plane swivel, large-diameter hose connector
Although names vary, the functionality is consistent: smooth rotation, reduced hose twisting, and stable, high-flow refueling.

Technical Specifications
Maximum Flow Rate: 260 L/min for a 1.5-inch diameter
Body Material: Aluminum
Inlet: Aluminum
Outlet: Brass
Seal Options: Buna-N or Viton
Maximum Working Pressure: 3.45 bar

Key Features
Suitable for gasoline, diesel, and fuel blends containing up to 10% ethanol
Compact and sleek design for a modern appearance
Optimized high-flow performance with minimal restriction for faster fueling
Unique double-plane rotation for easy nozzle positioning and extended hose life
Lightweight, corrosion-resistant aluminum body for comfort and durability
Maximum pressure up to 3.45 bar, ensuring safety and reliability

Packaging Information
1.5-inch Swivel: 37 cm × 26 cm × 26 cm, 50 pcs/carton, 25.4 kg/carton

Applications
High-flow self-service fueling stations
Industrial and commercial high-capacity refueling points

Fleet fueling systems
Locations requiring double-plane rotation to prevent hose twisting
Large-diameter fuel distribution systems

Why Choose HBB45-AL Series
The HBB45-AL series is a high-performance aluminum double-plane swivel designed for large-diameter fuel systems. With its aluminum construction, dual-plane rotation, and high-flow capability, this series enhances fueling efficiency, prolongs hose life, and ensures safe, stable fuel delivery. Whether in Europe, North America, Asia, or South America, it provides a reliable and efficient solution for demanding fueling applications.
