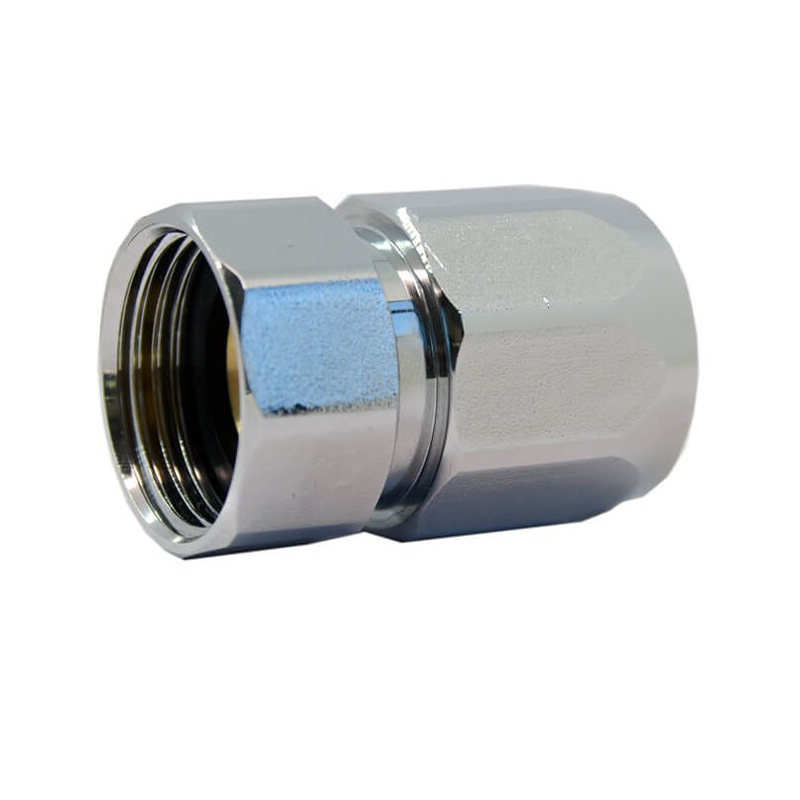

Inspection-Window Brass Hose Coupling for 1” Fuel Hose
Product Overview
In modern fuel handling systems, larger hose diameters demand more than just strength—they require certainty. The FGM-25-XX Series brass hose coupling is engineered specifically for 1-inch petrol hoses, offering installers a higher level of control, verification, and long-term reliability in demanding fuel dispensing environments.
Around the world, professionals refer to this type of coupling in different ways. In Germany and much of Europe, it is often recognized as a DIN-style fuel hose tail. In the UK and Australia, it may be called a 1” fuel hose ferrule coupling. In the Middle East and Africa, installers commonly refer to it as a brass petrol hose connector. Across Asian markets, it is frequently described as a fuel hose end fitting with inspection window. Despite the varied terminology, all markets rely on it for one essential task: a secure, verifiable hose termination for fuel transfer applications.
Assembly Confidence Through Visual Control

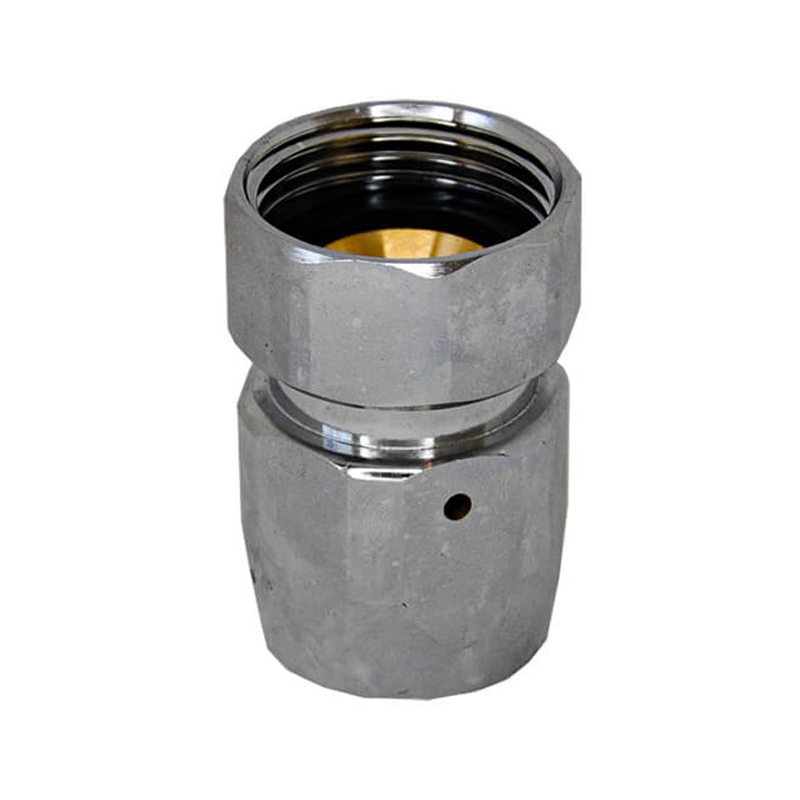

What truly differentiates the FGM-25-XX Series from conventional hose fittings is its inspection opening integrated into the hose ferrule. During assembly, technicians can visually confirm that the hose has reached the correct insertion depth before final tightening. This feature minimizes the risk of partial insertion—one of the most common causes of leakage and premature failure in large-diameter fuel hoses.
For high-flow petrol systems, this visual verification is not a convenience; it is a safety advantage.
Reinforced Inner Design for Professional Installation

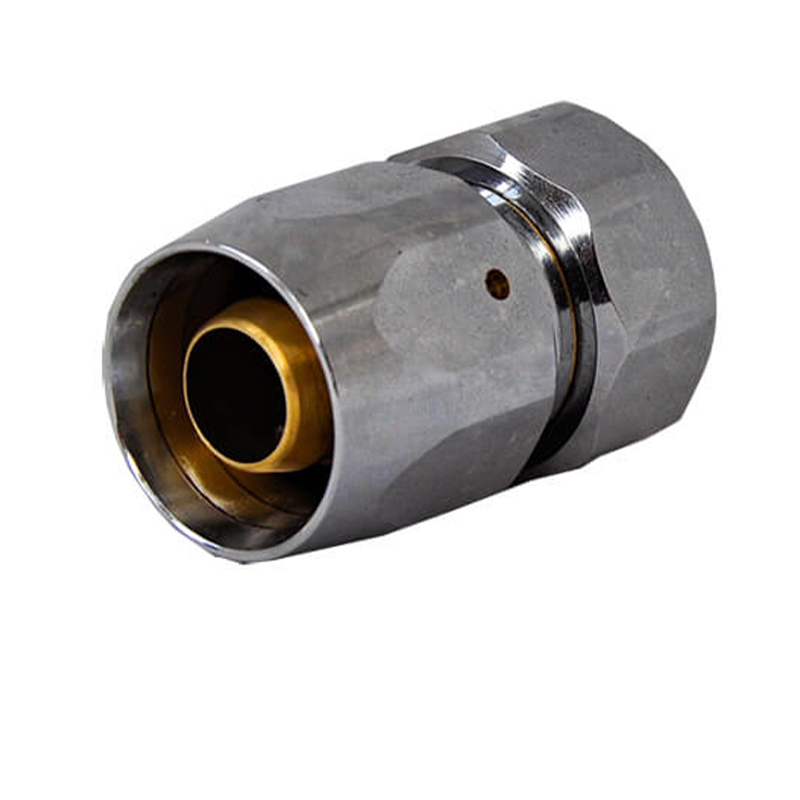

Inside the coupling, the inner core hose shank is formed with dual internal reinforcing ribs. These ribs serve two important purposes. First, they enhance structural rigidity, helping the coupling maintain integrity under pressure and repeated use. Second, they allow installers to use a special internal wrench during assembly.
This internal assembly method prevents external tool contact with the chrome-plated surface, effectively protecting the anti-corrosion coating from scratches or peeling—an often-overlooked factor in long-term durability.
Adapted for Global Hose Standards
Fuel hose specifications vary widely between countries. Even when the inner diameter is standardized at 25 mm, the outer diameter may differ depending on hose construction and regional norms. The FGM-25-XX Series addresses this reality with customizable hose ferrules, ensuring proper crimping and secure retention across different hose ODs.
Available with BSPP G1” and G1.25” female threads, this series integrates easily into international fuel systems, making it a preferred choice for export-oriented fuel stations, OEM equipment suppliers, and professional hose assembly workshops.
Material Performance Built for Fuel Environments
Manufactured from high-grade brass with a chrome-plated finish, the coupling offers strong resistance to petrol, chemical exposure, and environmental corrosion. Combined with optional Buna-N or Viton gaskets, it delivers stable sealing performance with minimal pressure drop, even in continuous-duty fuel dispensing applications.
Why This Coupling Is Chosen Worldwide
The inspection window enables accurate hose insertion verification
Reinforced internal structure improves strength and service life
Internal wrench assembly protects chrome-plated surfaces
Compatible with multiple thread sizes and regional hose standards
Designed for petrol, fuel transfer, and LPG-related systems
Typical Applications
High-flow fuel dispensing systems
Petrol and LPG hose assemblies
Industrial fuel transfer lines
International fuel infrastructure projects
Professional hose manufacturing and assembly facilities
