OPW type Hex-Body Zinc-Clamp Fuel Breakaway Coupling

Hex-Body Zinc-Clamp Fuel Breakaway Coupling for Gasoline Dispensing Systems

Product Description (Google Promotion Style)

Safety, reliability, and ease of installation are essential in fuel dispensing operations. The HBBR-H Series Fuel Breakaway Couplings are expertly engineered to protect hoses, nozzles, and dispensing equipment during unintentional pull-away events. These innovative breakaways separate under a predetermined pull force, while the dual valve mechanism instantly shuts off fuel flow, minimizing spillage and equipment damage.

Worldwide, this type of product is recognized under multiple names:

United States: Fuel Breakaway, Emergency Disconnect

UK & Commonwealth: Fuel Safety Coupler, Hose Breakaway

Europe (Germany, France, etc.): Sicherheits-Trennkupplung (Safety Breakaway Coupling)

Middle East & Africa: Brass Fuel Hose Safety Breakaway

Asia: Fuel Hose Emergency Breakaway / Safety Shutoff Coupling

No matter the name, the mission is the same: safe, rapid, and reliable disconnection during fuel transfer.

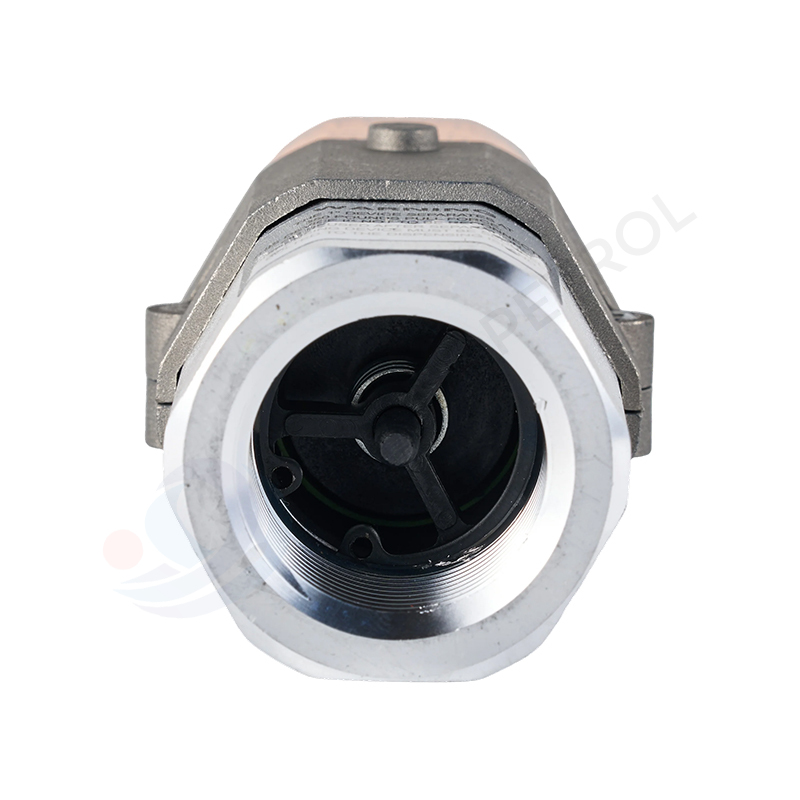

Innovative Hex-Body & Zinc Clamp Design

The HBBR-H Series is distinguished by its hexagonal body structure, providing better grip and easier handling during installation. The upper and lower halves of the body are joined by a zinc alloy clamp connector, enhancing stability and durability while simplifying assembly on-site. This design improves mechanical integrity, reduces installation errors, and increases service life in demanding fuel station environments.

HBBR-H-3/4: Breakaway at 250 lbs ±5%, requires a straightening hose ≥ 9”

HBBR-H-1: Breakaway at 300 lbs ±5%, requires a straightening hose ≥ 12”

Premium Materials for Fuel Compatibility

Body: Aluminum, lightweight and corrosion-resistant

Main Seals: Viton® or Buna-N for chemical and fuel resistance

Main Spring: Stainless steel for consistent operation

Guide and Poppet: POM engineering plastic for smooth valve movement

Protective Sleeve: PVC for additional external protection

Key Performance Features

Dual poppet design ensures reliable fuel shutoff

Flow Rate: 3/4” model 0–60 L/min, 1” model 0–120 L/min

Working Pressure: 0.18 MPa

The hexagonal body allows convenient installation

Zinc alloy clamp connector provides secure, durable assembly

Typical Applications

Gasoline and diesel fueling stations

Industrial fuel transfer systems

LPG and petrochemical fueling lines

Export-oriented fuel infrastructure projects

Workshops requiring high-safety hose assemblies

The HBBR-H Series Breakaways combine advanced safety, ergonomic installation, and reliable performance, making them an essential component for modern fuel dispensing systems globally.
