HBGL-1 Filter Base / Filter Holder / Filter Adaptor

HBGL-1 Filter Base / Filter Holder / Filter Adaptor


Product Overview:
The HBGL-1 series filter base is a precision-engineered component designed for fuel dispensing systems and liquid transfer pipelines. Manufactured from high-quality cast aluminum alloy, it provides excellent durability, corrosion resistance, and long service life. This filter base serves as a reliable mounting platform for a wide range of industrial and commercial filters. It is also referred to internationally as a filter holder, filter adaptor, or filter mounting base, depending on regional terminology.


Technical Features:

Material: High-grade aluminum alloy

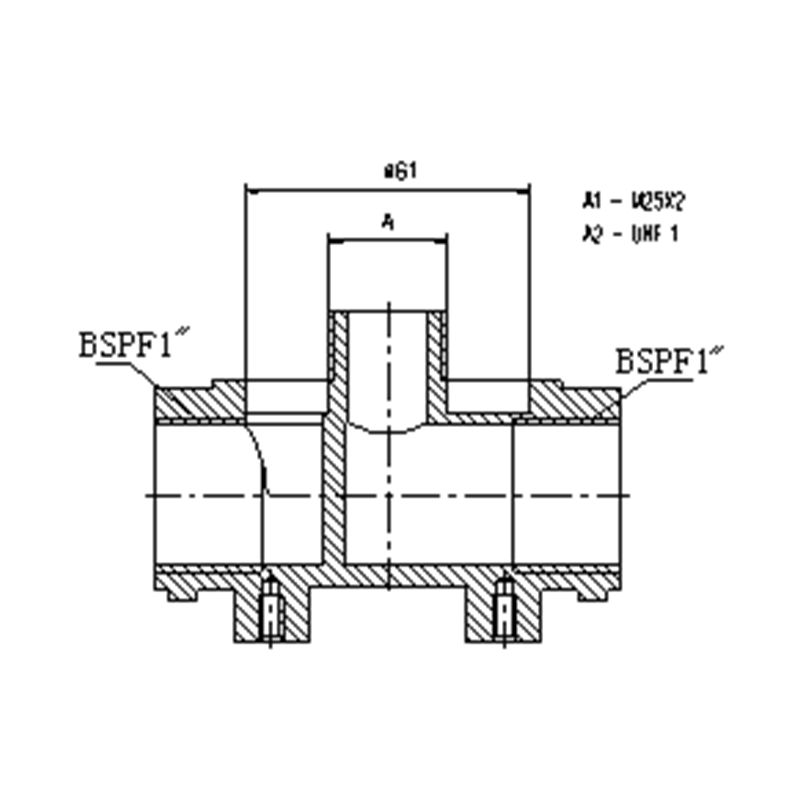

Filter Thread: UNF 1"-12

Inlet / Outlet: BSPF / NPT 1"

Package: 50 pcs per carton

Net Weight: 14 kg

Gross Weight: 15 kg

Dimensions: 330 × 310 × 230 mm


Mounting Options:

Bolt-hole mounting: Suitable for flexible hose installations, providing secure attachment while accommodating minor vibration and movement.

Non-bolt mounting: Designed for rigid pipelines, allowing direct integration into fixed piping systems without additional hardware.


Applications:
The HBGL-1 filter base is widely used in fuel dispensers, chemical transfer systems, industrial fluid pipelines, and other applications requiring reliable filtration support. Its versatile design allows easy installation and replacement of filters, ensuring smooth and uninterrupted operation of liquid transfer systems.


Global Terminology:

North America & Europe: Filter Base, Filter Holder, Filter Adaptor

France: Support de Filtre

Spain & Latin America: Base de Filtro

Germany: Filterhalterung

Asia: 滤清器底座 / 过滤器支架

This high-performance filter base ensures a stable and secure mounting solution for your filtration components, compatible with both flexible hoses and rigid piping systems worldwide.

  • Specification
  • Contact Us


Technical Specification:

Material:

Aluminum

Filter thread:

UNF 1"-12

Inlet:

BSPF/NPT1"

Outlet:

BSPF/NPT1"

Package:

50pcs/carton

Net Weight:

14Kg

Gross Weight:

15Kg

Dimension:

330×310×230mm
