High-Efficiency Energy-Saving Submersible Fuel Pump & Control System

High-Efficiency Energy-Saving Submersible Fuel Pump & Control System

In the global fuel dispensing and industrial fuel management sectors, choosing a reliable, efficient, and safe pump system is crucial for operational success. Our high-efficiency energy-saving submersible fuel pump & control system uses advanced turbocharging technology to pressurize fuel above atmospheric levels, using the pressure difference to drive fuel smoothly through pipelines to the outlet. This submersible pump is not only energy-efficient but also significantly reduces operational costs, already deployed in over ten thousand gas stations worldwide.

In different regions, this submersible pump and control system may be identified using a variety of terms, depending on language conventions and fuel station design standards. In North America and Europe, it is most commonly described as a submersible fuel pump, while in French-speaking markets it is referred to as pompe immergée pour carburant. Spanish-speaking regions, including Spain and Latin America, typically use the term bomba sumergible de combustible, and in Germany it is known as a Tauchpumpe für Kraftstoff. Across many Asian markets, the widely recognized name is 潜油泵, and in international trade documents, it may also appear as a fuel submersible pump.

Although the terminology varies across regions, all of these names refer to the same type of integrated submersible pumping and control solution designed to deliver fuel efficiently from underground storage tanks to dispensing systems.

System Components and Advantages

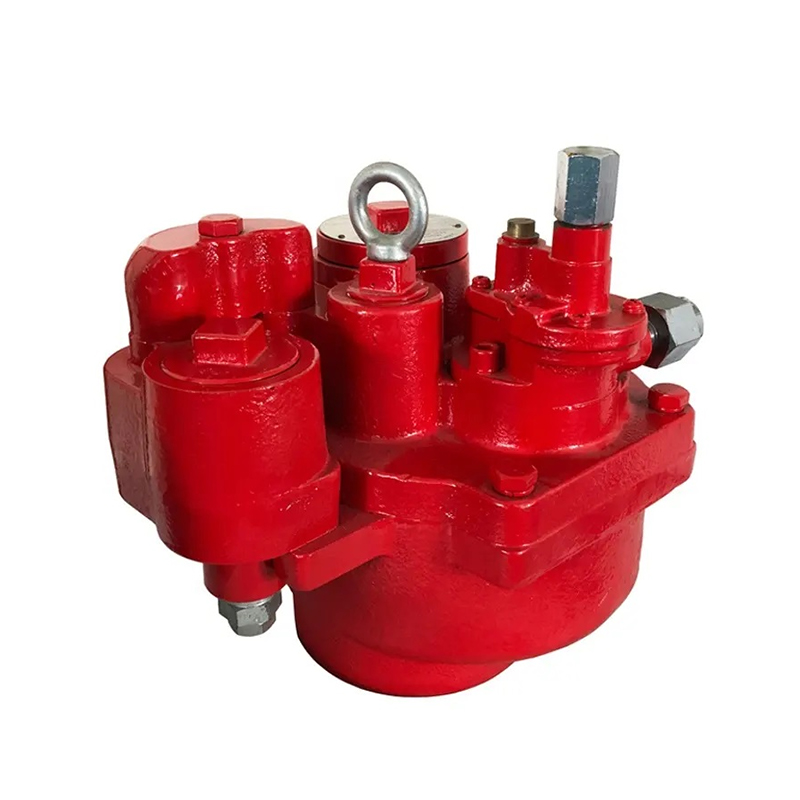

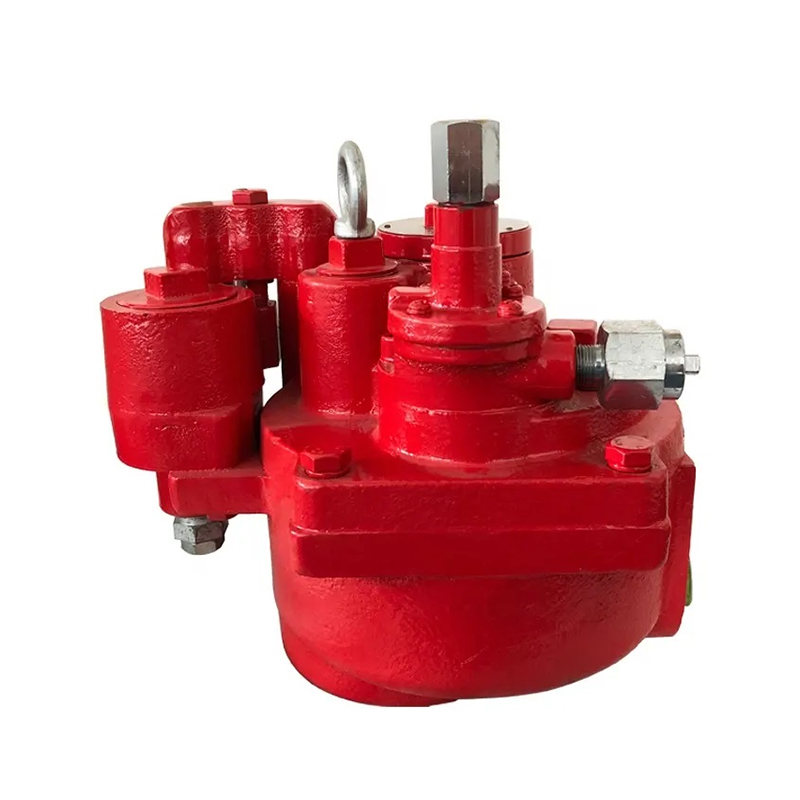

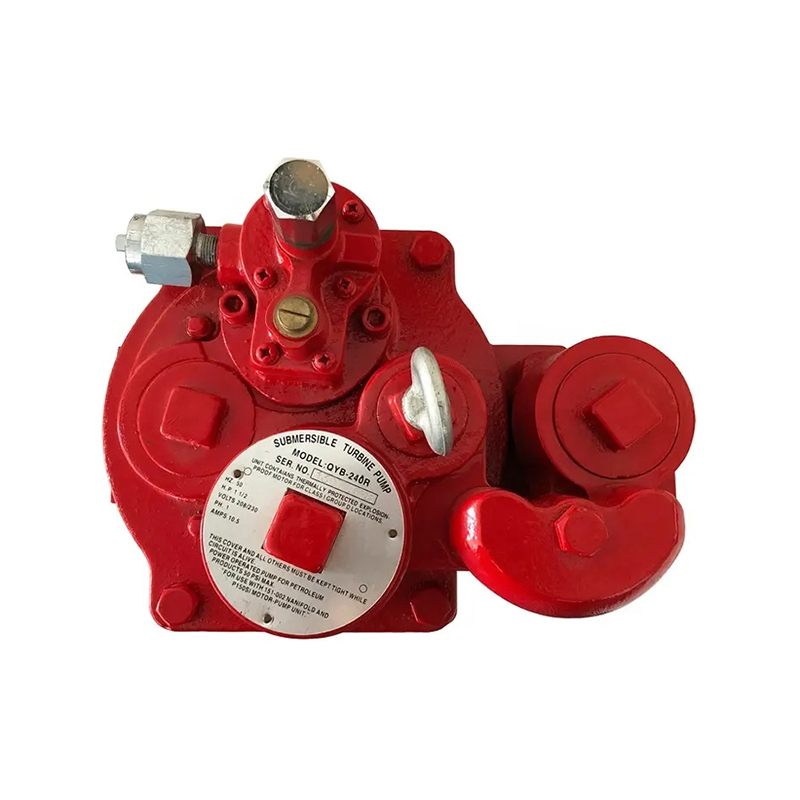

QYB-240R Series Submersible Pump

High Flow & Pressure: Flow rate 228–380 L/min (depending on power), rated pressure 0.1 MPa.

Stable High-Speed Operation: 2820 rpm, compatible with AC220V or AC380V power, 0.75–2 HP options.

Multiple Safety Features: Built-in check valve, bypass valve, and vacuum valve prevent backflow and air lock.

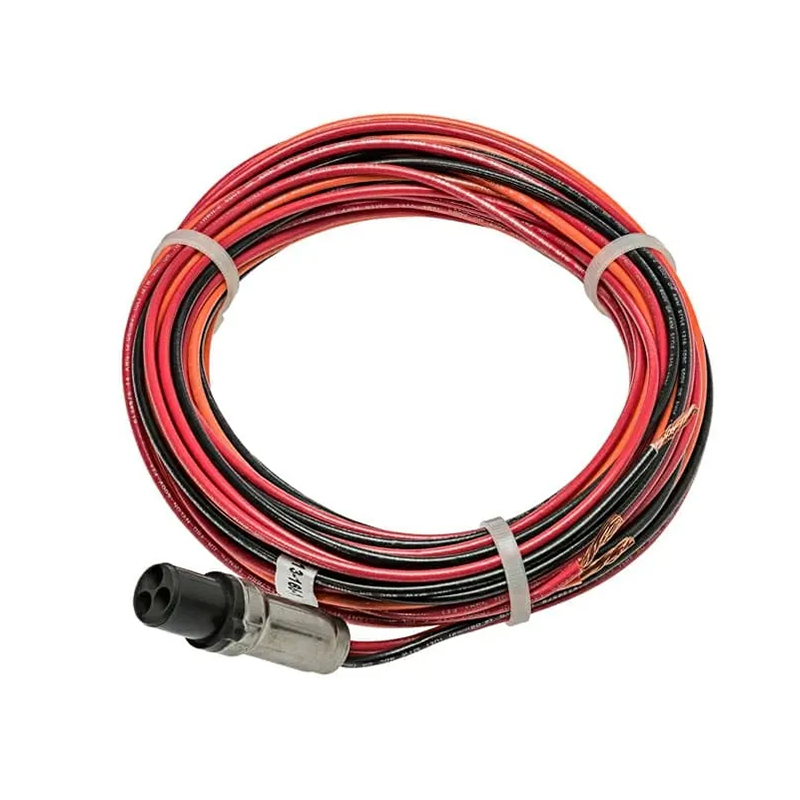

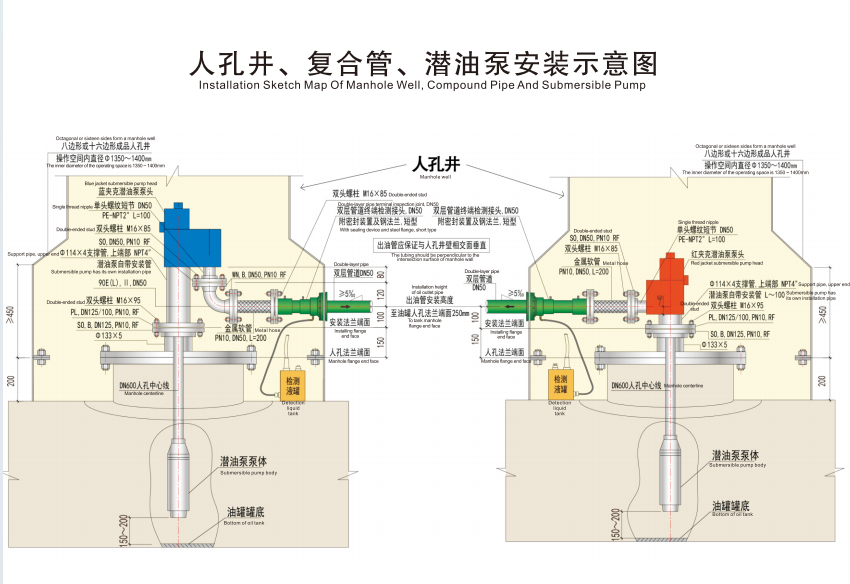

Easy Installation & Maintenance: Supports vertical or horizontal discharge, quick and safe electrical connections, and reduces labor and service costs.

Multi-Fuel Compatibility: Suitable for diesel, gasoline, kerosene, and fuel blends, with superior vacuum suction compared to traditional suction pumps.

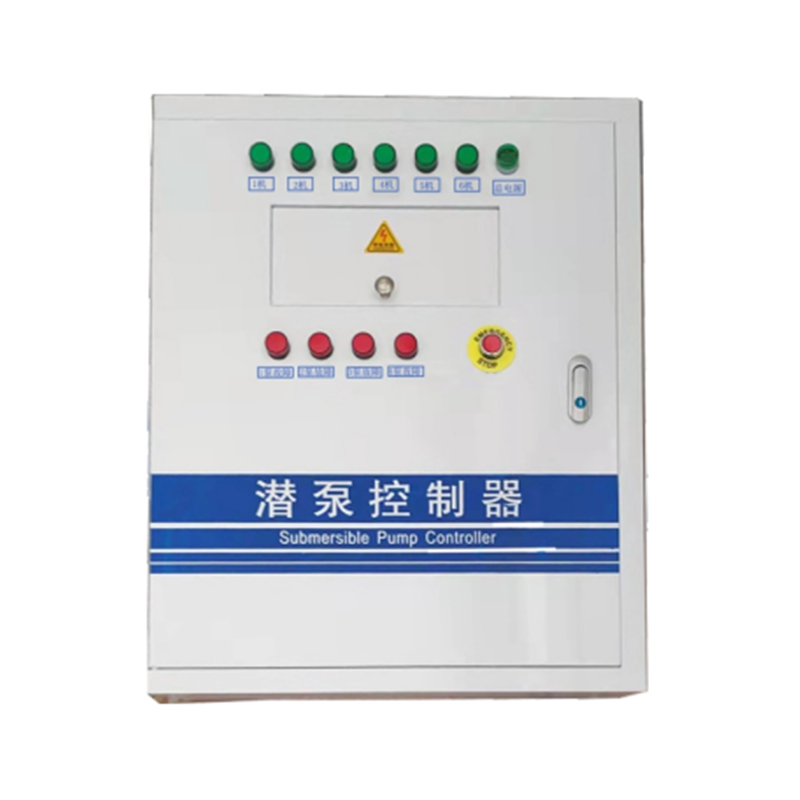

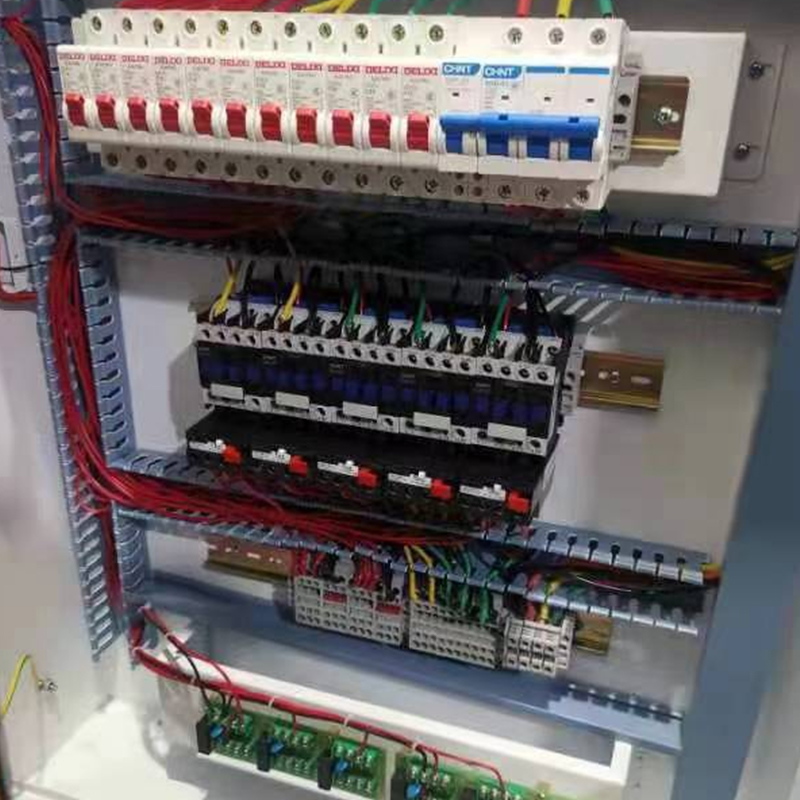

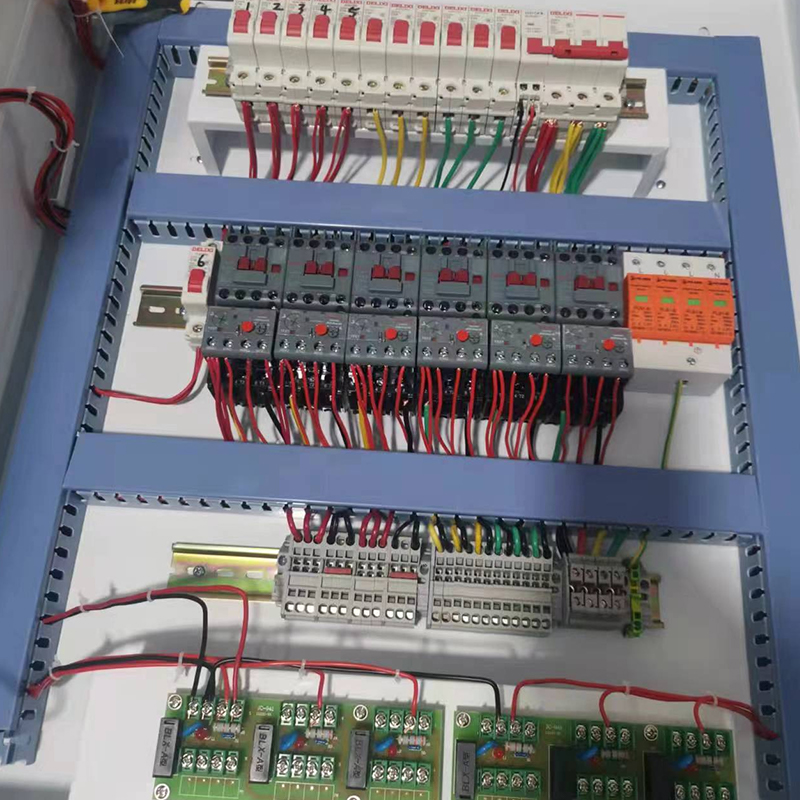

QYB-CB Series Control Box

Centralized Control: Can manage up to 6 submersible pumps simultaneously.

Overload Protection: The thermal relay automatically activates when the pump current exceeds 15A, with a red malfunction indicator light.

Safety & Protection: IP20-rated enclosure, surge protection, and electric leakage protection; double-door design prevents untrained personnel from touching live parts.

Customizable: Control boxes can be tailored to manage different numbers of submersible pumps per user requirements.

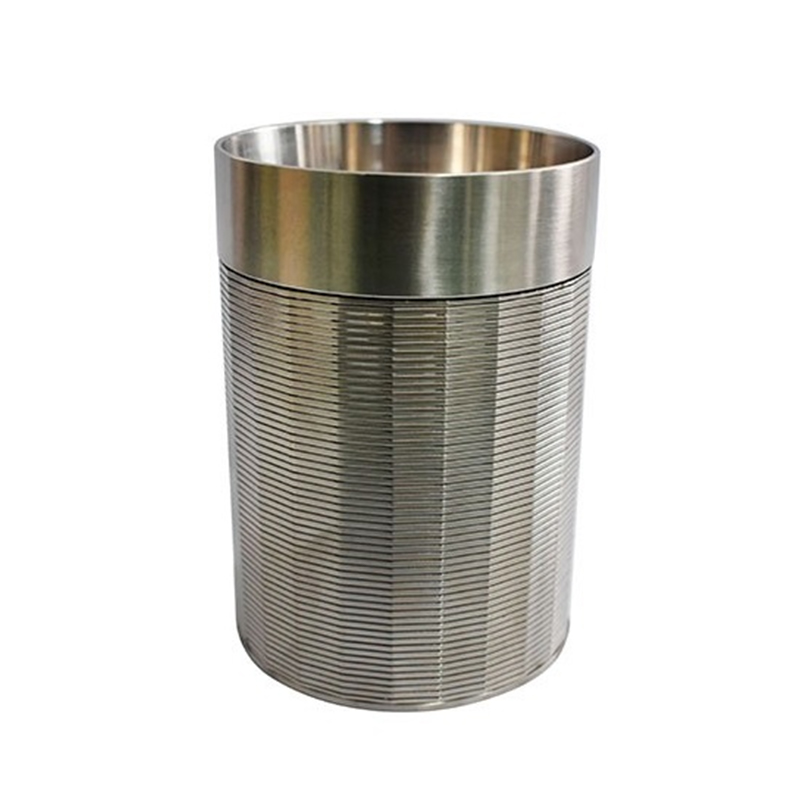

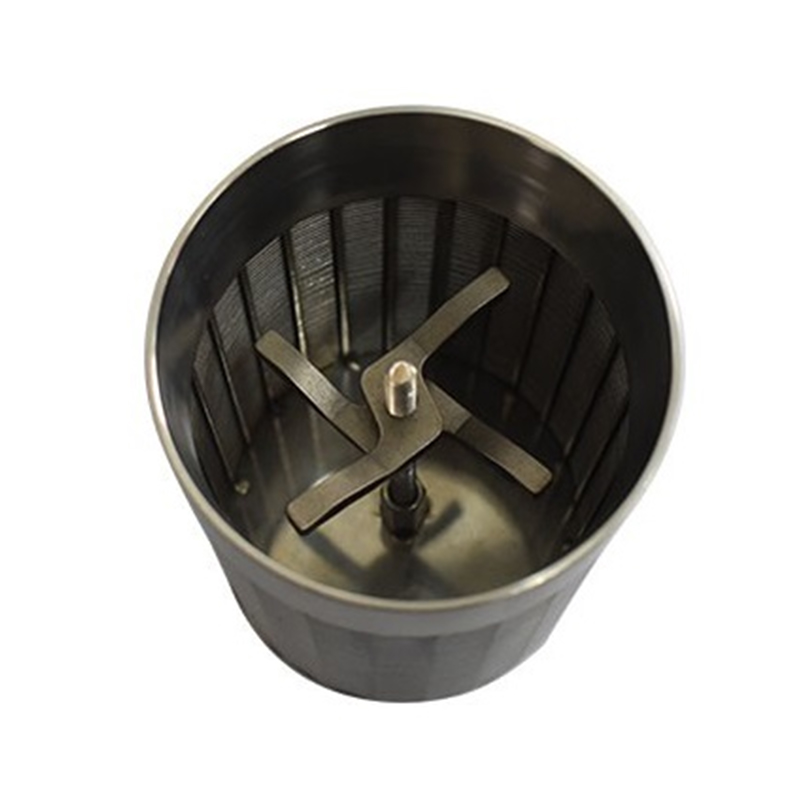

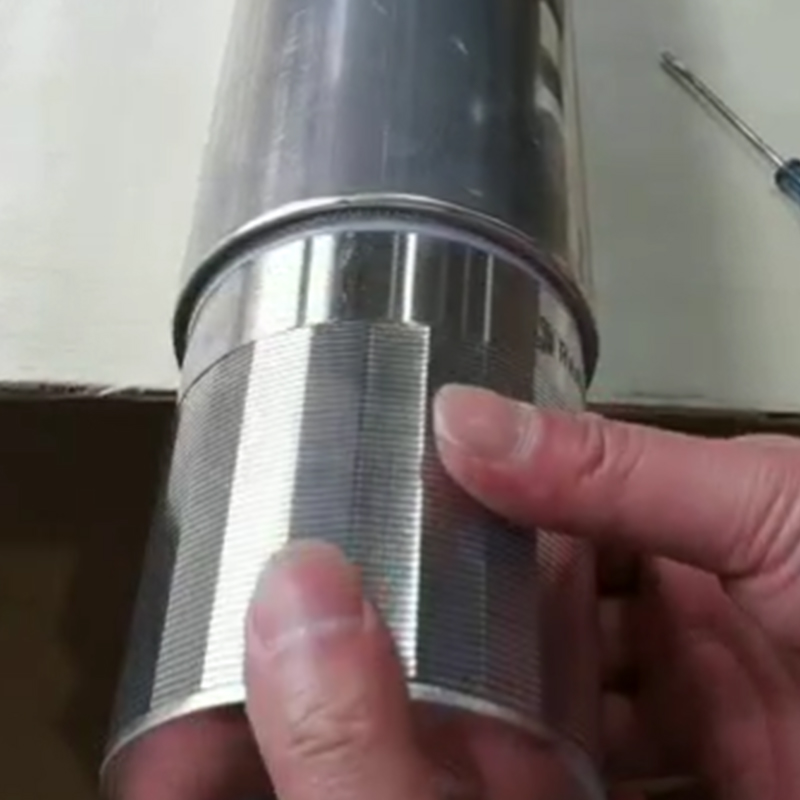

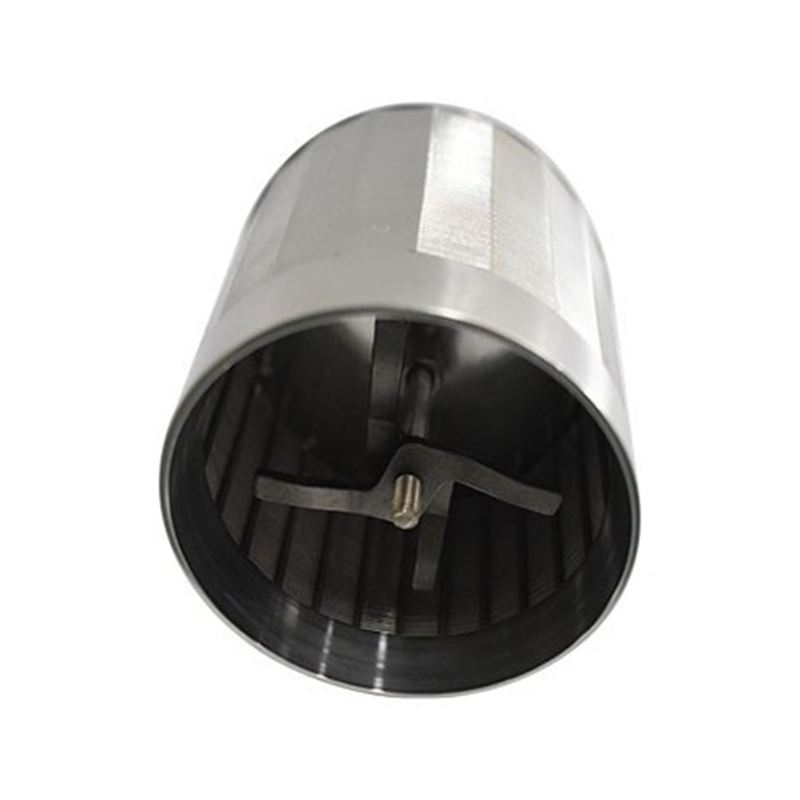

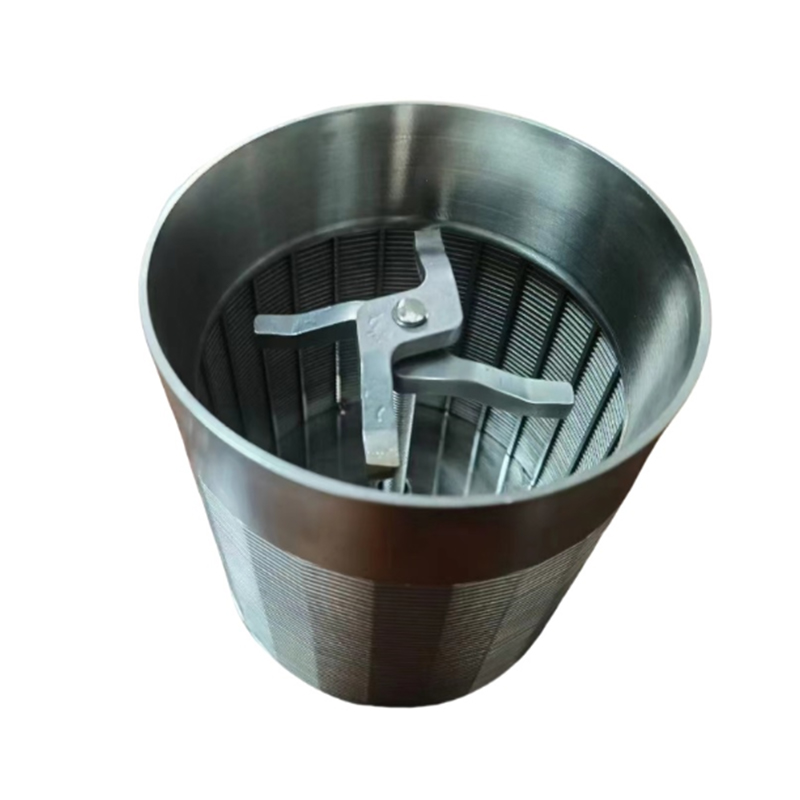

QYB-FT Stainless Steel Filter

Installed at the bottom of the submersible pump to filter solid particles and prevent air bubbles from entering the pump body.

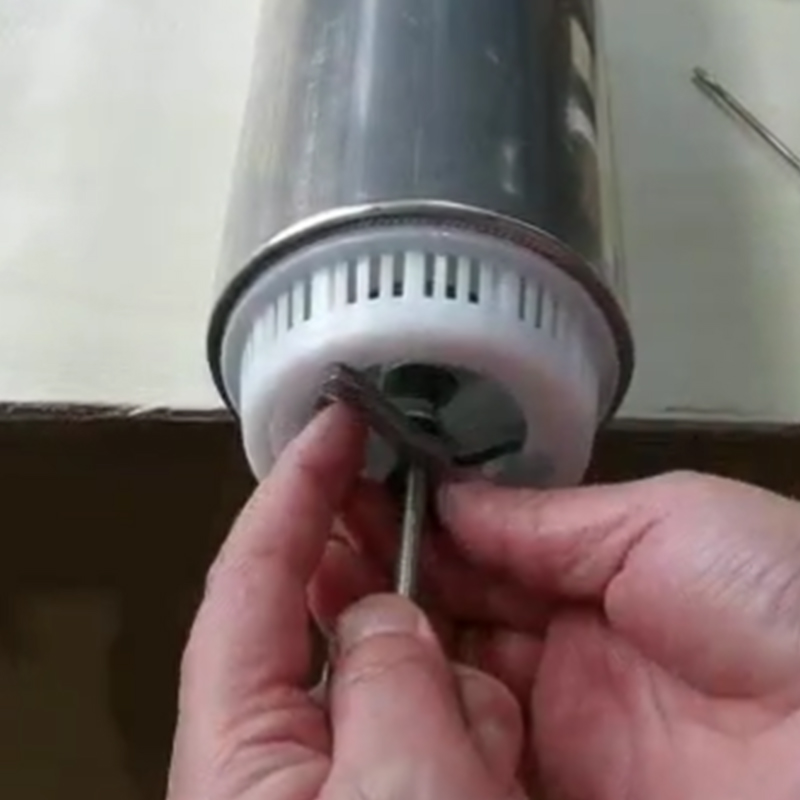

Threaded mounting rotates for easy installation and is compatible with most submersible pumps on the market.

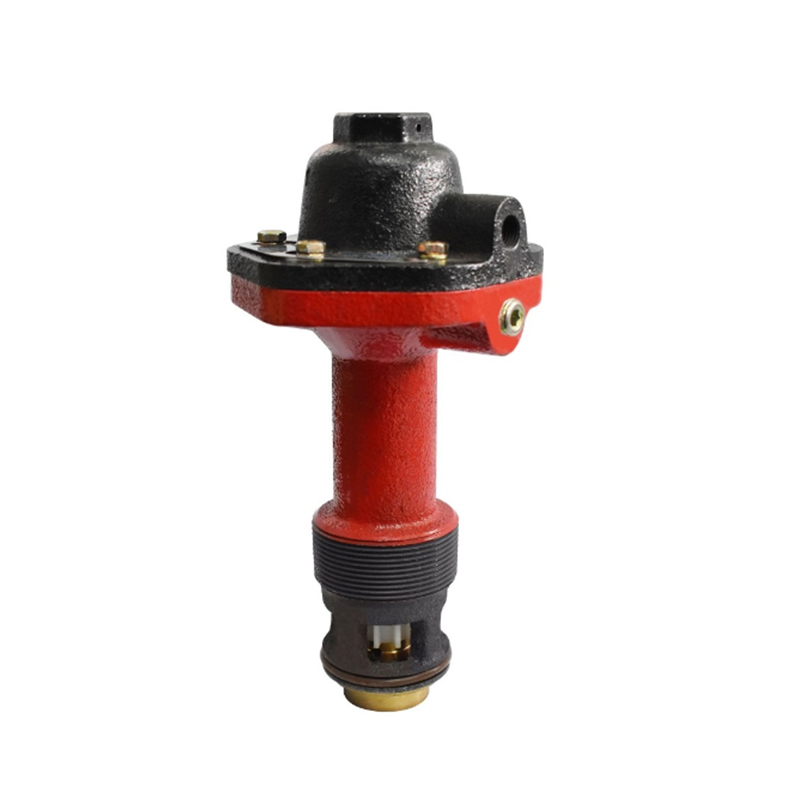

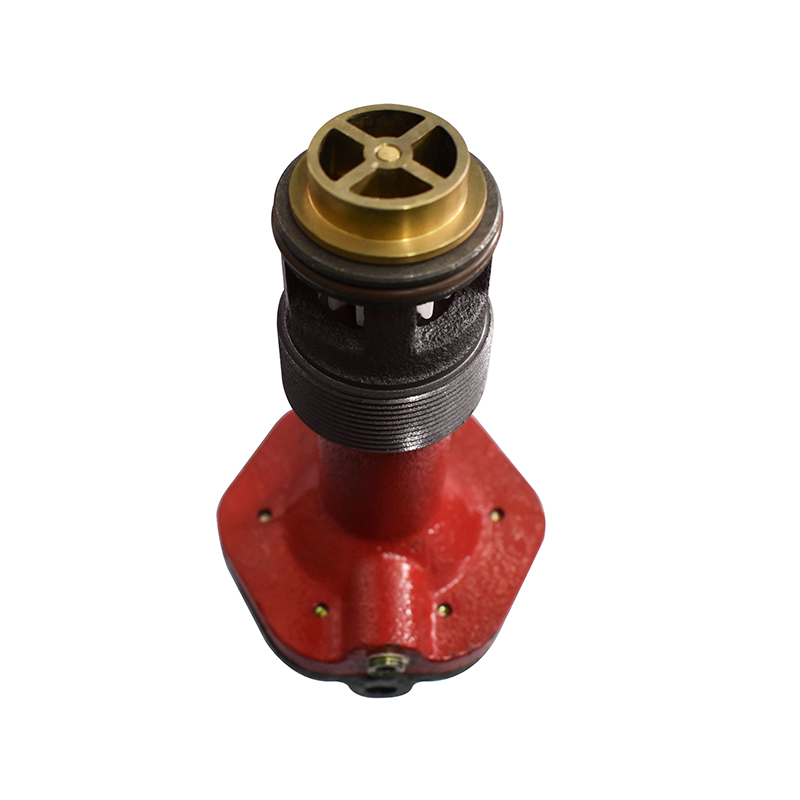

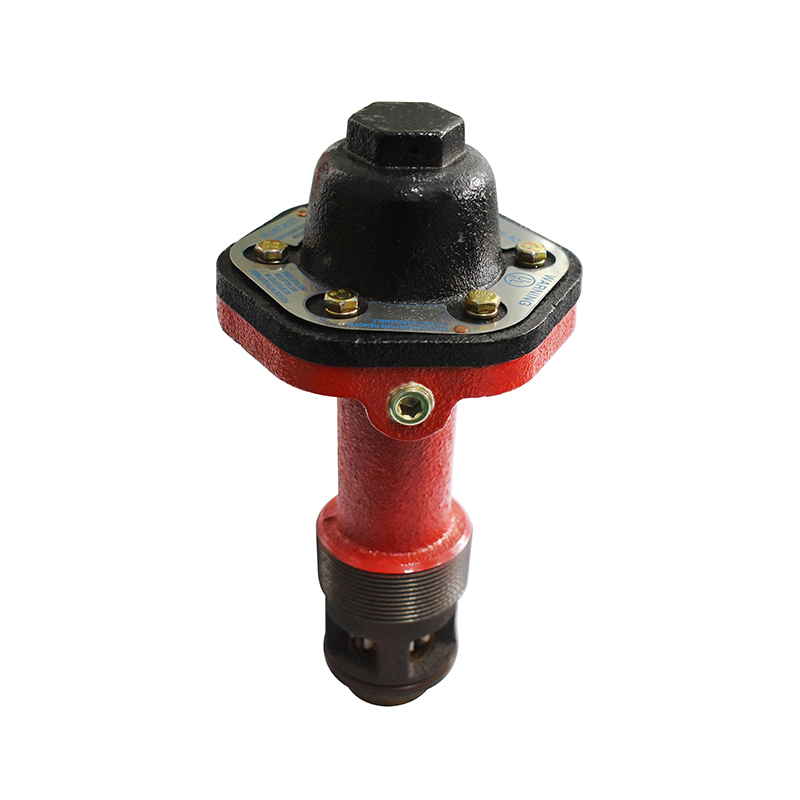

MLD Mechanical Leak Detectors

MLD1: Automatically controls fuel output if pipeline leakage ≥11.4 L/min.

MLD2: Maintains maximum flow when multiple nozzles operate simultaneously; delay 2–3 seconds for leaks <11.4 L/min.

Compatible with gasoline, diesel, and kerosene.

Application Scenarios

The high-efficiency energy-saving submersible fuel pump & control system is ideal for:

Commercial and public gas station fuel dispensing

Mobile fuel supply vehicles and fuel trucks

Industrial fuel circulation and storage facilities

Mixed-fuel management and high-efficiency fuel handling systems

Choosing the high-efficiency energy-saving submersible fuel pump & control system ensures high flow, low energy consumption, and safe, reliable fuel delivery. Whether in North America, Europe, Asia, or Latin America, it meets international fuel transfer standards and provides dependable support for gas stations and industrial fuel management.
