Non-Explosion-Proof Electric & Gasoline Oil Transfer Pump – Industrial & Mobile Diesel Refueling Solution

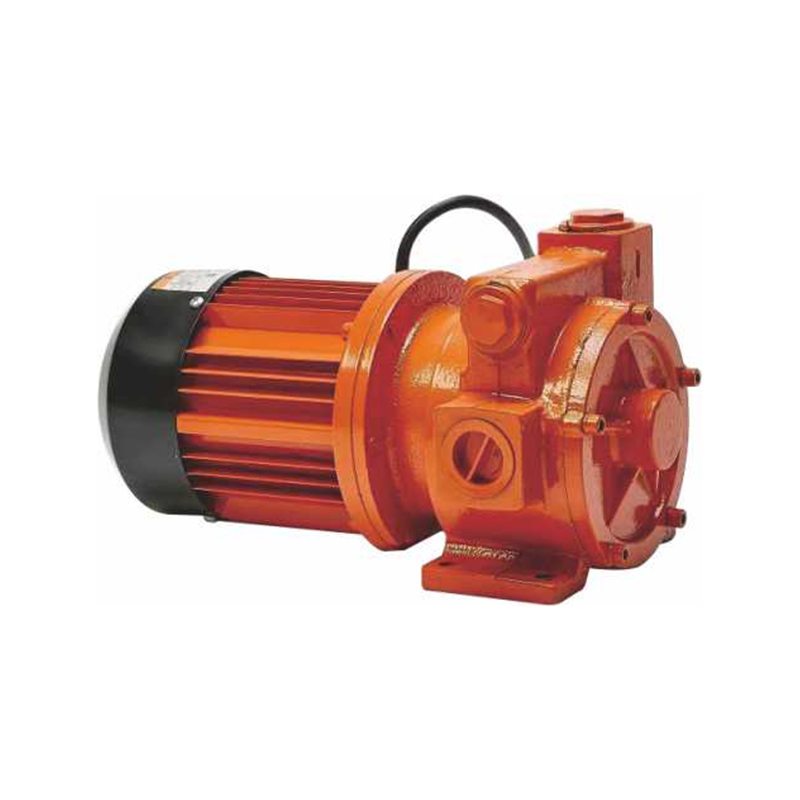

HB series non-explosion-proof electric oil pumps are mainly used for refueling and transportation in mining machinery, power generation units, other fuel-consuming equipment, fishing boats, yachts, and small gas stations. The pump body is made of cast iron with corrosion-resistant coatings. These pumps have the advantages of quick self-priming, high lift, small size, and portability. They are powered by DC12V, DC24V, and AC220V power supplies. The suction distance (vertical distance) of these pumps is 2-4 meters, and the head (horizontal distance) is 15 meters. The product is lightweight and easy to move. According to customer requirements, the product can be equipped with various refueling nozzles (manual refueling nozzles or automatic shut-off refueling nozzles) and hose couplings or hose swivels to make it more convenient to use. The motor of this product is a regular motor without explosion-proof function; therefore, it is strictly forbidden to use these non-explosion-proof electric pumps or pump assemblies for transporting gasoline or other low-flashpoint petroleum products!

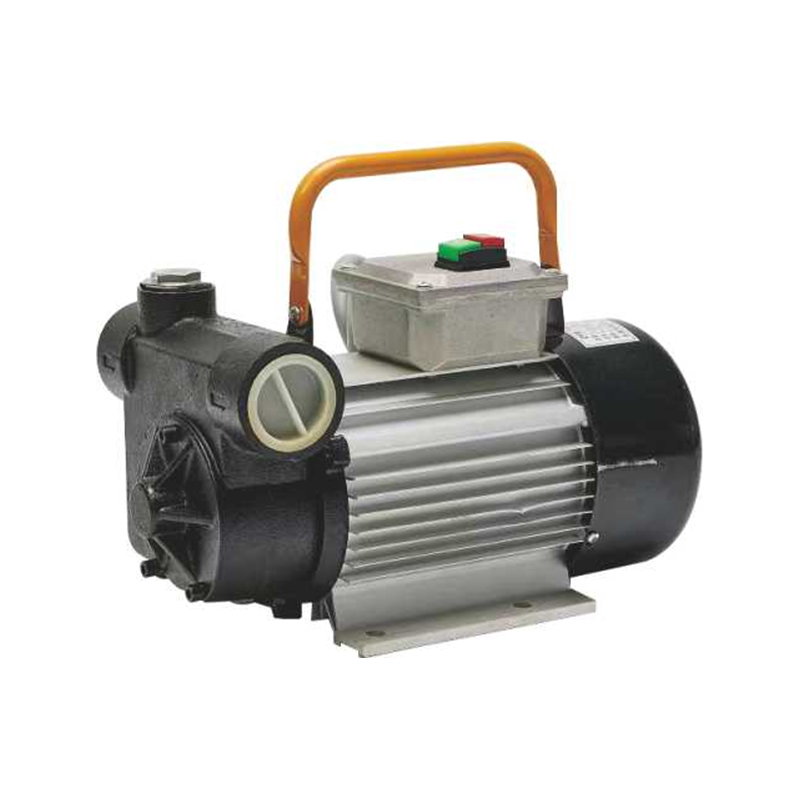

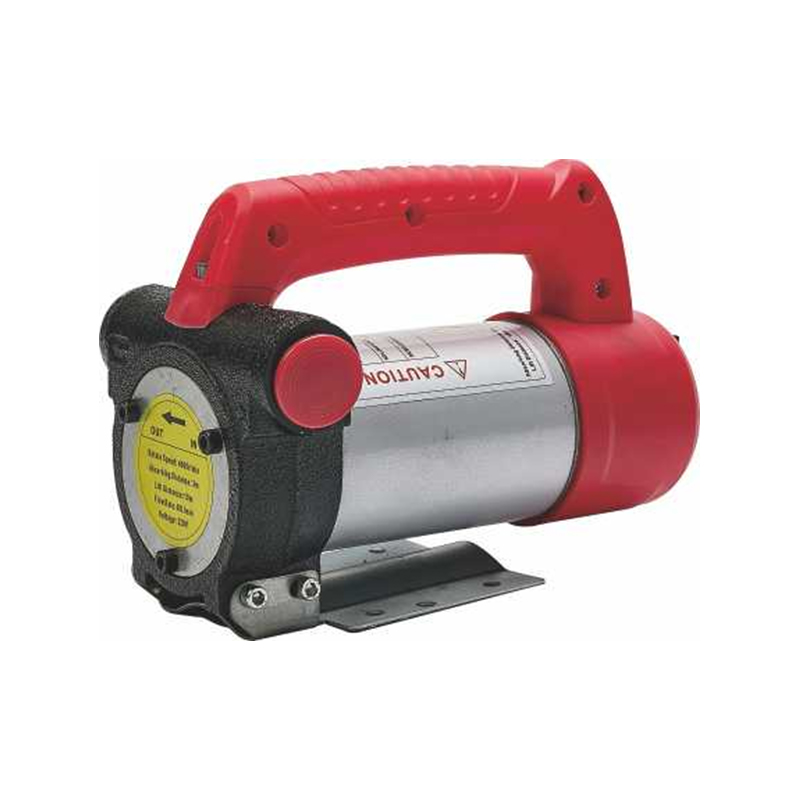

Technical specifications: Model: HBZYB-100-12V/24V Name: DC Electric Self-priming Oil Pump Flow range: 70 to 100 L/min Nominal diameter: 25mm / 1” Motor Power: 600W Vertical suction distance: 2 to 4 meters Horizontal head: 15 meters Power supply: DC12V or DC24V optional Temperature Range:-20℃ to+60℃	Technical specifications: Model: HBZYB-150-12V/24V Name: DC Electric Self-priming Oil Pump Flow range: 100 to 150 L/min Nominal diameter: 40mm / 1.5” Motor Power: 1100W Vertical suction distance: 2 to 4 meters Horizontal head: 15 meters Power supply: DC12V or DC24V optional Temperature Range:-20℃ to+60℃

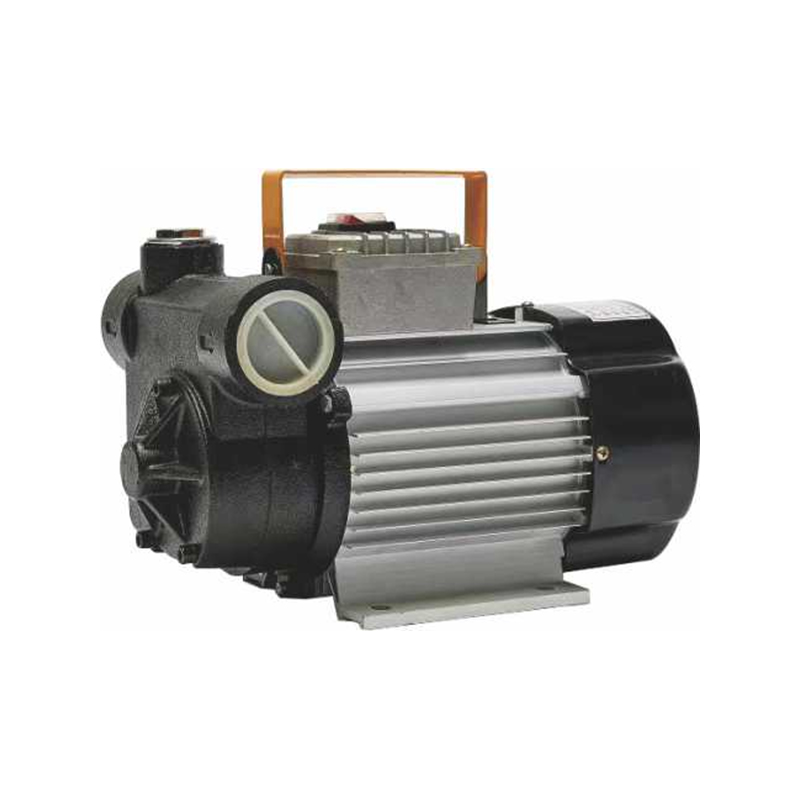

Technical specifications: Model: HBZYB-40-AC220  Name: AC Electric Self-priming Oil Pump Flow range: 28 to 40 L/min Nominal diameter: 20mm / 3/4” BSPT Motor Power: 200W Vertical suction distance: 2-4 meters Horizontal head: 15 meters Power supply: AC220V 50 Hz Temperature Range:-20℃ to+60℃	Technical specifications: Model: HBZYB-100-AC220 Name: AC Electric Self-priming Oil Pump Flow range: 70 to 100 L/min Nominal diameter: 25mm / 1” Motor Power: 600W Vertical suction distance: 2-4 meters Horizontal head: 20 meters Power supply: AC220V 50 Hz Temperature Range:-20℃ to+60℃

HB series non-explosion-proof electric oil pumps are mainly used for refueling and transportation in mining machinery, power generation units, other fuel-consuming equipment, fishing boats, yachts, and small gas stations. The pump body is made of cast iron with corrosion-resistant coatings. These pumps have the advantages of quick self-priming, high lift, small size, and portability. They are powered by DC12V, DC24V, and AC220V power supplies. The suction distance (vertical distance) of these pumps is 2-4 meters, and the head (horizontal distance) is 15 meters. The product is lightweight and easy to move. According to customer requirements, the product can be equipped with various refueling nozzles (manual refueling nozzles or automatic shut-off refueling nozzles) and hose couplings or hose swivels to make it more convenient to use. The motor of this product is a regular motor without explosion-proof function; therefore, it is strictly forbidden to use these non-explosion-proof electric pumps or pump assemblies for transporting gasoline or other low-flashpoint petroleum products!

Technical specifications: Model: HBZYB-120-AC220 Name: AC Electric Self-priming Oil Pump Flow range: 105 to 150 L/min Nominal diameter: 40mm / 1.5” Motor Power: 1100W Vertical suction distance: 2 to 4 meters Horizontal head: 15 meters Power supply: AC220V 50 Hz Temperature Range:-20℃ to+60℃	Technical specifications: Model: HBZYB-70-AC220  Name: AC Electric Self-priming Oil Pump Flow range: 50 to 70 L/min Nominal diameter: 25mm / 1” Motor Power: 550W Vertical suction distance: 2 to 4 meters Horizontal head: 15 meters Power supply: AC220V 50 Hz Temperature Range:-20℃ to+60℃

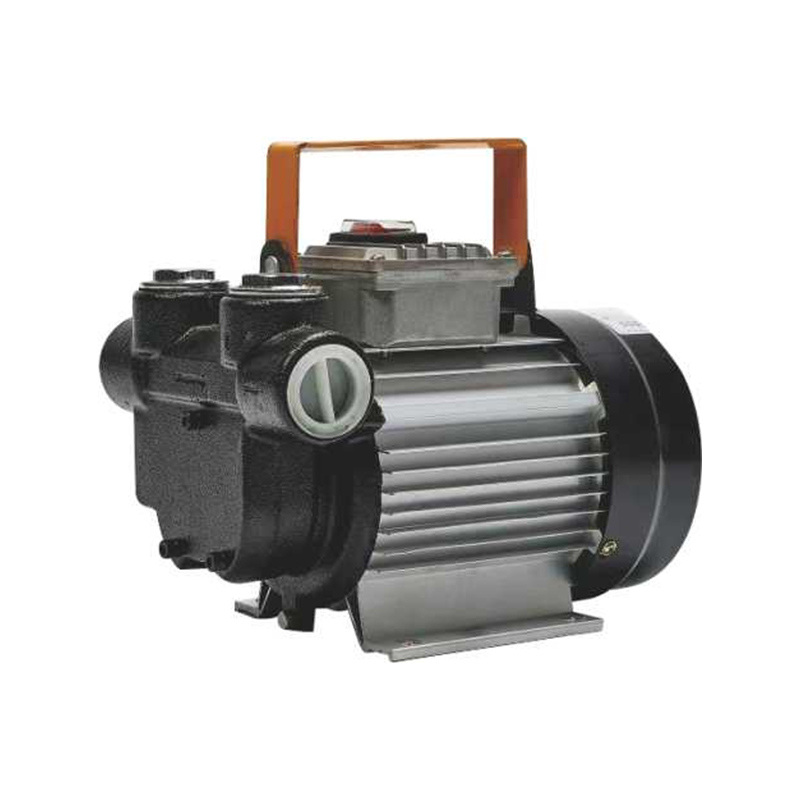

Technical specifications: Model: HBZYB-350-AC220/AC380 Name: AC Electric Self-priming Oil Pump Flow range: 250 to 350 L/min Nominal diameter: 50mm / 2” Motor Power: 2200W Vertical suction distance: 3 to 4 meters Horizontal head: 15 meters Voltage: AC220V 50 Hz/AC380V 50 Hz Dimensions: 680 x 320 x 440 mm	Technical specifications: Model: HBLXB-350-AC220 Name: AC Electric Centrifugal Oil Pump Flow range: 250 to 350 L/min Nominal diameter: 50mm / 2” Motor Power: 1500W Horizontal head: 15 meters Power supply: AC220V 50 Hz Temperature Range:-20℃ to+60℃

HB series non-explosion-proof electric oil pumps are mainly used for refueling and transportation in mining machinery, power generation units, other fuel-consuming equipment, fishing boats, yachts, and small gas stations. The pump body is made of cast iron with corrosion-resistant coatings. These pumps have the advantages of quick self-priming, high lift, small size, and portability. They are powered by DC12V, DC24V, and AC220V power supplies. The suction distance (vertical distance) of these pumps is 2-4 meters, and the head (horizontal distance) is 15 meters. The product is lightweight and easy to move. According to customer requirements, the product can be equipped with various refueling nozzles (manual refueling nozzles or automatic shut-off refueling nozzles) and hose couplings or hose swivels to make it more convenient to use. The motor of this product is a regular motor without explosion-proof function; therefore, it is strictly forbidden to use these non-explosion-proof electric pumps or pump assemblies for transporting gasoline or other low-flashpoint petroleum products!

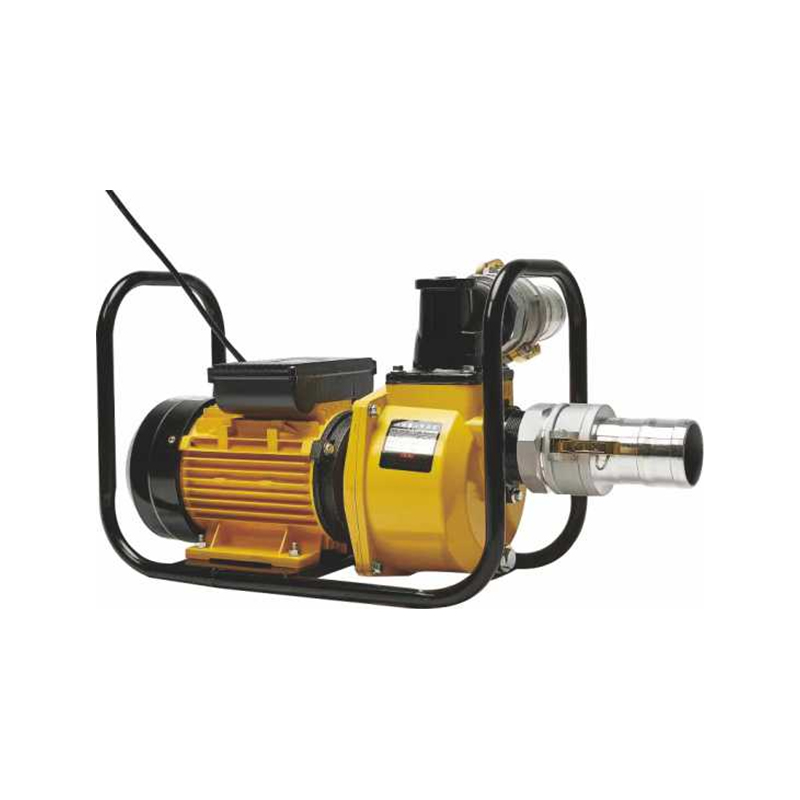

Technical specifications: Model: HBLXB-700-AC220 Name: AC Electric Centrifugal Oil Pump Flow range: 500 to 700 L/min Nominal diameter: 80mm / 3” Motor Power: 2200W Horizontal head: 15 meters Power supply: AC220V 50 Hz Temperature Range:-20℃ to+60℃	Technical specifications: Model: HBDSU50-300-AC220/AC380 Name: AC Electric Centrifugal Oil Pump Flow range: 210 to 300 L/min Nominal diameter: 50mm / 2” Motor Power: 2200W Horizontal head: 15 meters Power supply: AC220V or AC380V 50Hz
Technical specifications: Model: HBDSU80-700-AC220/AC380 Name: AC Electric Centrifugal Oil Pump Flow range: 500 to 700 L/min Nominal diameter: 80mm / 3” Power: 3000W Horizontal head: 15 meters Power supply: AC220V or AC380V 50Hz	Technical specifications: Model: HBDSU50-300-GS Name: Gasoline Engine-Driven Centrifugal Oil Pump Flow range: 210 to 300 L/min Nominal diameter: 50mm / 2” Horizontal head: 15 meters Dimensions: 520 x 380 x 410 mm Weight: 25 Kgs
