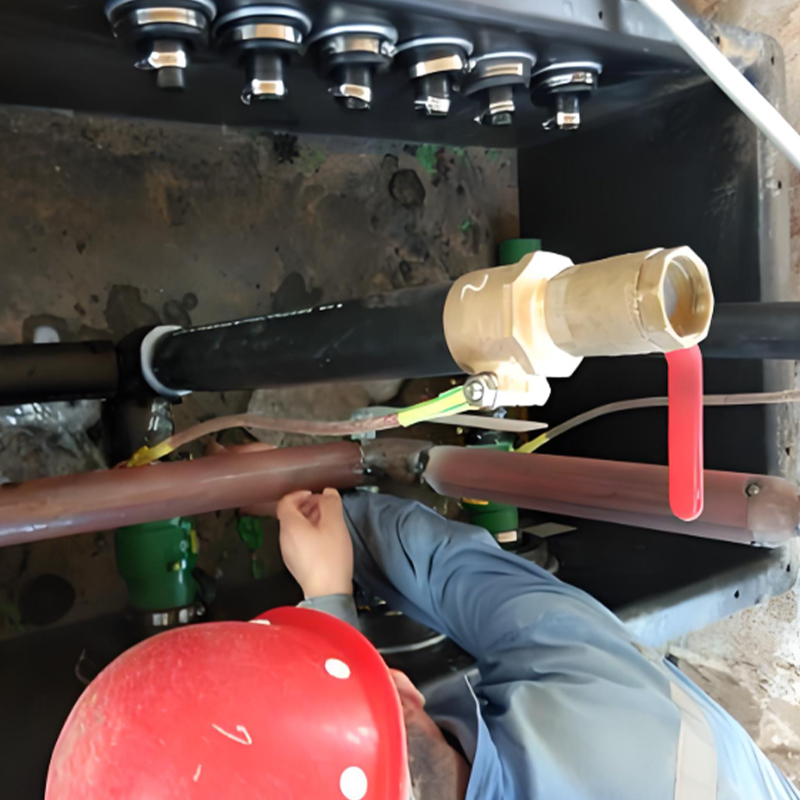

The RFFDS-120-70-90 One-Piece HDPE Fuel Dispenser Sump is engineered to provide complete protection for underground fuel piping beneath service station dispensers. Installed directly under the dispenser, this sump acts as a secure containment box that prevents fuel leaks from contaminating soil and groundwater while safeguarding crucial pipe connections and fittings. Its one-piece molded construction eliminates the need for on-site assembly, reducing installation time and ensuring superior sealing performance.

Made from high-density polyethylene (HDPE), this sump offers outstanding resistance to chemical corrosion and mechanical impact. The integrated molded body enhances structural integrity and creates a fully sealed environment for underground piping. This design ensures that fuel system components are shielded from external damage, extends the service life of the installation, and simplifies maintenance procedures.

The RFFDS-120-70-90 is widely recognized internationally and has different names in various regions: in Russia, it is called “Односекционный HDPE бак для топлива”; in Ukraine, “Односекційний HDPE збірник для палива”; in Poland, “Jednoczęściowa studnia HDPE pod dystrybutor paliwa”; and in Singapore, “One-Piece HDPE Fuel Dispenser Containment Sump”. These local terms illustrate its global applicability and acceptance in modern fuel station projects.

The sump is designed to operate effectively under extreme conditions, with a temperature range from -40°C to +80°C. Its HDPE material provides compression strength ≥8 kN/m² and impact resistance ≥10 KJ/m², ensuring durability even under heavy loads or minor ground settlement. Compatible with both single-wall and double-wall composite piping, the RFFDS sump adapts to various underground layouts while maintaining a secure, leak-proof environment.

Maintenance is straightforward due to the one-piece design. With no seams or joints to assemble on-site, the risk of leakage is minimized, and routine inspection or cleaning can be performed quickly without disrupting fuel station operations. The product is designed for a service life of 20 years or more under standard conditions, making it a long-term, cost-effective investment for fuel station infrastructure.

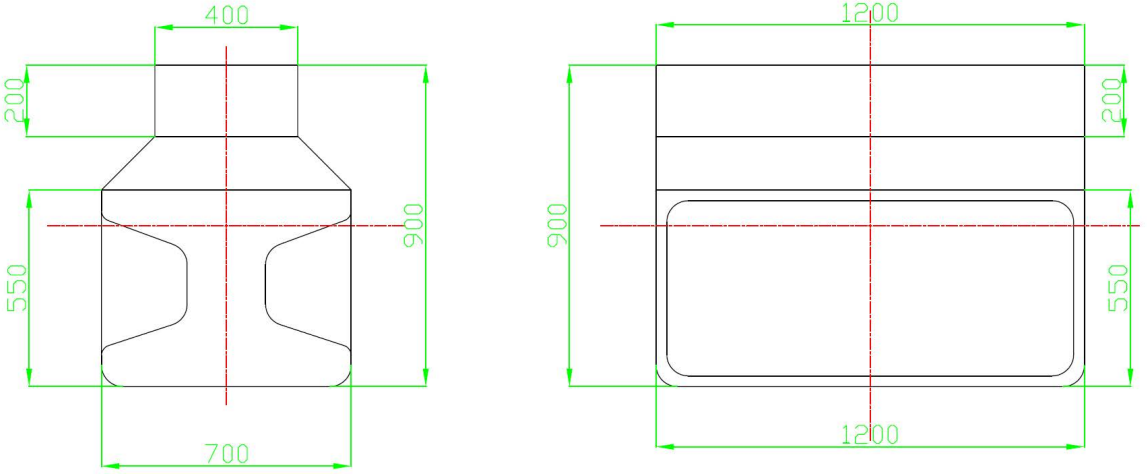

The standard external dimensions are 1200 mm × 700 mm × 900 mm, with custom sizing available for specific project requirements. Its robust construction, high durability, and one-piece design make the RFFDS-120-70-90 a reliable solution for underground fuel pipeline protection worldwide.
