HBBV Series Aluminum Ball Valves – Compact, Durable, and Reliable for Liquid Flow Control

Efficient and safe flow control is essential in fuel depots, gas stations, and industrial pipelines. The HBBV Series Aluminum Ball Valves combine a lightweight aluminum alloy housing with a robust stainless steel ball core, providing a reliable solution for opening and closing pipelines carrying non-corrosive liquids.

These ball valves are recognized under different names around the world: “aluminum pipeline ball valve” in the US, “industrial shut-off valve” in the UK, “lightweight alloy ball valve” in Australia, and “manual liquid control valve” in India. Regardless of the terminology, the key advantages remain the same: compact design, easy operation, and dependable performance.

Key Features of HBBV Series:
Compact and Lightweight Design: Cast aluminum body reduces weight without compromising strength, making installation and operation easier.
Stainless Steel Ball Core: Ensures long-lasting durability and smooth operation even under frequent usage.
Reliable Sealing: High-quality Teflon and Bnna-N gaskets guarantee leak-free performance under varying temperatures.
Manual Control: Equipped with a limited lever and optional locking devices for safety and precise operation.
Versatile Sizes: Diameter range from 25 mm to 150 mm (1 to 6 inches) for flange models, and 40 mm to 100 mm for male-threaded versions.
Wide Application: Ideal for oil depots, gas stations, oil tank trucks, and industrial liquid pipelines.
Customizable Flanges and Threads: Flanges can be produced according to user requirements; male threads comply with NPT or BSPT standards.

Why Choose HBBV Aluminum Ball Valves?
Durability & Reliability: Aluminum body and stainless steel ball resist corrosion and wear, ensuring long service life.
Ease of Use: Lightweight design and manual lever provide effortless control and rapid response.
Safety Features: Limited lever and optional lock devices prevent accidental operation and enhance safety.
Flexible Installation: Wide size range and customizable flange or thread connections suit various pipeline configurations worldwide.

The HBBV Series offers a high-performance, lightweight solution for reliable liquid flow control, reducing installation effort and operational costs while ensuring safe and precise control of non-corrosive fluids. Whether used in a small gas station, large oil depot, or industrial pipeline, HBBV aluminum ball valves deliver consistent performance and peace of mind.

Technical Highlights:
Body: Cast Aluminum Alloy
Ball Core: Stainless Steel
Gaskets: Teflon and Buna-N
Temperature Range: -20°C to +70°C
Working Pressure: 0.6 MPa
Control Mode: Manual
Sizes: 25–150 mm (flange), 40–100 mm (male-threaded)
Thread Standard: NPT or BSPT (for male-threaded versions)

PREV：No previous product NEXT：Aluminum and Stainless Steel Three-Way Ball Valve for Oil and Chemical Pipelines

Specification
Contact Us

This product features an aluminum alloy housing and a stainless steel ball core, offering advantages such as a compact structure, light weight, small size, and convenient use. It is equipped with a limited lever and locking devices for safety and reliability. The ball valve is widely used for opening and closing control in non-corrosive liquid transportation pipelines. The aluminum ball valve is primarily used in oil depots, gas stations, oil tank trucks, and other applications.

Technique Specification：
Body: Cast Aluminum
Ball: Stainless steel
Gasket: Teflon and Buna-N
Temperature Range:-20~+70℃
Working Pressure:0.6 Mpa
Diameter Sizes:25 to 150 mm(1 to 6 inches)
Control Mode: Manual

Ordering Specifications:

Item No.	Flange Type	Diameter Sizes	Flange Hole Center to Center & Hole Qty.

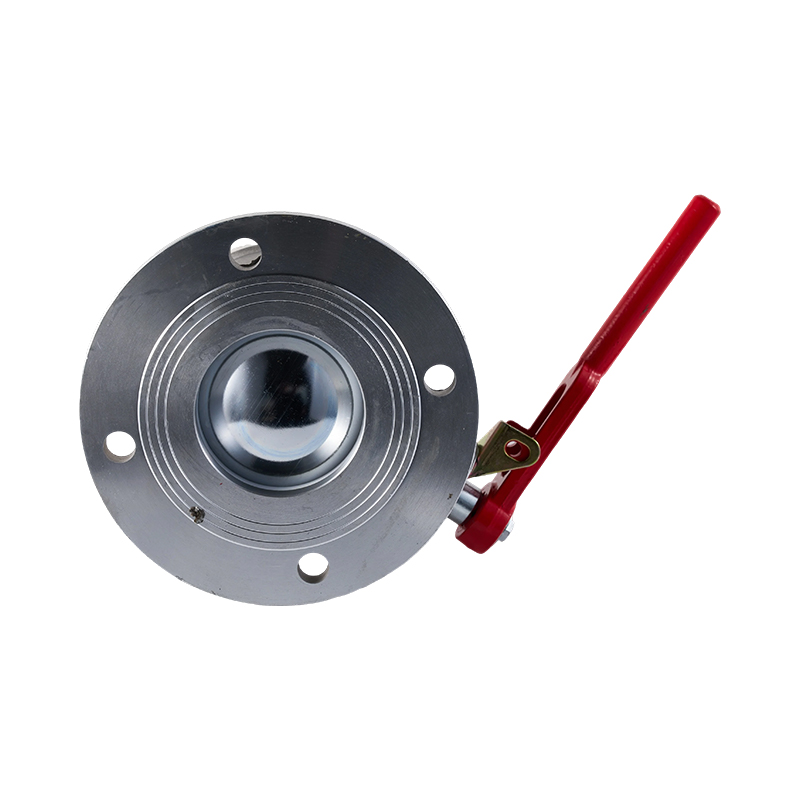

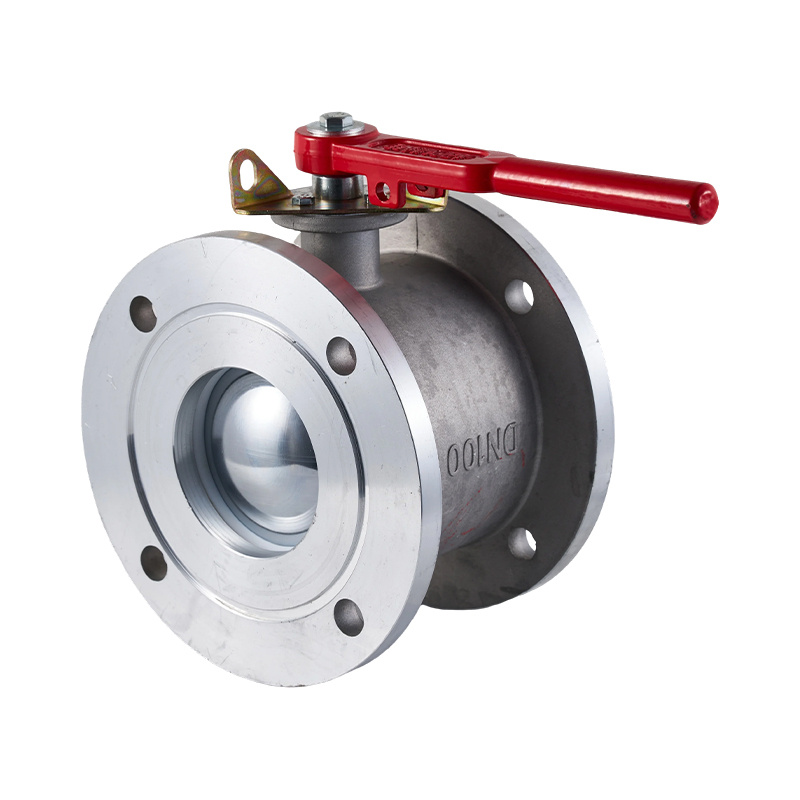

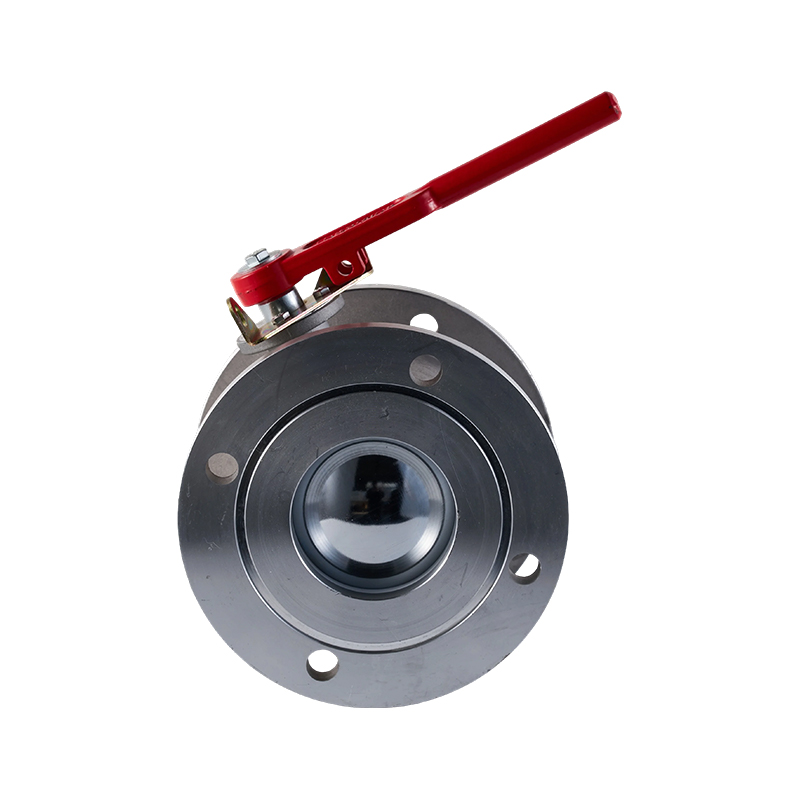

HBBV-25	Round	25 mm	85 mm, 3 or 4 Holes
HBBV-40	Round	40 mm	110 mm, 4 Holes
HBBV-50	Round	50 mm	125 mm, 4 Holes
HBBV-65	Round	65 mm	145 mm, 4 Holes
HBBV-80	Round	80 mm	160 mm, 4 Holes
HBBV-100	Round	100 mm	180 mm, 4 or 8 Holes
HBBV-150	Round	150 mm	225 mm, 4 or 8 Holes

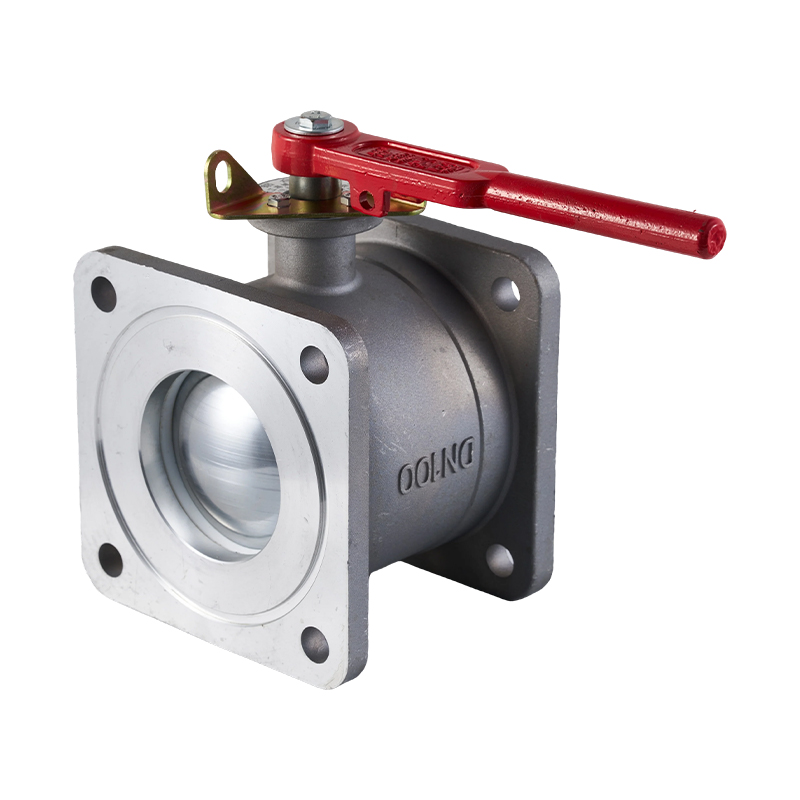

HBBV-40F	Square	40 mm	115 mm, 4 Holes
HBBV-50F	Square	50 mm	130 mm, 4 Holes
HBBV-65F	Square	65 mm	155 mm, 4 Holes
HBBV-80F	Square	80 mm	165 mm, 4 Holes
HBBV-100F	Square	100 mm	195 mm, 4 or 8 Holes

The Flange Standard can be produced according to the user’s requirements.

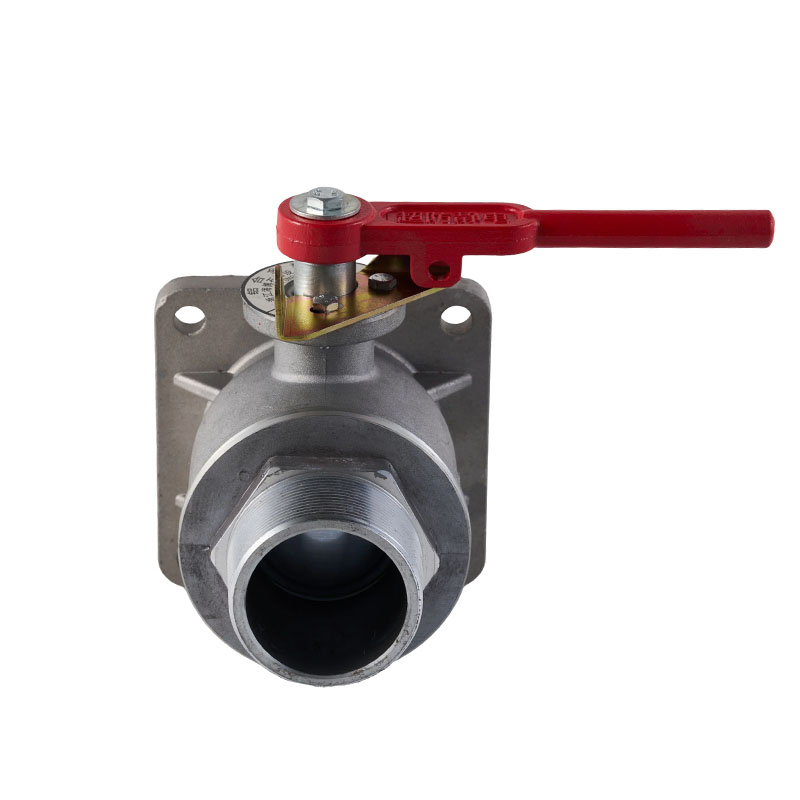

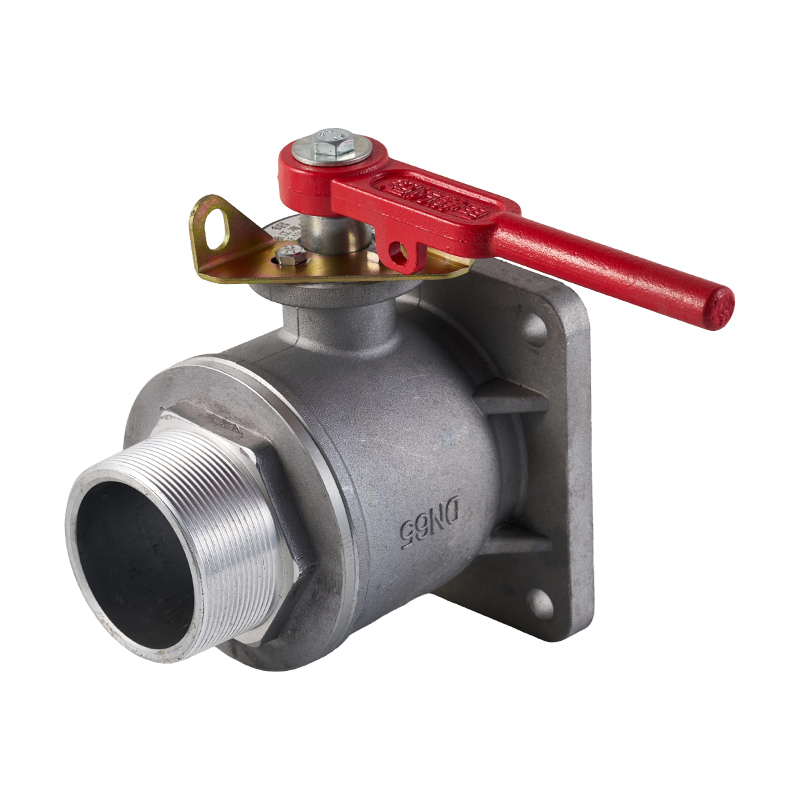

HBBV Series of Aluminum Ball Valve with Male Thread

Technique Specification：
Body: Cast Aluminum
Ball: Stainless steel
Gasket: Teflon and Buna-N
Temperature Range:-20~+70℃
Working Pressure:0.6 Mpa
Diameter Sizes:40 to 100 mm(1.5 to 4 inches)
Control Mode: Manual
Thread Standard: NPT or BSPT Male Thread

Ordering Specifications:

Item No.	Flange Type	Diameter Sizes	Flange Hole Center to Center & Hole Qty.
HBBV-40F-T	Square	40 mm	115 mm, 4 Holes
HBBV-50F-T	Square	50 mm	130 mm, 4 Holes
HBBV-65F-T	Square	65 mm	155 mm, 4 Holes
HBBV-80F-T	Square	80 mm	165 mm, 4 Holes
HBBV-100F-T	Square	100 mm	195 mm, 4 or 8 Holes
