4 Inch Surface-Oxidized Aluminum T-Type Pneumatic Tank Truck Bottom Valve for Safe Liquid Transfer
The HB804TQ series introduces a T-type pneumatic bottom valve, engineered for efficient and safe liquid handling in tank trucks. Designed for installation at the base of fuel or chemical tanks, this valve features an innovative internal sealing system and a cutting groove along the body. In case of unexpected impact, the outer casing fractures along the groove, while the internal valve disc remains intact, ensuring full containment and preventing leakage.
Constructed from surface-oxidized aluminum, the valve is lightweight yet robust, providing excellent resistance to corrosion and chemical exposure. Pneumatic operation allows for rapid and precise opening and closing, ideal for high-frequency loading and unloading operations. The internal flow channels are optimized to support large-volume transfers while minimizing the risk of spillage. Sealing materials include Viton or Buna-N options, compatible with light fuels such as diesel and gasoline.
This T-shaped design provides a unique three-way flow control, which allows operators to manage multiple tank connections or simultaneous liquid transfer operations, enhancing flexibility and operational efficiency.
Around the world, this valve is referred to using different terms, reflecting regional preferences and industry standards. Common names include T-Type Pneumatic Bottom Valve, Tank Truck T-Connector Valve, Pneumatic Emergency Shut-off Valve, Three-Way Tank Valve, Submerged Tank Valve, Fuel Tank Pneumatic Control Valve, and High-Flow Tank Bottom Safety Valve. Despite variations in terminology, the product consistently delivers safety, reliability, and efficient liquid management.
Key Advantages:
Safety First: Cutting-groove design protects internal components and prevents leaks during accidental impacts.
Durable Construction: Surface-oxidized aluminum ensures longevity and corrosion resistance in demanding fuel handling environments.
Pneumatic Precision: Air-controlled operation offers fast response for opening and shutting the valve.
Flexible Flow Control: T-type structure allows multiple flow paths for complex unloading or loading setups.
Chemical-Resistant Seals: Viton or Buna-N gaskets ensure secure sealing for gasoline, diesel, and other light fuels.
High Capacity: Supports up to 2500 L/min flow rate at standard 0.6 MPa working pressure.

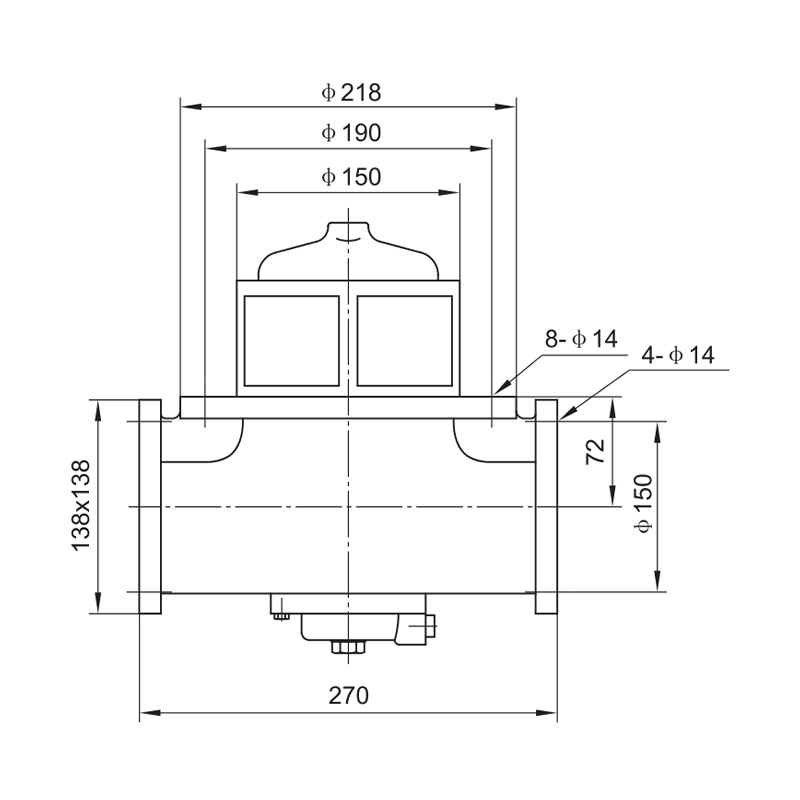

Standard Connections: Tank-side round flange and pipe-side square flange simplify integration and maintenance.
Optional Accessories:
The valve can be paired with various tank-side and pipe-side flanges, welding bases, and gaskets. Customized components and spare parts are also available to meet specific operational requirements.
Typical Applications:
HB804TQ T-type pneumatic bottom valves are widely used in fuel tanker unloading, chemical tank operations, multi-tank transfer stations, rapid loading and unloading platforms, and industrial sites requiring reliable spill prevention and safety control.
