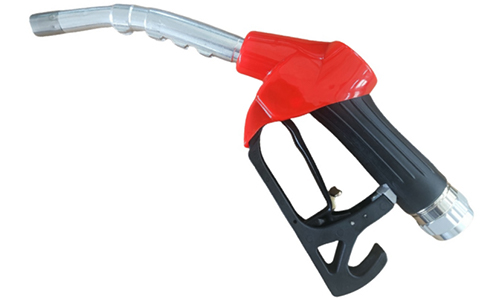

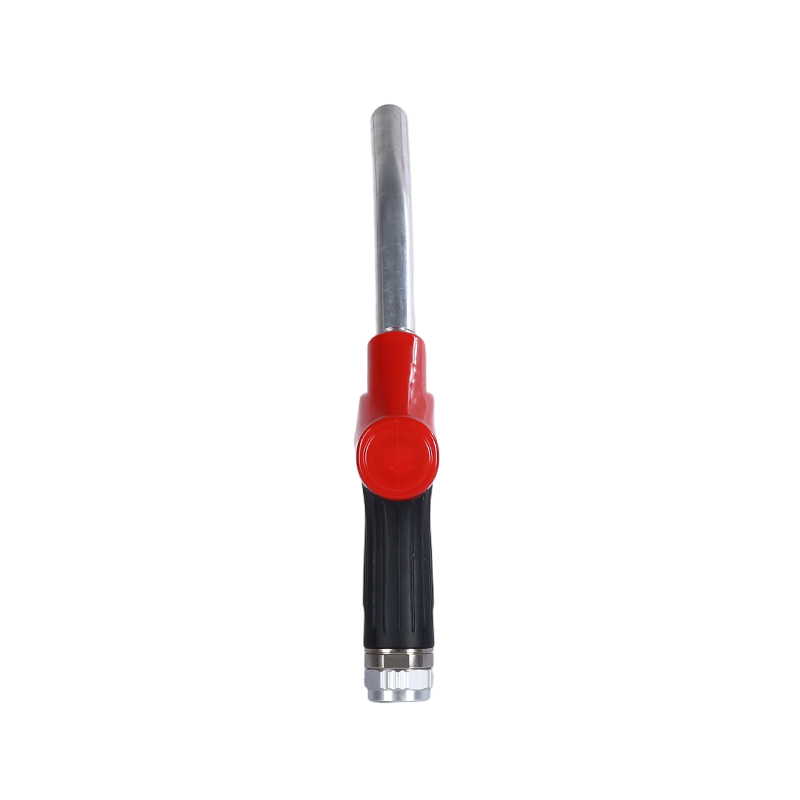

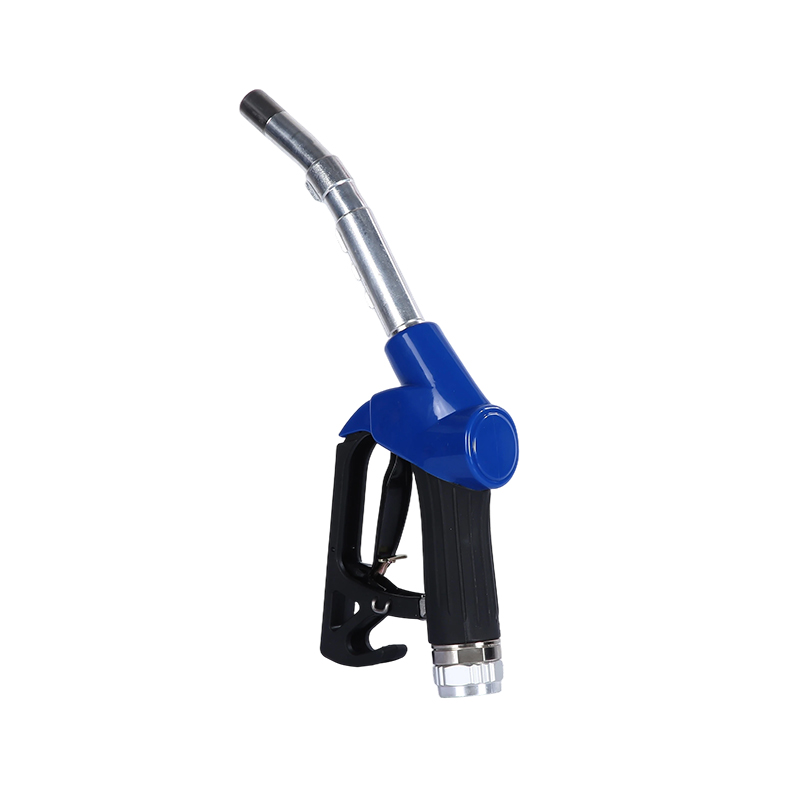

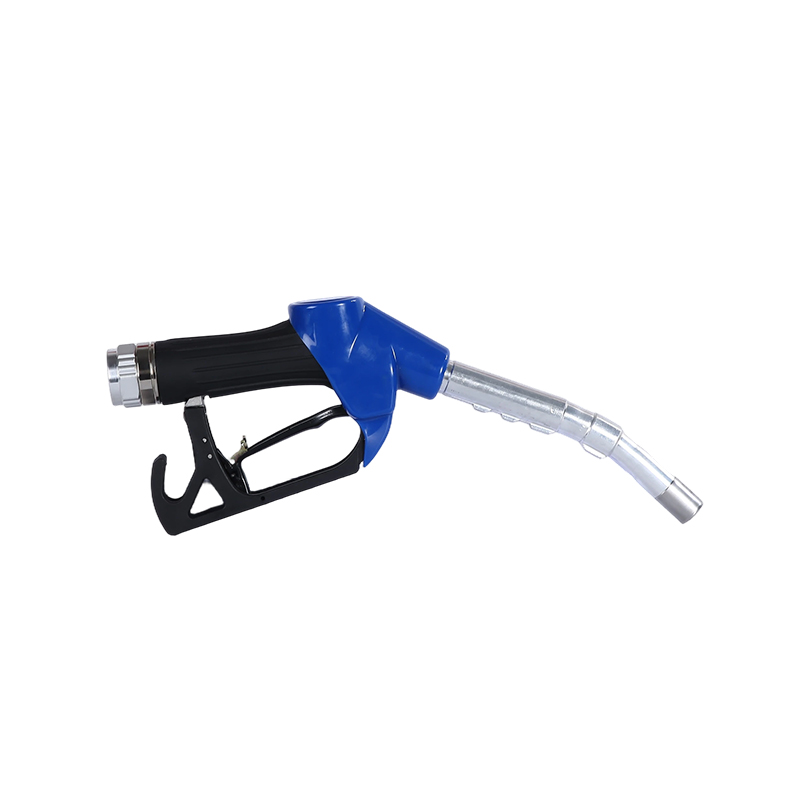

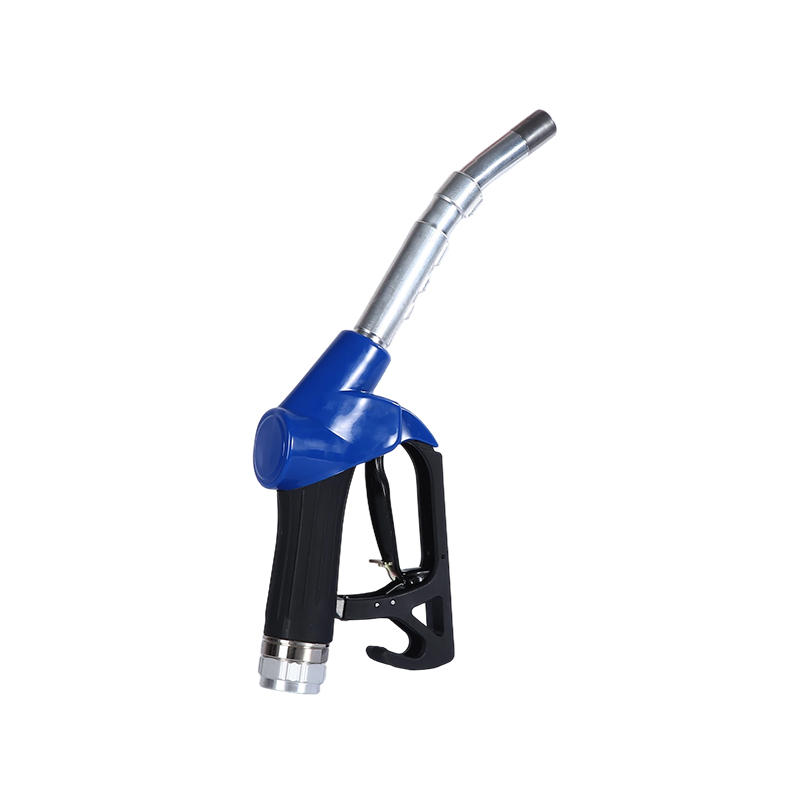

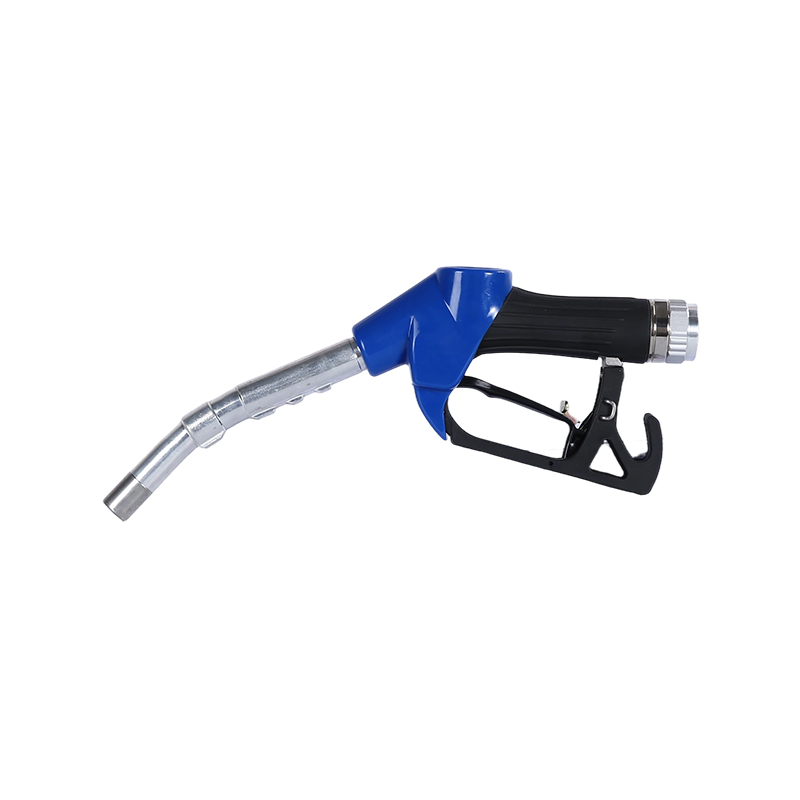

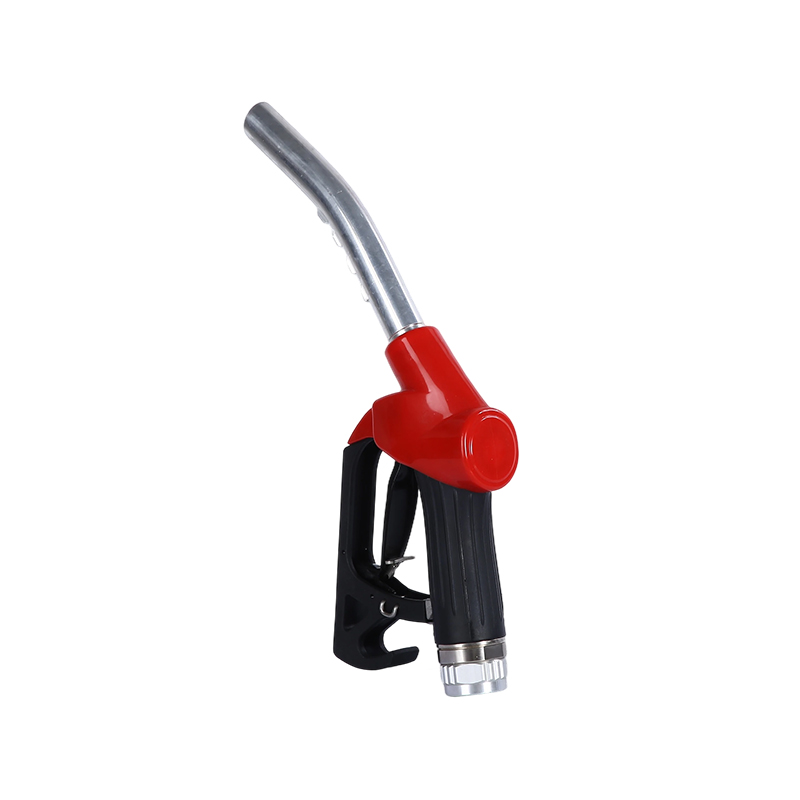

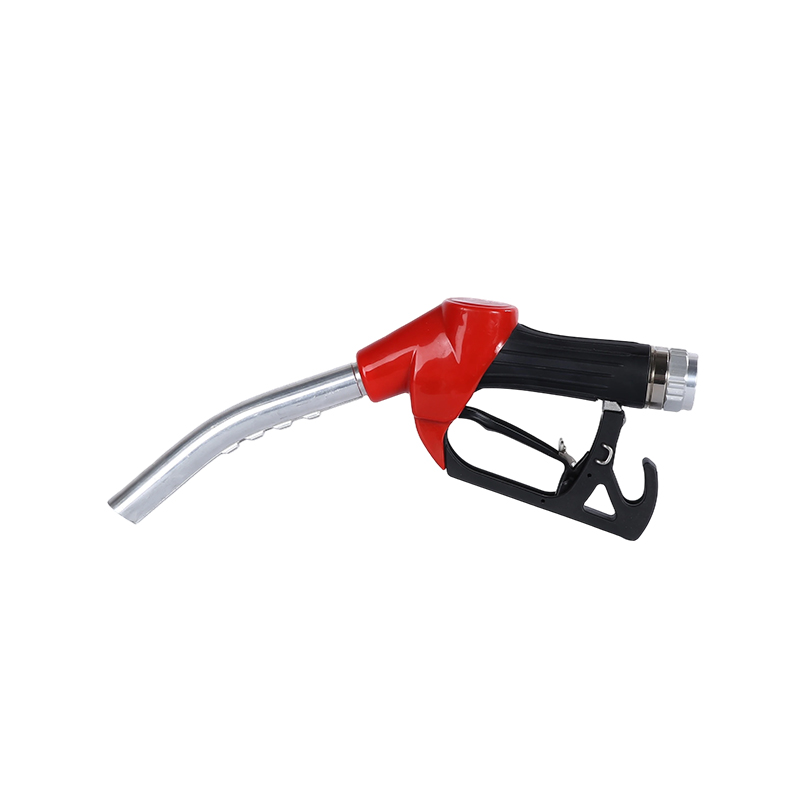

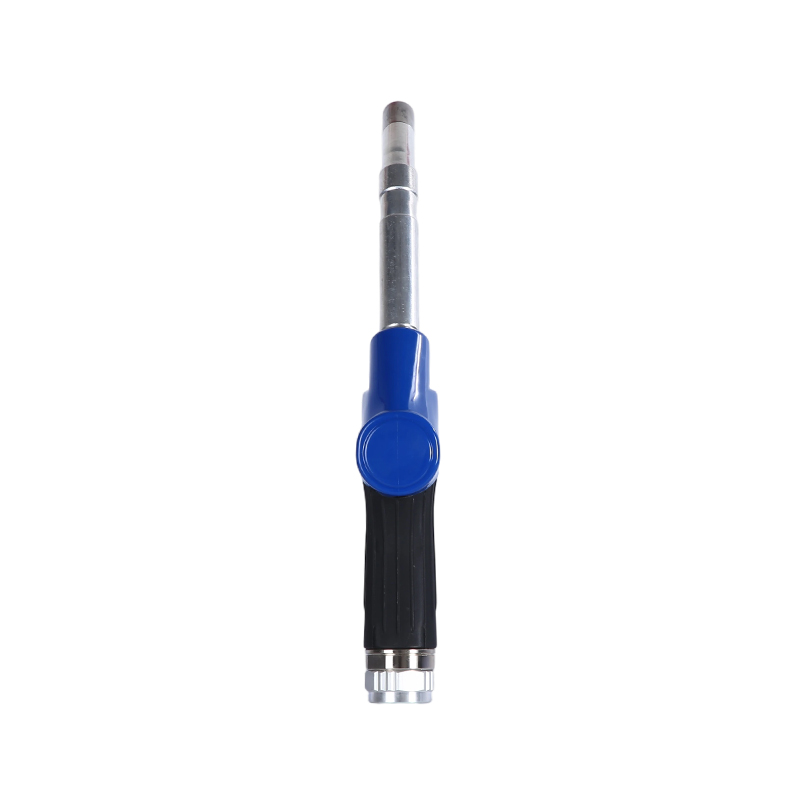

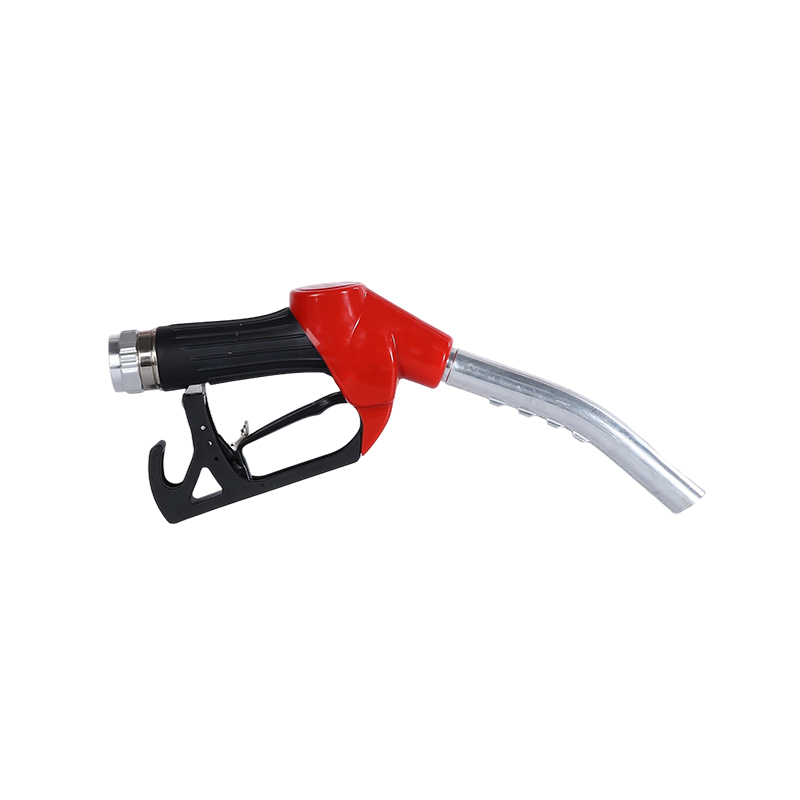

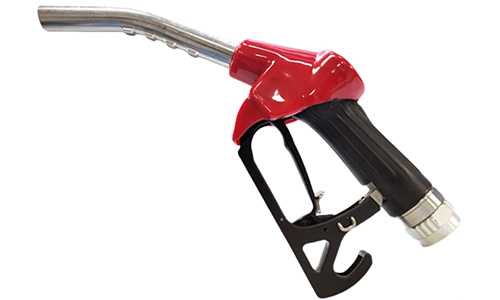

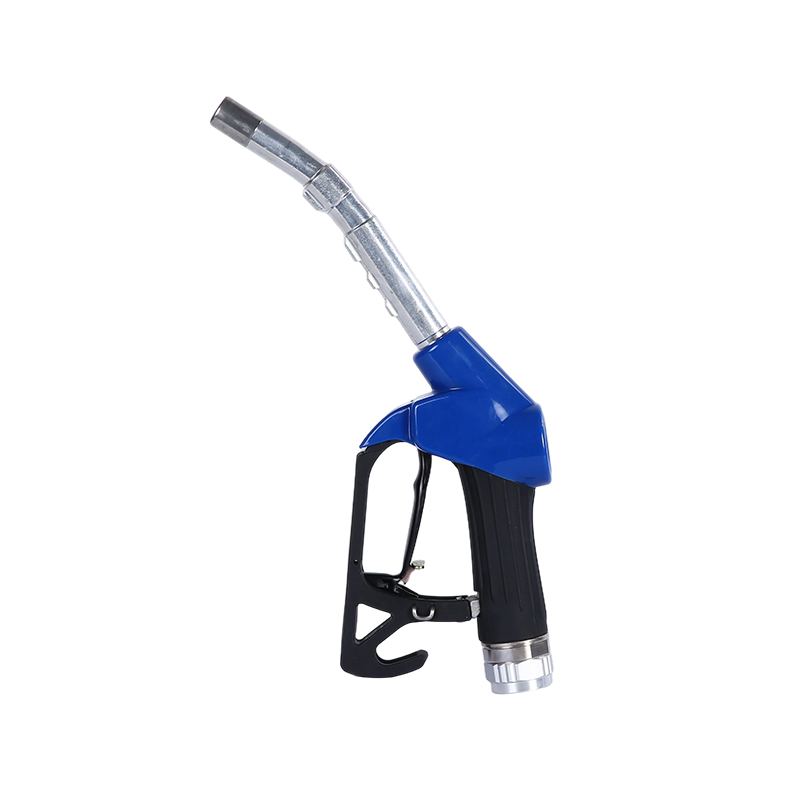

HBZVA-60 / HBZVA-45 Automatic Fuel Nozzles
Compact ZVA-Style Fuel Nozzles for Global Retail & Commercial Fueling
The HBZVA-60 and HBZVA-45 Automatic Fuel Nozzles are modern ZVA-style fueling solutions developed for today’s fuel retail and light commercial applications. With a compact body, reduced weight, and smooth handling, this series is ideal for operators who value comfort, durability, and consistent automatic shut-off performance.
Across global markets, this product is known by many different names. In Europe, it is commonly referred to as a ZVA nozzle, EN 13012 automatic fuel nozzle, or petrol station dispensing nozzle. In North America, users often search for automatic gasoline nozzle, diesel pump nozzle, or service station fuel nozzle. In Asia, the Middle East, Africa, and South America, it is widely called a fuel dispensing gun, automatic oil nozzle, or commercial fuel nozzle. Regardless of terminology, all refer to the same need: safe, efficient, and user-friendly fuel dispensing.
Designed for Daily Fueling Efficiency
The HBZVA-60/45 Series is engineered for frequent use at fuel stations, private depots, fleet yards, and light industrial fueling points. Its ergonomic aluminum body ensures easy maneuverability, reducing operator fatigue during repeated refueling operations.
Two outlet sizes are available to suit different vehicle applications:
HBZVA-60 for higher flow requirements
HBZVA-45 for controlled fueling and smaller filler necks
Both models support 1-inch BSPP, BSPT, or NPT threads, in male or female configurations, ensuring compatibility with international hose and swivel standards.
Reliable Automatic Shut-Off Technology
This series features a proven Venturi-type automatic shut-off system, delivering consistent and accurate cut-off when the tank reaches its fill level. This minimizes fuel spillage, reduces vapor loss, and improves overall safety during operation.
An integrated check valve helps prevent reverse flow, while the diaphragm-controlled vacuum system ensures stable performance even under varying pressure conditions.
Durable Construction with Premium Materials
Built for long service life, the HBZVA-60/45 nozzles use:
Aluminum body and spout for strength and lightweight handling
Steel lever with electrophoretic coating for wear resistance
High-strength composite guard to protect both nozzle and vehicle
Optional stainless steel spout tip for enhanced abrasion resistance
Internal components and swivel joints are manufactured from stainless steel, brass, and gunmetal, while steel parts are galvanized and chromated to resist corrosion in harsh fueling environments.
Sealing materials include NBR as standard, with Viton (FKM) available for higher chemical resistance.
Operator Comfort & Flow Control
The HBZVA-60/45 Series is designed with usability in mind. A soft PVC hand insulator improves grip and thermal comfort, while the three-position flow latch allows operators to regulate dispensing speed easily. For markets where latch use is restricted, the latch pin can be removed to meet local regulations.
A built-in strainer (25 mesh) protects downstream systems by filtering debris, helping extend the life of pumps and meters.
Compliance, Color Options & Easy Maintenance

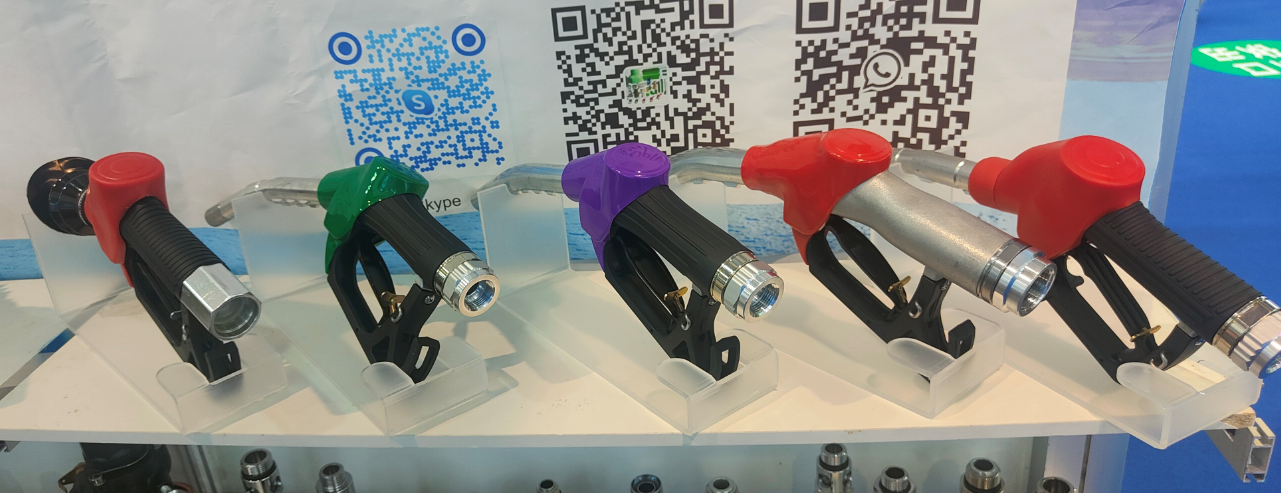

Fully compliant with EN 13012, this series meets international safety and performance requirements. Multiple color options—including red, green, blue, black, yellow, silver, and gold—support fuel identification and branding needs.
All major components, such as the spout, diaphragm assembly, main valve, and lever mechanism, are individually replaceable, reducing maintenance costs and downtime. Replacement parts are fully compatible across the HBZVA-XX nozzle family, making inventory management simpler.
A Trusted Automatic Fuel Nozzle for Global Markets
Whether known as a ZVA nozzle, automatic fuel nozzle, petrol pump gun, or diesel dispensing nozzle, the HBZVA-60/45 Series delivers dependable performance in everyday fueling operations. Combining compact design, proven shut-off technology, durable materials, and global compliance, it is a cost-effective and reliable choice for fuel stations and commercial users worldwide.
