High-Vibration Resistant Angle & Anti-Siphon Check Valve for Fuel Suction Systems
Fuel safety and reliability are critical for storage tanks, commercial fleets, and industrial fueling systems. The HBDJF Series Angle Check Valves are engineered to maintain one-way fuel flow, prevent backflow, and protect equipment in high-vibration environments. Positioned on fuel suction lines or atop storage tanks, these valves combine robust construction with precision functionality to ensure long-lasting performance.
Global Names and Recognition
This valve is known by multiple names across different regions and industries:
United States: “angle check valve” or “suction line check valve.”
United Kingdom / Europe: “elbow non-return valve” or “fuel line one-way valve.”
Japan: “燃料用角形逆止弁”
Functional Name / Industry Term: Often called an “anti-siphon valve”, highlighting its ability to prevent unwanted siphoning from fuel tanks.
By including the anti-siphon function, HBDJF valves not only prevent backflow under normal operation but also protect tanks from accidental fuel loss due to siphoning, making them ideal for both commercial and industrial use.
Key Features and Benefits

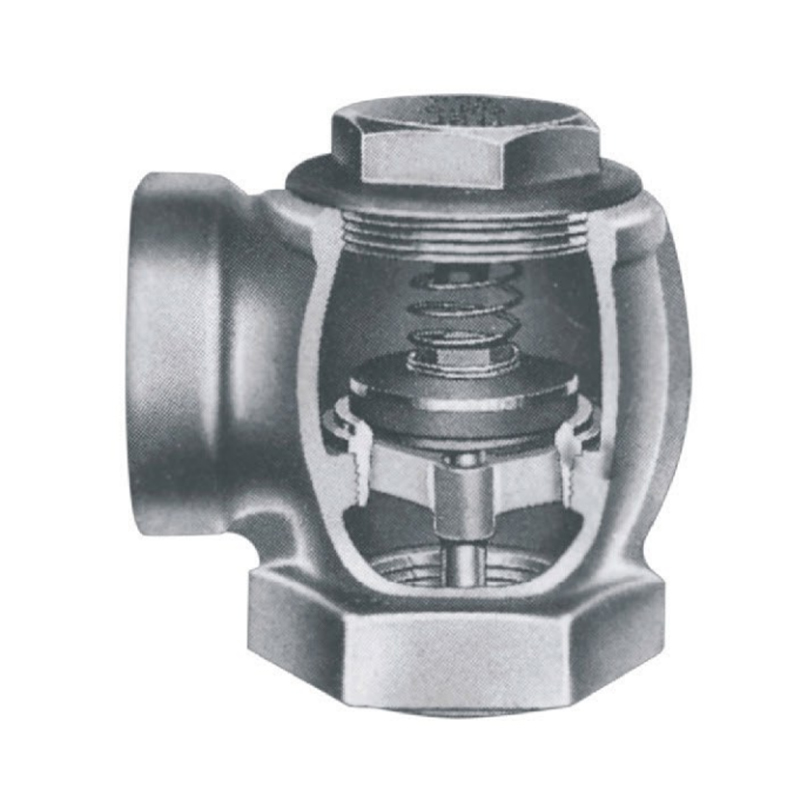

Design & Operation: Single-poppet spring-loaded mechanism keeps the valve closed even in high-vibration areas, ensuring continuous one-way flow.
Material Excellence: Valve body crafted from cast iron with electrophoretic plating; valve, seat, and cap made of brass; stainless steel springs for durability; Buna-N seals and discs provide chemical resistance and easy maintenance.
Pressure and Flow: Recommended for suction lines not exceeding 34 ft of head (~15 psi), perfect for typical fuel storage and transfer setups.
Thread Compatibility: Multiple inlet/outlet thread options in NPT and BSP (sizes 1.5”–2”) allow easy integration into tank bungs and piping systems.
Color Coding: Standard black finish for industrial identification and visual inspection.
Global Applications & User Experiences
In the USA, convenience store operators rely on “angle check valves” to prevent backflow during high-volume dispensing.
In Germany, fleet maintenance teams use “elbow non-return valves” in fueling systems to secure safe operation under vibration-heavy environments.
In Japan, refinery engineers appreciate “燃料用角形逆止弁” for its compact, reliable design.
Across many regions, operators search for “anti-siphon valves” when their priority is preventing unintentional fuel siphoning from storage tanks.
Why Choose HBDJF Angle & Anti-Siphon Valves
Each HBDJF valve is 100% factory-tested for consistent performance. Its combination of high-strength materials, precision spring-loaded poppet, anti-siphon capability, and multiple thread options makes it a trusted solution for retail fueling stations, industrial tanks, and commercial fleet operations worldwide.
