Aluminum API Bottom Loading Adaptor with Sight Glass for Tank Truck Fuel Systems
In fuel transportation and loading operations, visual confirmation of fuel flow is becoming an increasingly important safety and control requirement. To meet this demand, the API bottom loading adaptor with sight glass offers operators real-time visibility during loading and unloading, helping reduce operational errors and improve on-site safety.

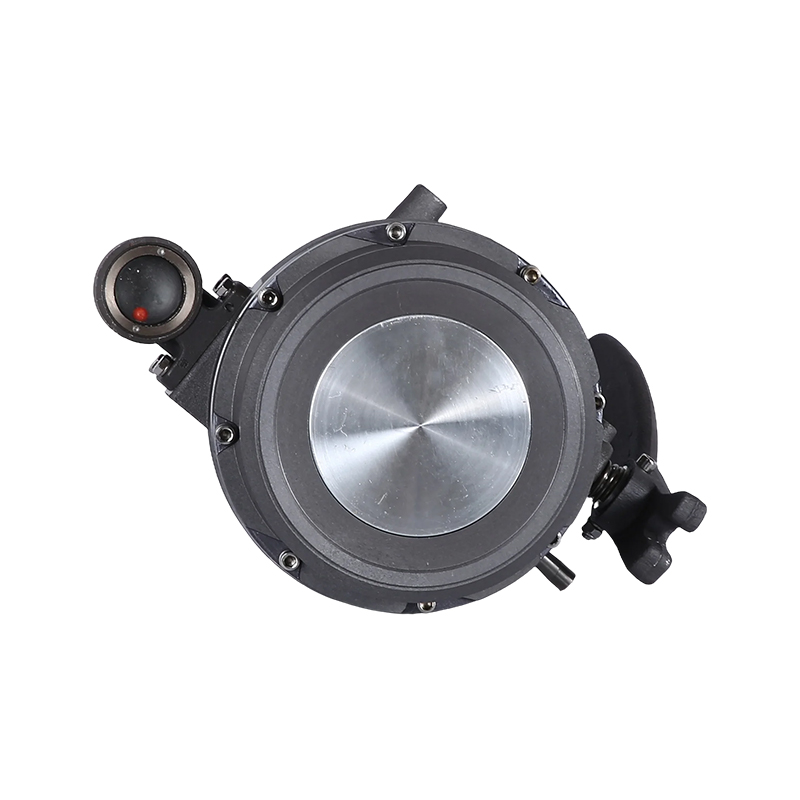

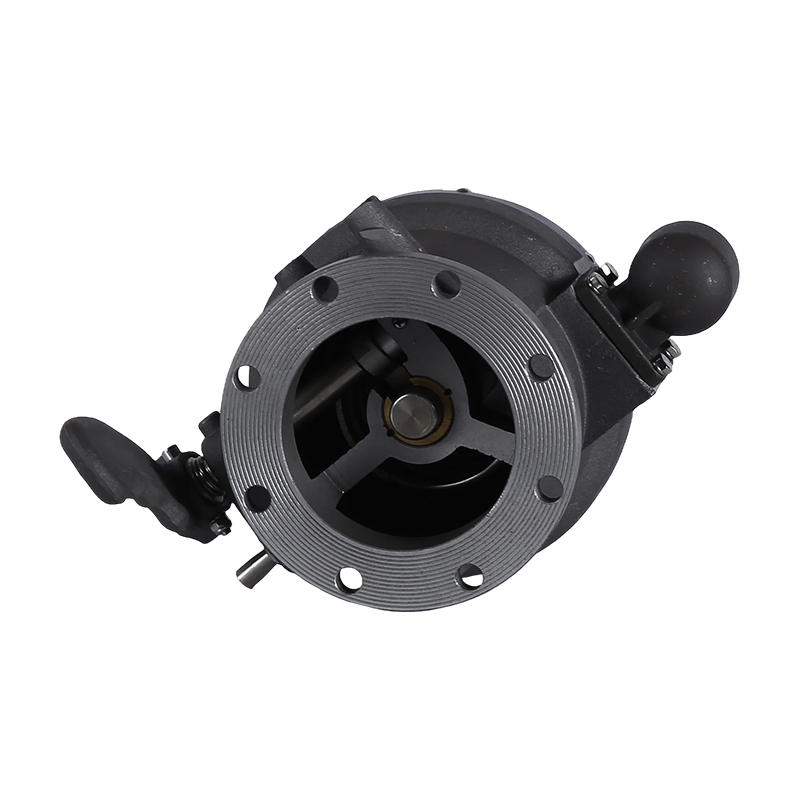

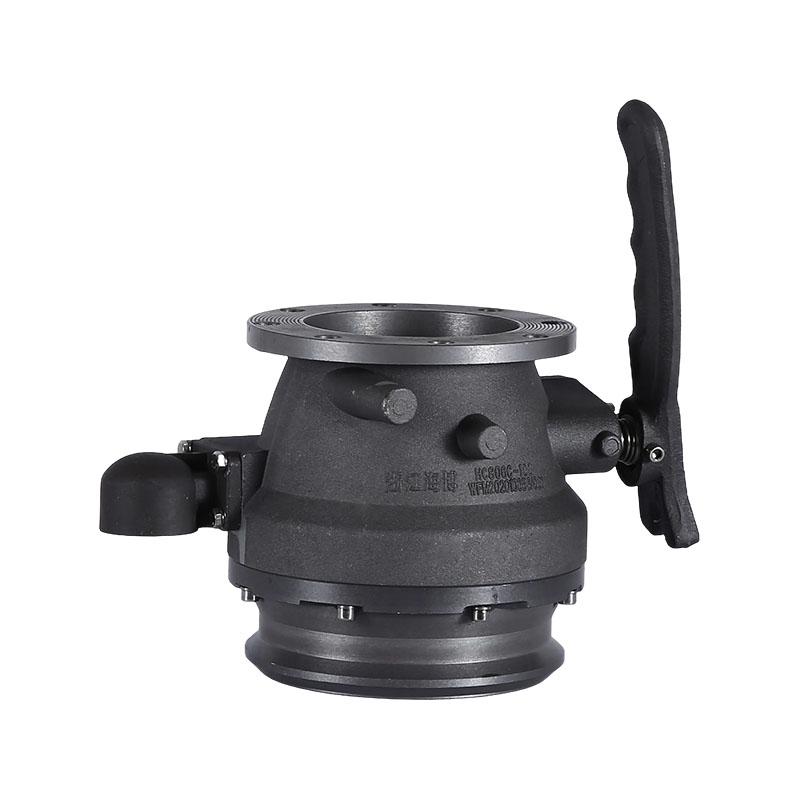

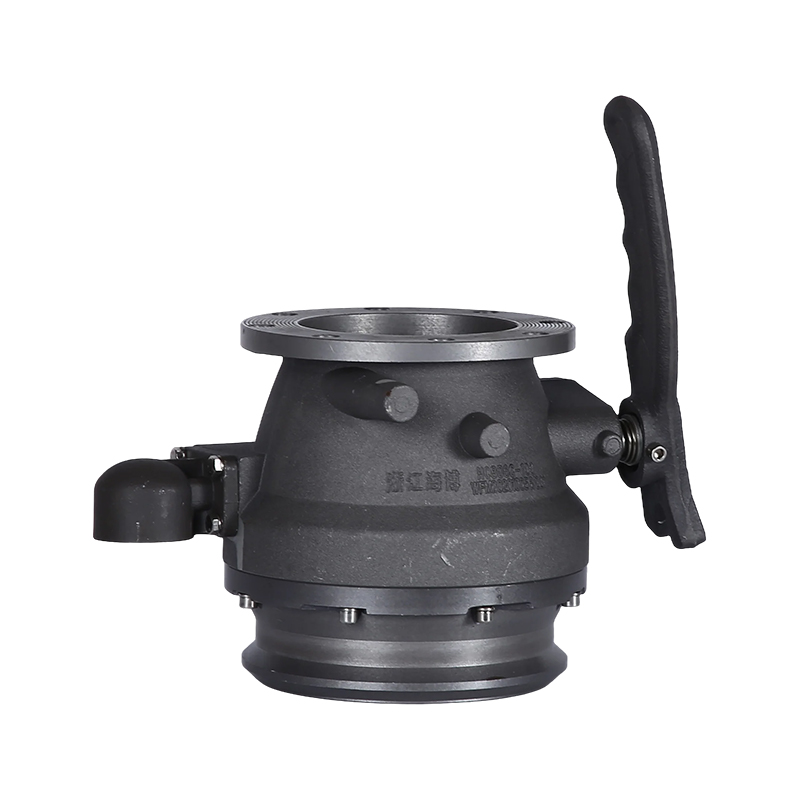

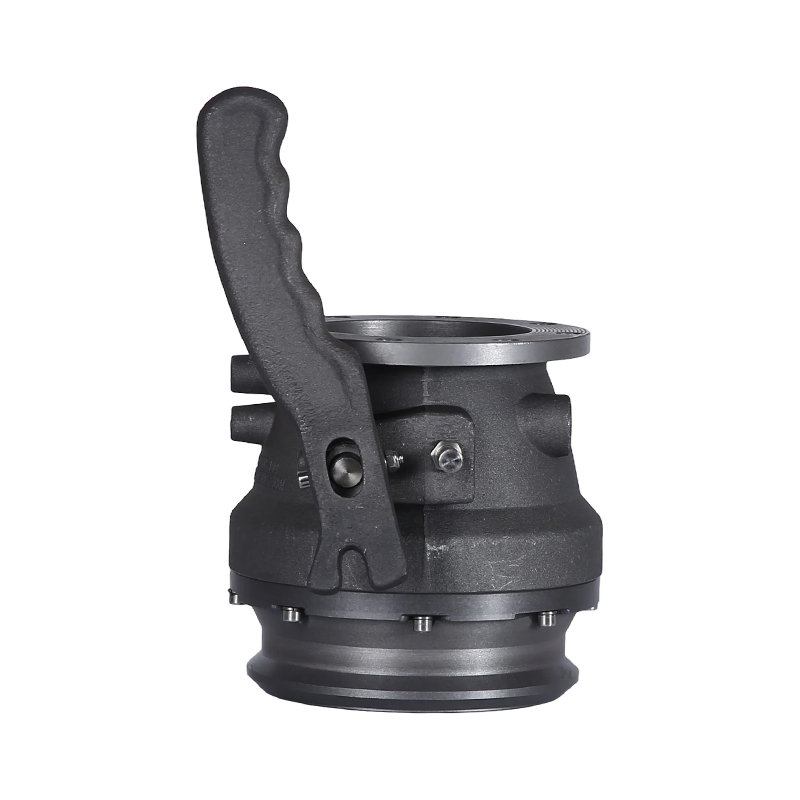

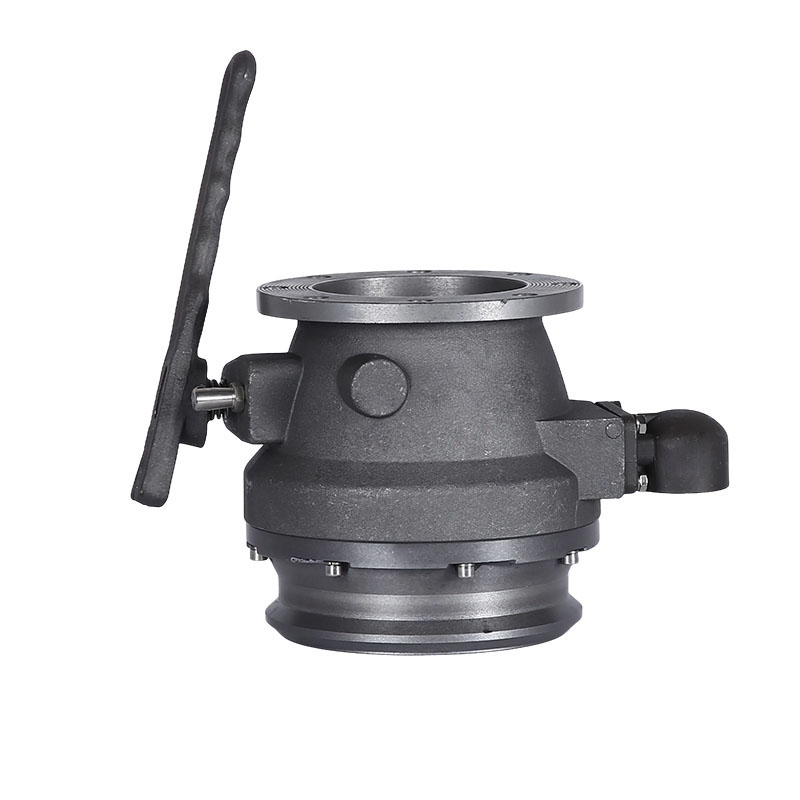

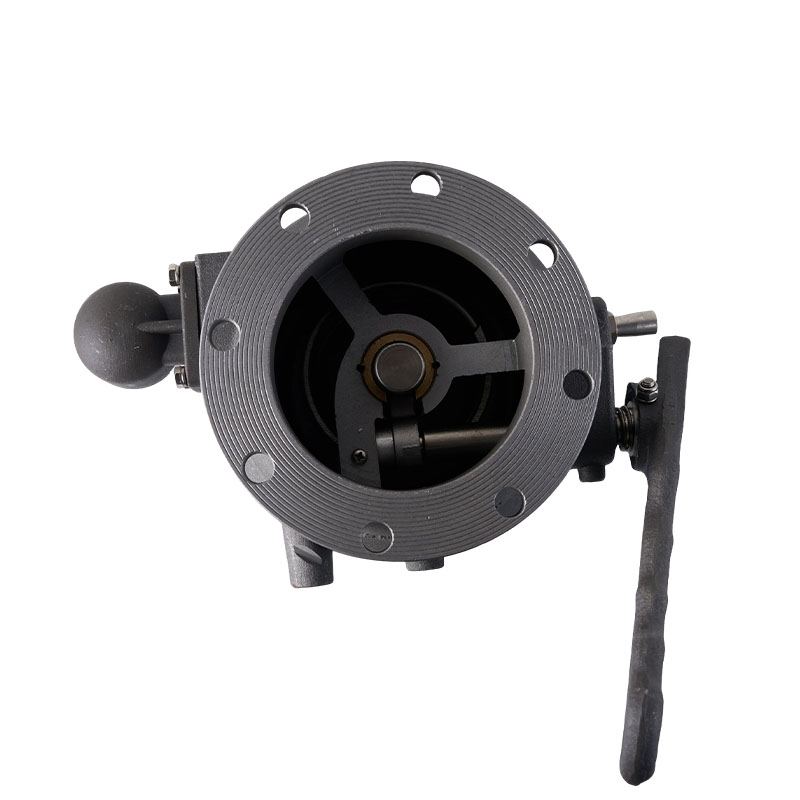

The HBC806A-100 API Bottom Loading Adaptor with Sight Glass is designed for installation at the bottom outlet of tanker trucks and is widely used in the transfer of diesel, gasoline, and other petroleum-based liquids. Compared with standard bottom-loading adaptors, this model integrates a transparent sight glass window, allowing operators to directly observe fluid movement inside the adaptor during operation.
Globally, this type of equipment may be referred to by different names depending on region and industry, such as:
API Bottom Loading Adaptor with Sight Glass
Fuel Bottom Loading Valve with Flow Indicator
API Tank Truck Bottom Connector with Visual Window
Bottom Loading Coupling with Sight Flow Glass
Oil Tanker Bottom Loading Connector with Inspection Window
Although terminology varies, the core function remains the same: secure connection, high-flow fuel transfer, and enhanced operational visibility.
The adaptor is manufactured with a high-strength aluminum alloy body, optimized for frequent connection cycles at loading racks and fuel depots. The internal flow channel is designed to support large-volume fuel transfer while maintaining stable flow characteristics, helping reduce pressure fluctuation during high-speed loading operations.
A flat-bottom outlet structure is used to minimize residual fuel leakage when the hose adaptor is disconnected, supporting cleaner and safer loading areas. The integrated sight glass further enhances control by allowing operators to visually confirm flow start, flow stability, and flow completion without relying solely on external meters.
To simplify maintenance, the adaptor features a split-body design, enabling seal replacement without removing the entire unit from the tank truck. This reduces downtime and maintenance costs, especially for fleet operators managing high-utilization vehicles.
For applications requiring advanced safety management, an optional air interlock valve can be added to integrate with loading rack control systems. This ensures that fuel transfer only occurs under correct connection conditions, meeting the safety expectations of markets in North America, Europe, the Middle East, and Asia-Pacific.
Manufactured in accordance with API RP1004 interface standards, the HBC806A-100 is fully compatible with standard API couplers and hose adaptors used worldwide. With the added benefit of visual flow monitoring, this model is particularly suitable for fuel depots, oil terminals, tanker truck manufacturers, petroleum logistics companies, and loading rack system integrators seeking higher operational transparency and control.
