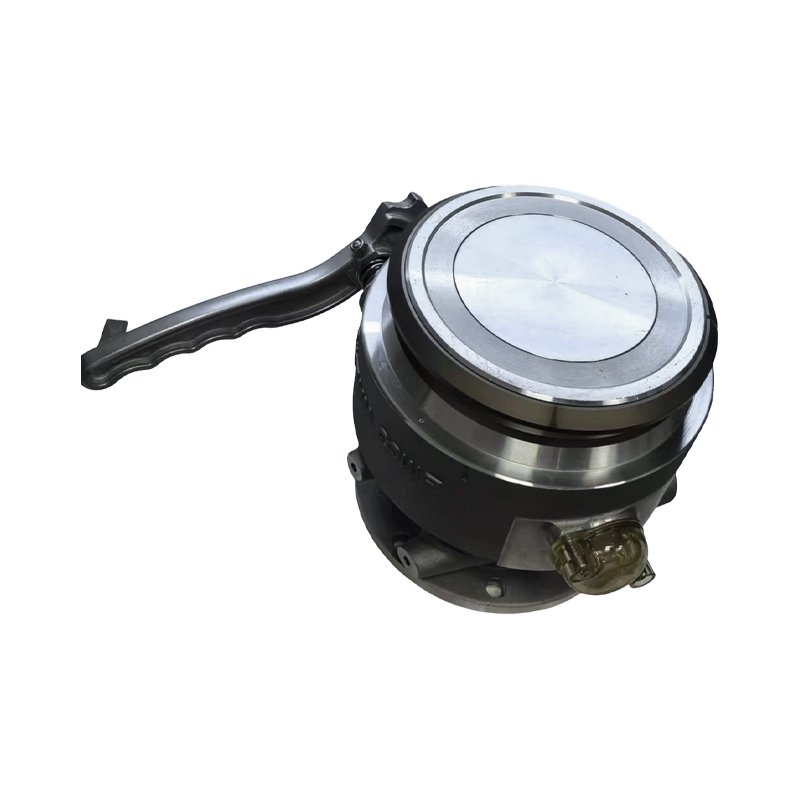

Modular Aluminum API Bottom Loading Adaptor for Tanker Truck Fuel Handling
In modern fuel logistics, operators require flexible and reliable bottom-loading solutions that can adapt to different terminal requirements and operational practices. The HBEM5000 API Bottom Loading Adaptor has been engineered with modularity in mind, allowing it to be configured with or without a sight glass, while maintaining maximum safety and high flow efficiency.
This adaptor is mounted at the bottom outlet of road tankers and serves as the critical connection during both loading at fuel terminals and gravity discharge at service stations. It is ideal for handling diesel, gasoline, and other refined petroleum products, where smooth, controlled flow and operational reliability are essential.
Depending on regional terminology and industry conventions, this type of bottom-loading fuel adaptor may be referred to by several names. In some markets, it is called an API bottom loading adaptor, tank truck bottom loading valve, or API fuel loading connector. In other regions, terms such as bottom discharge coupling for road tankers, fuel transfer adaptor for loading racks, or petroleum bottom loading interface are commonly used.
Despite the variations in naming, all of these products serve the same essential purposes: providing a secure connection between fuel transport and storage systems, minimizing pressure drop during loading, extending service life, and simplifying maintenance for tank trucks, loading racks, and petroleum handling operations.
Key Advantages and Features
1. Sight Glass Flexibility
The HBEM5000 includes a dedicated platform for an optional sight glass, enabling operators to visually monitor fuel flow. Depending on site requirements, the adaptor can be used with or without the sight glass, offering unmatched flexibility for diverse operational environments.
2. Replaceable High-Wear Snap Ring
A black hard-anodized aluminum alloy snap ring is used at the coupling interface. As a component subject to wear, it is fully replaceable, allowing maintenance without replacing the entire adaptor. This feature significantly extends product life and reduces long-term operating costs.
3. Lightweight and Durable Construction
The adaptor body is made of lightweight die-cast aluminum, maximizing payload capacity while providing strength and durability. Stainless steel internal components further ensure reliable performance under heavy-duty operation.
4. Optimized Flow and Safety
Hydrodynamic design minimizes pressure drop, supporting high-volume fuel transfer. The flat-bottom valve structure ensures complete drainage after unloading, reducing residual fuel and enhancing workplace safety. Optional top-mounted air interlock systems can integrate with loading rack controls to prevent misoperation.
5. API Compatibility and Standardization
Manufactured in accordance with API RP1004, the HBEM5000 ensures full compatibility with standard API couplers worldwide. Shared internal components across the series simplify maintenance planning and reduce spare parts inventory.
With its modular sight glass option, replaceable wear parts, and high-quality aluminum construction, the HBEM5000 API Bottom Loading Adaptor is ideal for:
Fuel terminals and depots
Tanker truck manufacturers
Petroleum logistics operators
Loading rack system integrators
It delivers flexibility, long service life, safety, and efficiency, making it the top choice for modern fuel handling operations.
