Aluminum One-Way Ball Valve/Unloading Ball Valve for Fuel Transfer Systems

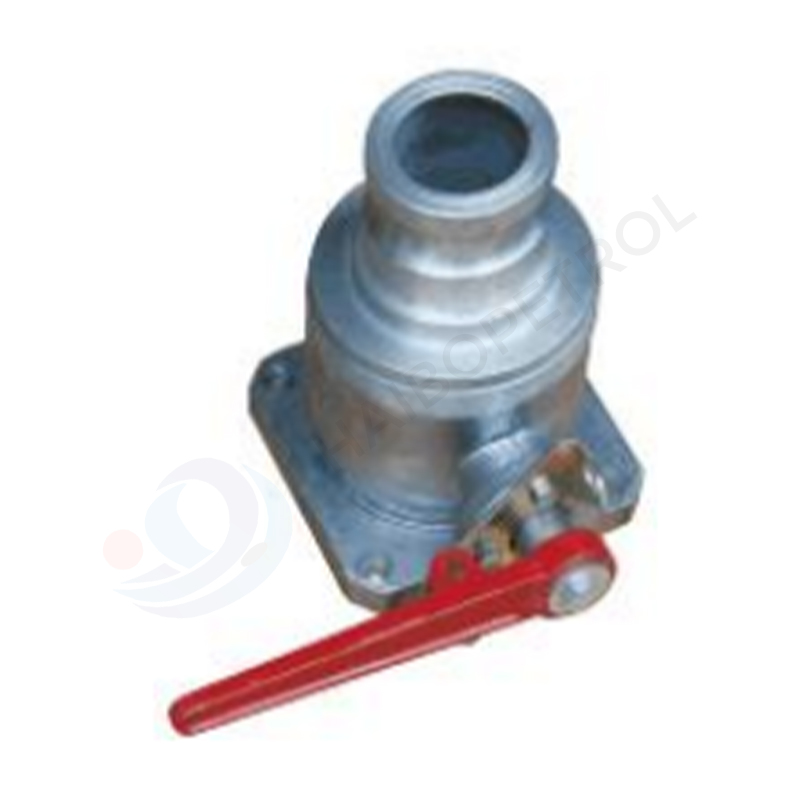

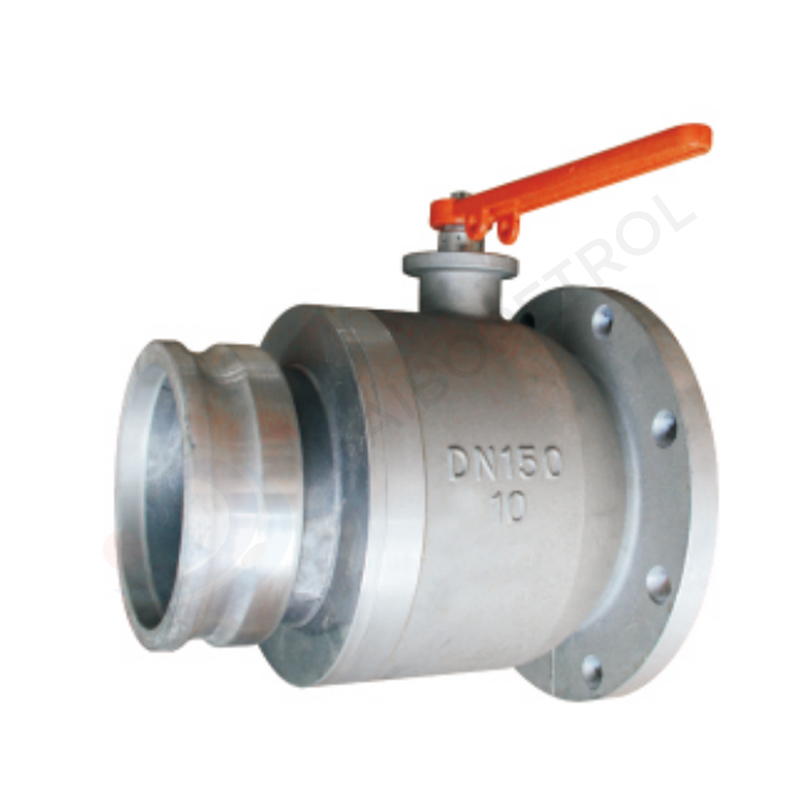

The HBBV-E Series One-Way Ball Valve with Male Cam-lock Coupling features a high-strength aluminum alloy body and a stainless steel ball core, offering a compact, lightweight, and user-friendly design. Equipped with a limited-lever handle and locking mechanism, this valve ensures safe and reliable operation. It is widely used in oil depots, gas stations, and fuel tanker delivery pipelines, providing precise open-and-close control for non-corrosive liquids.
The valve body is made of durable aluminum, while the ball core is available in steel or stainless steel. Seals are constructed from Teflon and Buna-N, supporting a temperature range from -20°C to +70°C and operating pressures from 0.3 to 1.0 MPa. Available in diameters from 50 mm to 150 mm (2–6 inches), the HBBV-E operates manually and allows one-way fluid flow, preventing backflow and enhancing safety.
The internal sealing seat within the rotating flange allows torque adjustment of the handle and helps prevent leakage. The Cam-lock design facilitates quick assembly, disassembly, and maintenance, improving operational efficiency. Flange specifications can be customized according to client requirements, and the 4-inch (100 mm) flange side can be converted to a male threaded connection to connect with spill containers or pipeline systems. Maintenance is simple: damaged sealing rings or ball surfaces can be replaced or repaired easily.
Globally, this product is known by different names depending on the region. In North America, it is often called a “One-way Ball Valve with Cam-lock” or “Camlock Ball Valve.” In Europe, it may be referred to as a “Check Valve with Male Cam Coupling,” while in Asia and the Middle East, it is commonly known as a “Fuel One-Way Ball Valve with Quick Coupling” or “Tank One-Way Ball Valve,” ensuring users can quickly identify its purpose.
Ordering options include HBBV-E-50 (50 mm flange × 50 mm male, 125 mm hole center, 4 holes), HBBV-E-80 (80 mm flange × 80 mm male, 160 mm hole center, 4 holes), HBBV-E-100-80 (100 mm flange × 80 mm male, 180 mm hole center, 4 or 8 holes), and HBBV-E-150-100 (150 mm flange × 100 mm male, 240 mm hole center, 8 holes). Flange standards can be customized based on client requirements to meet specific pipeline or spill container connections.
The HBBV-E Series is ideal for fuel transfer pipelines in depots, gas station fuel delivery, and tanker connections. Its one-way control design prevents backflow, reduces leakage risks, and minimizes operator exposure to fuel vapors. The Cam-lock connection simplifies loading, unloading, and maintenance while providing a reliable, long-lasting, and efficient fluid control solution.
Whether for new station construction, tank upgrades, or routine maintenance, the HBBV-E Series One-Way Ball Valve with Male Cam-lock Coupling offers dependable performance and safety, making it an essential component in modern fuel handling systems worldwide.
