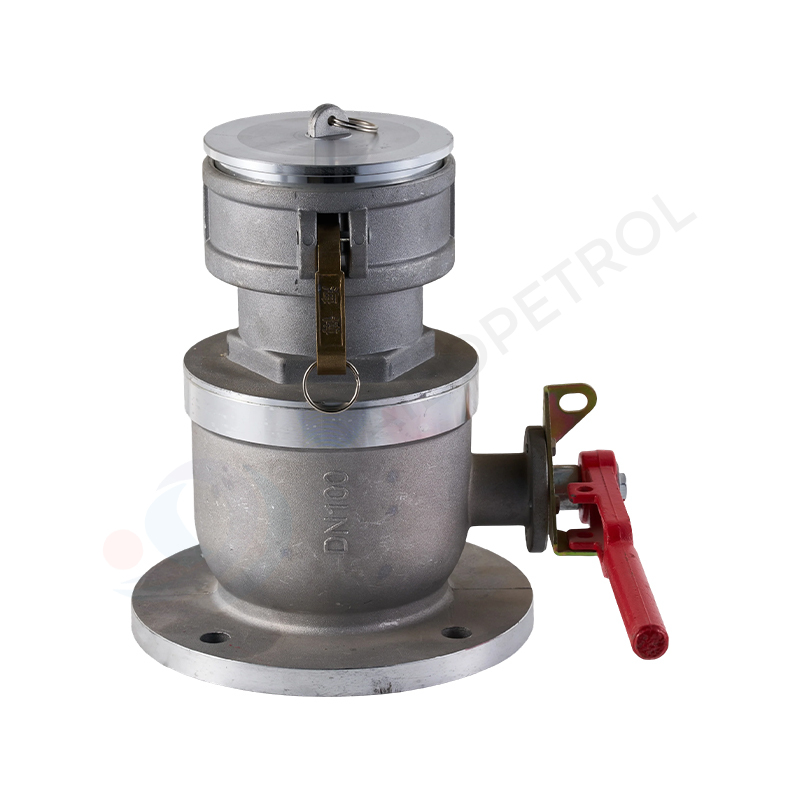

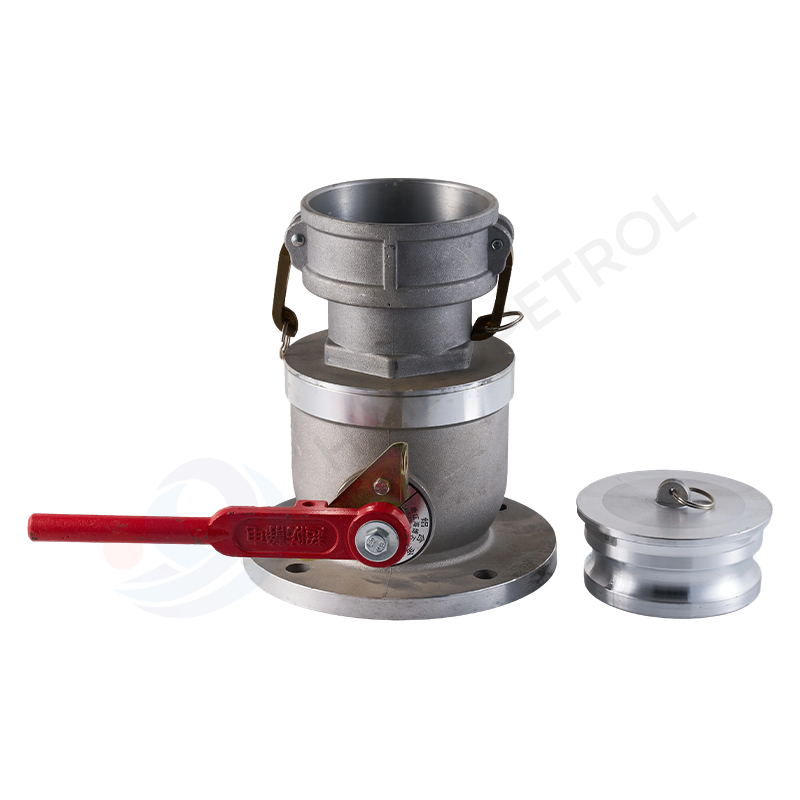

Compact Aluminum One-Way Ball Valve with Female Cam-lock Coupling for Fuel Handling Systems
The HBBV-C Series One-Way Ball Valve with Female Cam-lock Coupling is designed for efficient and safe control of non-corrosive liquid transportation pipelines. Constructed with a durable aluminum alloy housing and a corrosion-resistant stainless steel or steel ball core, this valve combines compact design, lightweight structure, and reliable operation, making it an ideal solution for oil depots, gas stations, and fuel tank trucks. Safety is enhanced by a limited-lever handle and locking mechanism, ensuring secure operation during opening and closing cycles.
This series supports manual operation with a one-way flow design, effectively preventing backflow and reducing leakage risks. Sealing is achieved through Teflon and Buna-N gaskets, while the operating temperature ranges from -20°C to +70°C and working pressures from 0.3 to 1.0 MPa. The HBBV-C valves are available in multiple diameters from 50 mm to 150 mm (2–6 inches) to accommodate a variety of pipeline systems. Flange configurations include standard round flanges, with options for 4-inch or 100 mm connections to allow compatibility with spill containers and other fuel system components.
The rotating flange features an internal sealing seat, enabling torque adjustment to optimize handle operation and minimize potential leaks. The Cam-lock design provides fast and convenient installation and removal, simplifying both loading/unloading operations and maintenance. In case of wear or damage to the ball surface or sealing ring, individual components can be replaced, extending the service life of the valve and reducing downtime.
Across different regions, this valve is recognized by various names. In North America, it is commonly called a “Female Cam-lock Check Valve” or “Camlock Ball Valve with Female End.” In Europe, it may be referred to as a “One-Way Ball Valve with Female Cam Coupling,” while in Asia and the Middle East, it is often called a “Tank Fuel One-Way Valve” or “Female Quick-Connect Ball Valve,” making it easy for operators worldwide to identify its function and application.
Ordering options include HBBV-C-50 (50 mm flange × 50 mm female, 125 mm hole spacing, 4 holes), HBBV-C-100-80 (100 mm flange × 80 mm female, 180 mm hole spacing, 4 or 8 holes), and HBBV-C-150-100 (150 mm flange × 100 mm female, 240 mm hole spacing, 8 holes). Flange standards can be customized to meet specific system requirements, ensuring seamless integration with existing pipelines and spill container assemblies.
The HBBV-C Series One-Way Ball Valve with Female Cam-lock Coupling provides dependable, maintenance-friendly, and safe control for fuel transfer systems. Its combination of robust materials, versatile installation options, and global recognition makes it an essential component for modern fueling infrastructure and petroleum handling applications.
