Double Plane Fuel Hose Swivels

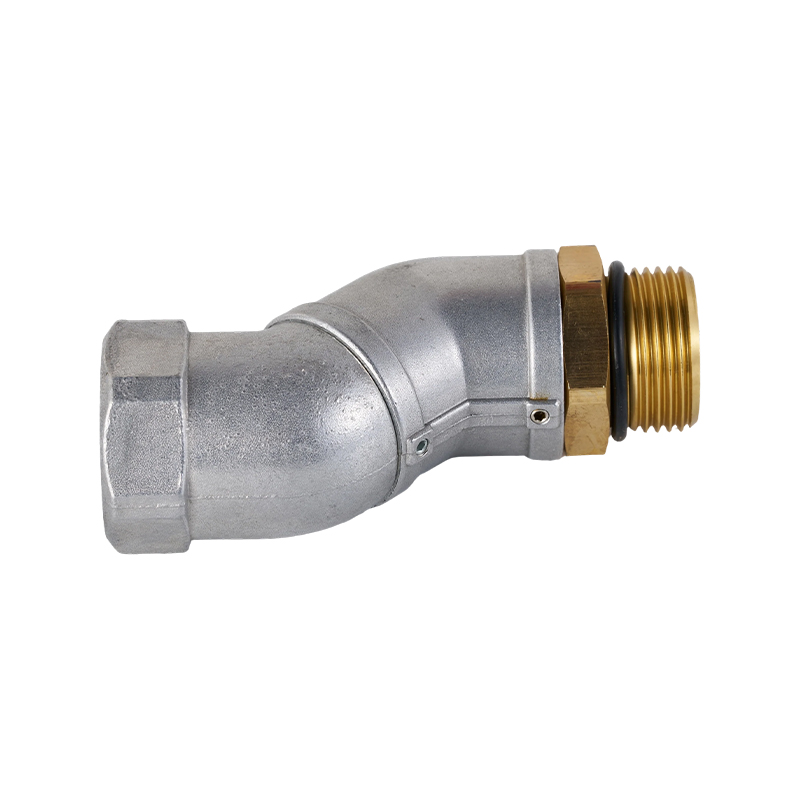

HBA45 Series Fuel Hose Swivels

Premium Rotating Hose Connectors for Efficient Fueling

The HBA45 series fuel hose swivels are engineered for self-service fueling stations and commercial refueling environments, providing convenience, flexibility, and extended hose life. Installed between the fuel hose and nozzle, these swivels minimize hose stress, reduce wear and tear, and ensure smoother handling for operators.

Global Names and Recognition
This type of swivel is recognized differently around the world:
Europe: Often called “fuel nozzle swivel” or “fuel hose adapter.”
North America: Commonly referred to as “fuel hose swivel connector” or “rotating nozzle adapter.”
Middle East & Africa: Known as “rotary fuel hose connector” or “fuel hose swivel coupling.”
South America & Asia: Frequently called “rotating hose connector,” “fuel hose swivel adapter,” or “double plane swivel.”
Despite varying terminology, the core function is consistent: providing smooth rotation, reducing hose strain, and extending service life.

Technical Specifications & Materials
Max Flow Rate: 3/4" hose – 60 L/min; 1" hose – 120 L/min
Body Material: Aluminum alloy
Outlet Adapter: Brass
Inlet Adapter: Aluminum alloy
Seal Options: Buna-N or Fluorosilicone
Temperature Performance: Reliable operation in low temperature conditions
The swivels allow full 360° rotation at the nozzle inlet, keeping the nozzle upright and comfortable during fueling while reducing hose kinks and stress.

Applications & Compatibility
Standard fuel (up to 15% ethanol)
Low-temperature fuel environments
Compatible with various international fuel hose and nozzle standards

Packaging
3/4" Swivel: 32cm × 25cm × 22cm, 50 pcs/carton, 12 kg/carton
1" Swivel: 37cm × 26cm × 26cm, 50 pcs/carton, 17.3 kg/carton

Key Advantages
360° smooth rotation reduces hose twisting and wear
Durable aluminum and brass construction for long-term use
Reliable low-temperature performance
Multiple interface options for global compatibility
Ideal for self-service stations, commercial fleets, and industrial fueling operations

Why Choose HBA45 Series
The HBA45 series offers a reliable, high-performance solution for modern fueling systems. By reducing hose strain and enhancing durability, it improves operator comfort, lowers maintenance costs, and ensures safe and efficient refueling for any station or fleet worldwide.
