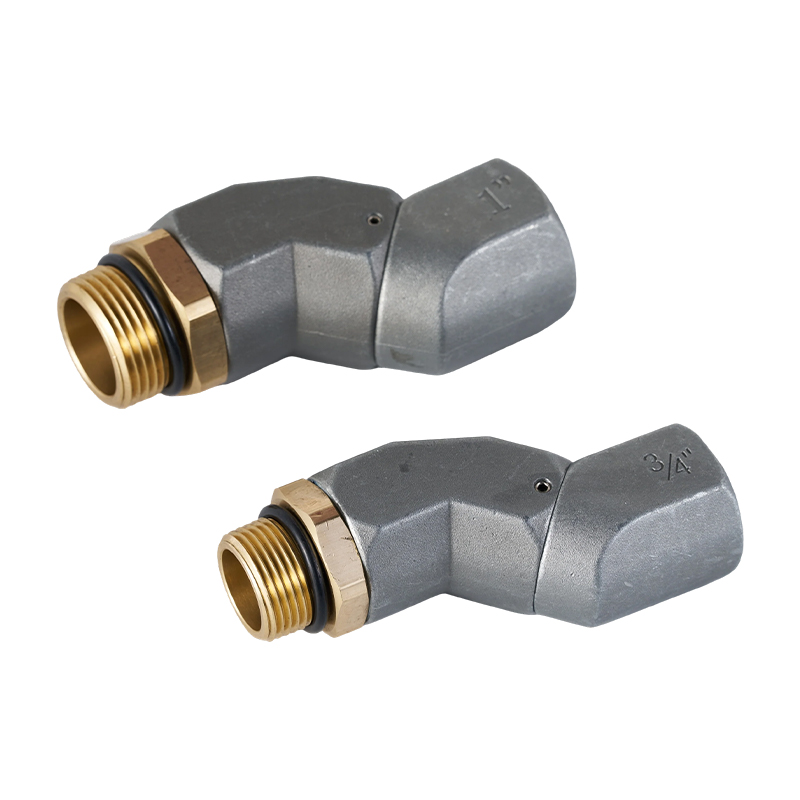

HBB45 Series Dual-axis Hose Swivel

HBB45 Series Fuel Hose Swivels (OPW Type)

Double Plane Rotation for Enhanced Fueling Efficiency
The HBB45 series swivels are engineered using advanced American technology, designed specifically for self-service fuel stations and commercial refueling points. Positioned between the fuel hose and nozzle, these swivels reduce hose stress, prevent unnecessary wear, and allow smoother operation while extending hose life.

Global Terminology and Recognition
Operators around the world refer to this type of swivel in various ways:
Europe: Often called “fuel hose swivel” or “OPW nozzle adapter.”
North America: Commonly known as “double plane swivel” or “rotating fuel hose connector.”
Middle East & Africa: Referred to as “rotary nozzle coupling” or “fuel hose swivel adapter.”
South America & Asia: Frequently called “nozzle swivel connector,” “dual-axis hose swivel,” or “fuel hose rotation joint.”
While the terminology differs, the function is universal: enabling smooth, flexible fueling operations while reducing hose fatigue and improving longevity.

Technical Specifications

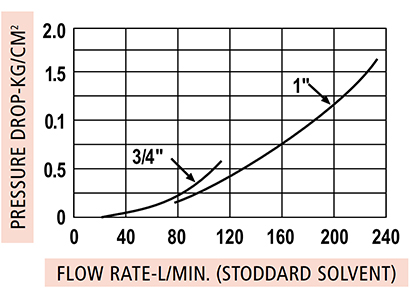

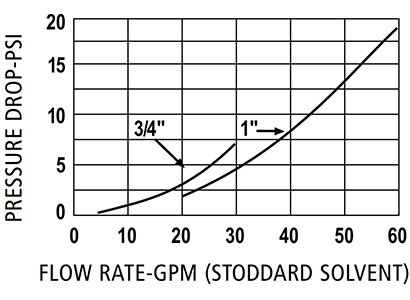

Max Flow Rate: 3/4” – 60 L/min, 1” – 120 L/min

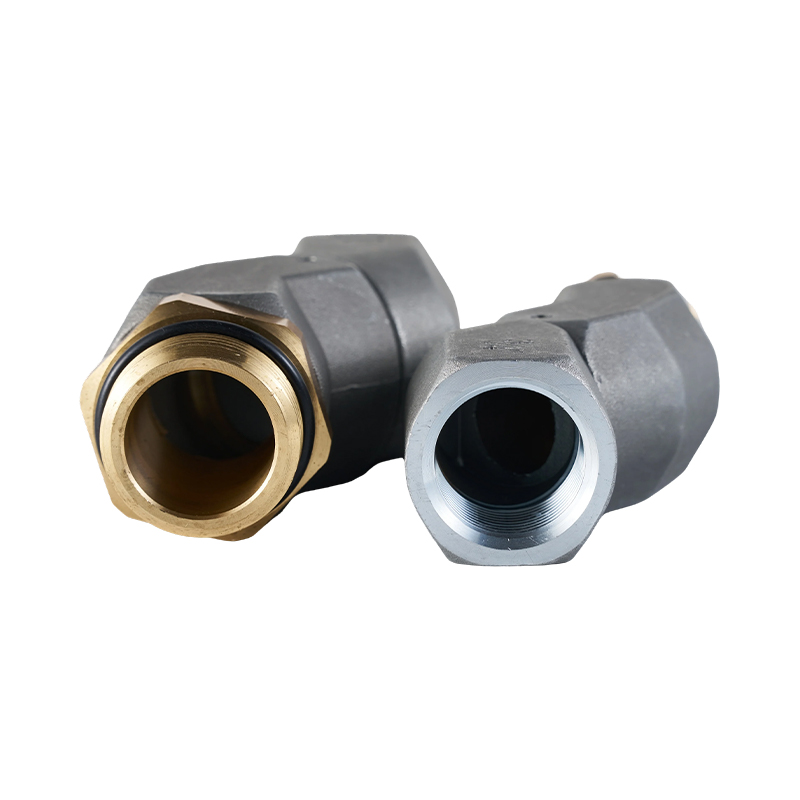

Body Material: Zinc alloy
Inlet Adapter: Zinc
Outlet Adapter: Brass
Seal Options: Buna-N or Viton
Max Working Pressure: 3.45 bar (50 psi)

Key Features
Double-plane rotation for easier nozzle positioning and reduced hose torque
Compact and visually appealing design for modern fueling stations
Smooth flow performance with minimal restriction for faster refueling
Compatible with gasoline, diesel, and fuels containing up to 10% ethanol
Supports frequent usage without compromising durability or performance

Applications
Self-service fueling stations
Fleet refueling and commercial sites
Industrial fueling operations
Any environment where hose flexibility, operator comfort, and reduced maintenance are essential

Packaging
3/4” Swivel: 32cm × 25cm × 22cm, 50 pcs/carton, 20.5 kg/carton
1” Swivel: 37cm × 26cm × 26cm, 50 pcs/carton, 25.4 kg/carton

Why Choose HBB45 Series
The HBB45 series double plane swivel provides a practical solution for fueling systems requiring flexibility, reliability, and enhanced flow efficiency. By reducing hose strain, improving nozzle maneuverability, and extending service life, these swivels enhance safety and operational efficiency in fuel stations worldwide.
Whether referred to as a double-plane swivel, OPW hose connector, or dual-axis nozzle adapter, the HBB45 series ensures smooth rotation, fast refueling, and a long-lasting, cost-effective solution for modern fueling operations.
