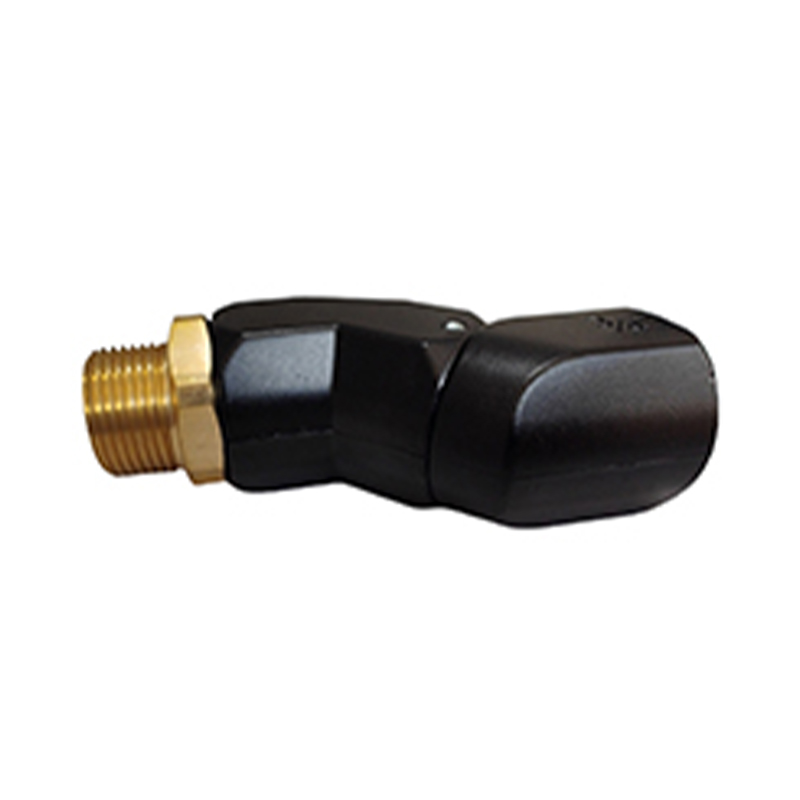

HBB45Y Series Double Plane Swivels (OPW Type)
Black Electrophoresis Finish for Enhanced Durability and Comfortable Handling
The HBB45Y Series swivel is engineered with advanced American design for gasoline self-service and commercial fueling applications. Installed between the fuel hose and nozzle, it effectively reduces hose strain and wear while providing dual-plane rotation for easy nozzle positioning, enhanced operator comfort, and longer hose life. The black electrophoresis treatment enhances corrosion resistance, improves appearance, and provides a superior grip.
Global Naming Variations
Due to regional terminology and common industry usage, this component is referred to by different names across global markets. In Europe, it is often described as a fuel hose swivel or an OPW-style double-axis nozzle connector. In North America, the terms double plane swivel and fuel nozzle rotary connector are more commonly used. Across the Middle East and Africa, it is typically known as a rotating hose adapter or fuel hose connector, while in Asia and South America, it may be identified as a double-plane nozzle swivel, black swivel connector, or simply a fuel hose joint.
Although the terminology varies by region, the underlying function remains consistent: allowing smooth hose rotation during fueling, minimizing hose twisting and mechanical stress, and helping extend the overall service life of the fuel hose.
Technical Specifications

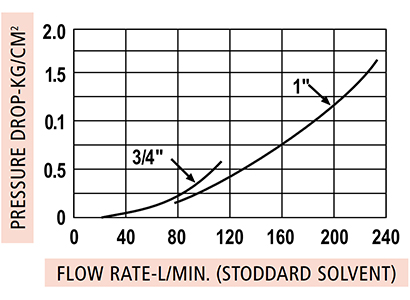

Max Flow Rate: 3/4” – 60 L/min, 1” – 120 L/min
Body Material: Zinc alloy with black electrophoresis finish
Inlet Connector: Zinc
Outlet Connector: Brass
Seal Material: Buna-N or Viton (optional)
Maximum Working Pressure: 3.45 bar (50 psi)
Key Features
Dual-plane rotation design for easier hose and nozzle handling
Black electrophoresis surface for improved corrosion resistance and aesthetics
Low flow restriction for faster refueling
Suitable for gasoline, diesel, and up to 10% ethanol blends
Compact, modern profile for enhanced visual appeal
Packaging Information
3/4” Swivel: 32cm × 25cm × 22cm, 50 pcs/carton, 20.5 kg/carton
1” Swivel: 37cm × 26cm × 26cm, 50 pcs/carton, 25.4 kg/carton
Ideal Applications
Self-service fuel stations
Commercial fleet refueling points
Industrial fuel dispensing systems
Locations requiring flexible hose operation and enhanced user comfort
Fueling facilities with high demands for durability and appearance
Advantages of HBB45Y Series
The HBB45Y Series builds on the traditional OPW double-plane swivel design with added black electrophoresis finish, offering superior corrosion resistance, durability, and improved operator grip. Whether referred to as a “Double Plane Swivel,” “black fuel nozzle connector,” or “fuel hose rotary joint,” this series provides smooth hose rotation, convenient fueling, and long-lasting performance, making it the ideal choice for fueling operations worldwide.
