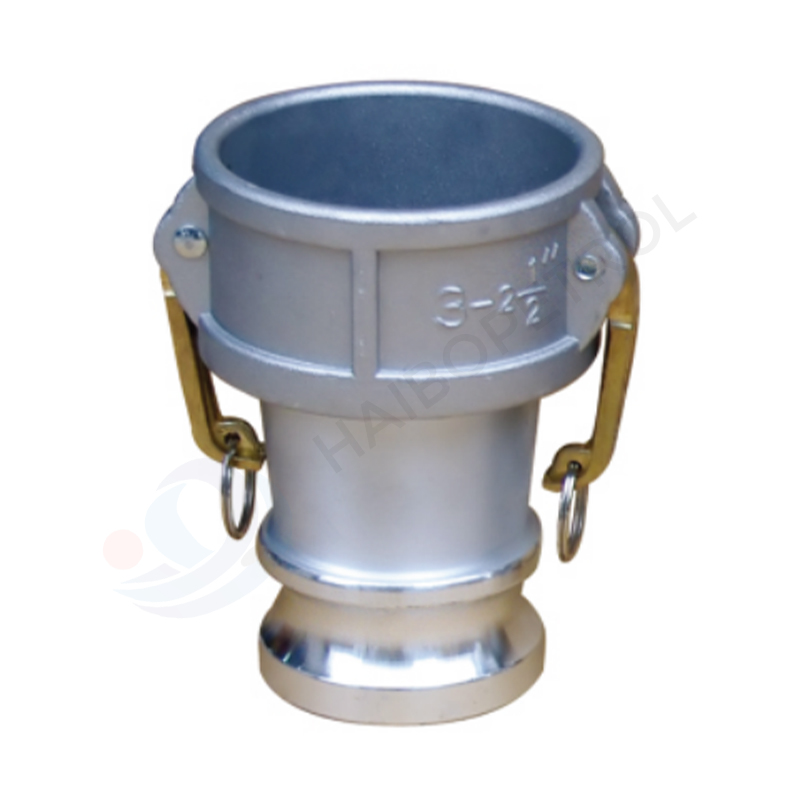

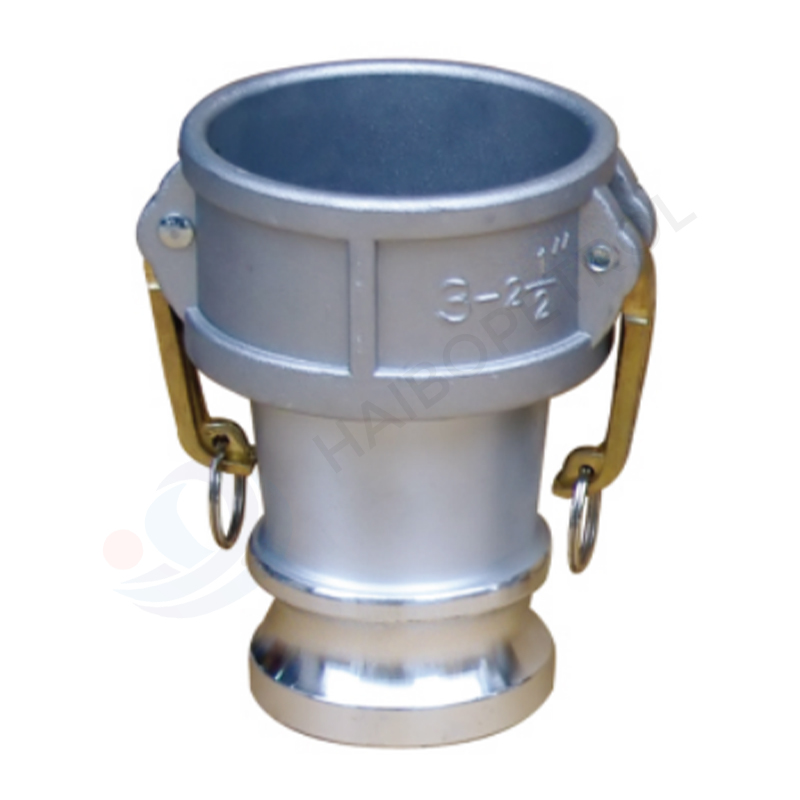

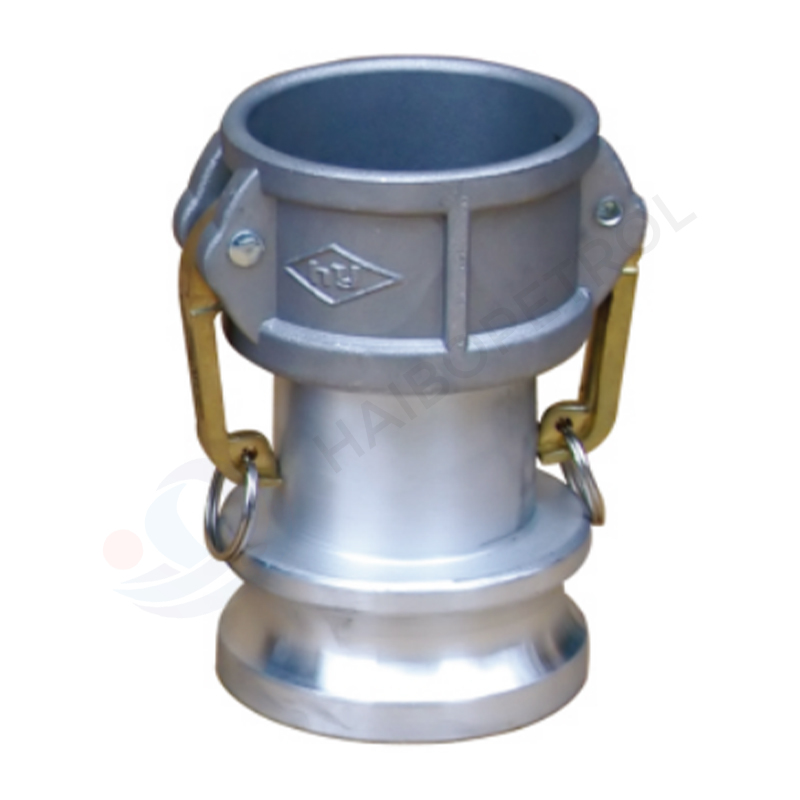

Aluminum Female to Male Cam-Lock Coupler – Industrial and Fuel Liquid Transfer Solution
The aluminum female-to-male Cam-Lock coupler is a highly adaptable and efficient liquid connection solution, specifically designed to directly connect a female Cam-Lock interface to a male Cam-Lock interface. Globally, this type of coupler is commonly referred to as a “Female to Male Camlock Coupling”, “Female to Male Quick Coupler”, or “Cam-Lock Adapter Female to Male”. It is widely used in petroleum, industrial chemicals, agricultural liquids, food and beverage, and other industrial fluid transfer systems, making it an essential component in modern liquid piping networks.
Material and Design Features
This series of couplers is made of high-strength aluminum alloy, offering both lightweight and corrosion-resistant properties suitable for harsh industrial environments. The handles are made of brass, ensuring durability and safety during repeated operation. The standard gasket is made of Buna-N (Nitrile Rubber), with an optional FPM/FKM (Fluororubber) available upon request to accommodate high-temperature or corrosive fluids. The standard working pressure is 0.6 MPa, suitable for a wide range of liquid transfer applications.
Precisely machined interfaces guarantee secure connections and reliable sealing. The quick-release Cam-Lock design allows fast assembly and disassembly, effectively reducing operational downtime.
Applications
This coupler series is widely applied in:
Fuel transfer systems: Gas stations, fuel trucks, and storage tanks
Chemical liquid pipelines: Suitable for industrial liquids (corrosive fluids require stainless steel custom materials)
Agricultural liquid fertilization and spraying systems
Food and beverage liquid transfer: Requires food-grade stainless steel material with food-grade gaskets
Temporary or mobile piping systems: Easy to install and dismantle
Emergency or multi-operator environments: Connects directly without additional adapters
Directly connecting female and male Cam-Lock interfaces eliminates the need for intermediate adapters, simplifying piping design and improving operational efficiency.
Common Sizes
ALFEMA-150-100: 1.5″ Female × 1″ Male
ALFEMA-150-150: 1.5″ Female × 1.5″ Male
ALFEMA-150-200: 1.5″ Female × 2″ Male
ALFEMA-200-100: 2″ Female × 1″ Male
ALFEMA-200-150: 2″ Female × 1.5″ Male
ALFEMA-200-200: 2″ Female × 2″ Male
ALFEMA-200-250: 2″ Female × 2.5″ Male
ALFEMA-200-300: 2″ Female × 3″ Male
ALFEMA-200-400: 2″ Female × 4″ Male
ALFEMA-250-100: 2.5″ Female × 1″ Male
ALFEMA-250-150: 2.5″ Female × 1.5″ Male
ALFEMA-250-200: 2.5″ Female × 2″ Male
ALFEMA-250-300: 2.5″ Female × 3″ Male
ALFEMA-250-400: 2.5″ Female × 4″ Male
ALFEMA-300-100: 3″ Female × 1″ Male
ALFEMA-300-150: 3″ Female × 1.5″ Male
ALFEMA-300-200: 3″ Female × 2″ Male
ALFEMA-300-250: 3″ Female × 2.5″ Male
ALFEMA-300-300: 3″ Female × 3″ Male
ALFEMA-300-400: 3″ Female × 4″ Male
ALFEMA-400-200: 4″ Female × 2″ Male
ALFEMA-400-250: 4″ Female × 2.5″ Male
ALFEMA-400-300: 4″ Female × 3″ Male
ALFEMA-400-400: 4″ Female × 4″ Male
ALFEMA-600-300: 6″ Female × 3″ Male
ALFEMA-600-400: 6″ Female × 4″ Male
ALFEMA-600-600: 6″ Female × 6″ Male
Custom sizes and specifications can be provided according to client requirements. Supplying detailed information about the fluid type and working pressure helps select the most suitable gasket materials and coupler design.
Product Advantages
Fast and reliable connection: Connects directly without additional adapters
Durable and lightweight: Aluminum alloy ensures long-term reliability and ease of use
Corrosion-resistant: Suitable for petroleum, chemicals, and other industrial fluids
Globally recognized terms: Female to Male Cam-Lock Coupling, Female to Male Quick Coupler, Cam-Lock Adapter Female to Male
Reliable sealing: Precision-machined interfaces with high-quality gaskets minimize leakage risk
