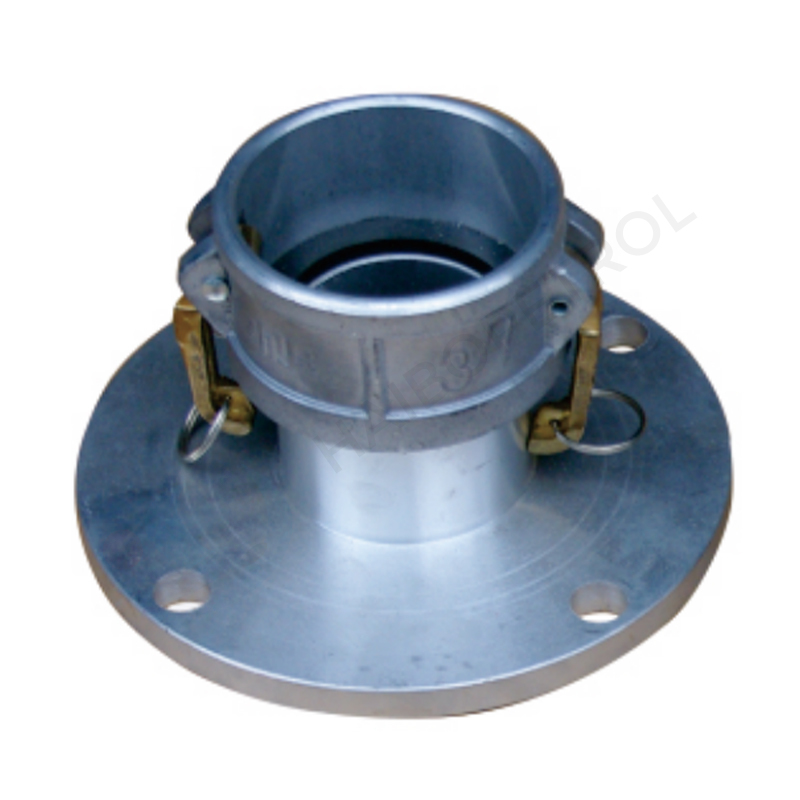

Aluminum Flange x Female Cam-Lock Coupling – Industrial Fluid and Fuel Transfer Solution
The Aluminum Flange x Female Cam-Lock Coupling is a high-efficiency, reliable pipeline connection solution, specifically designed to connect flange interfaces directly to female Cam-Lock fittings. Globally, this type of coupling is commonly referred to as a “Flange to Female Camlock Coupling”, “Flange to Female Quick Coupler”, or simply “Flange to Female Cam-Lock Connector”. It is widely used in petroleum, chemical liquids, food-grade fluids, and various industrial liquid transfer systems, making it an essential component in modern fluid transport networks.
Material and Design Features
This series is made of high-strength aluminum alloy, combining lightweight characteristics with excellent corrosion resistance, ensuring long-term mechanical durability. The handles are made of traditional brass, providing superior explosion-proof performance and robustness, effectively preventing handle breakage during operation and protecting operators from injury. Sealing gaskets are standard Buna-N (Nitrile Rubber), with FPM/FKM (Viton) options available upon request to suit different media and temperature conditions. The standard working pressure is 0.6 MPa, suitable for most liquid transfer applications.
Applications
The Aluminum Flange x Female Cam-Lock Coupling is widely applied in the following scenarios:
Fuel transfer systems: Gas stations, fuel tankers, and storage depots
Chemical liquid pipelines: Suitable for corrosive liquids (requires stainless steel versions)
Agricultural liquid fertilization and spraying systems
Food and beverage fluid transfer: Requires food-grade stainless steel and compatible gaskets
Temporary or mobile pipeline systems: Easy to assemble and disassemble
By directly connecting a flange to a female Cam-Lock fitting, this coupling eliminates the need for additional adapters or intermediary connectors, simplifying pipeline system design and maintenance while improving operational efficiency.
Common Specifications
ALFLFE-200: 2″ Flange × 2″ Female
ALFLFE-250: 2.5″ Flange × 2.5″ Female
ALFLFE-300: 3″ Flange × 3″ Female
ALFLFE-400: 4″ Flange × 4″ Female
ALFLFE-200-300: 2″ Flange × 3″ Female
ALFLFE-250-300: 2.5″ Flange × 3″ Female
ALFLFE-300-250: 3″ Flange × 2.5″ Female
ALFLFE-300-400: 3″ Flange × 4″ Female
ALFLFE-400-250: 4″ Flange × 2.5″ Female
ALFLFE-400-300: 4″ Flange × 3″ Female
Flange standards and special sizes can be customized according to customer requirements. Before placing an order, it is recommended to provide detailed flange specifications or technical drawings for reference.
Product Advantages
Quick connection: Supports rapid assembly and disassembly, improving pipeline operation efficiency
Lightweight and durable: Aluminum alloy ensures easy handling and long-lasting reliability
Safe and robust: Brass handles provide durability and superior explosion-proof performance
Excellent corrosion resistance: Suitable for petroleum, chemical liquids, and various other fluid media
Globally recognized terminology: Flange to Female Camlock Coupling, Flange to Female Cam-Lock Connector
Reliable sealing: Precision-machined interfaces combined with high-quality gaskets reduce leakage risk
