Precision Aluminum Overfill Shutoff Valve for Underground Fuel Tanks

Precision Aluminum Overfill Shutoff Valve for Underground Fuel Tanks

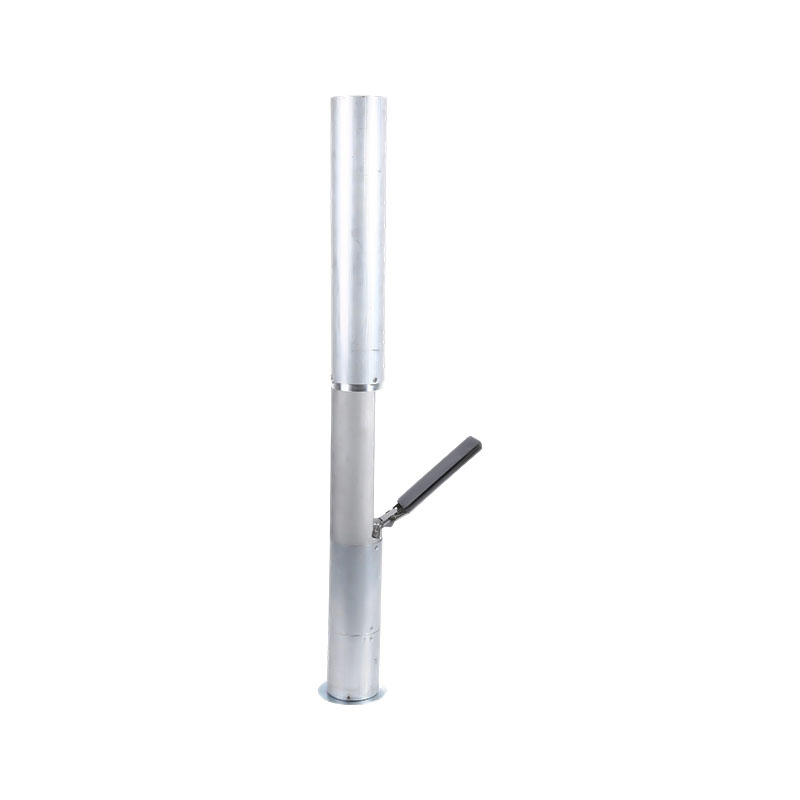

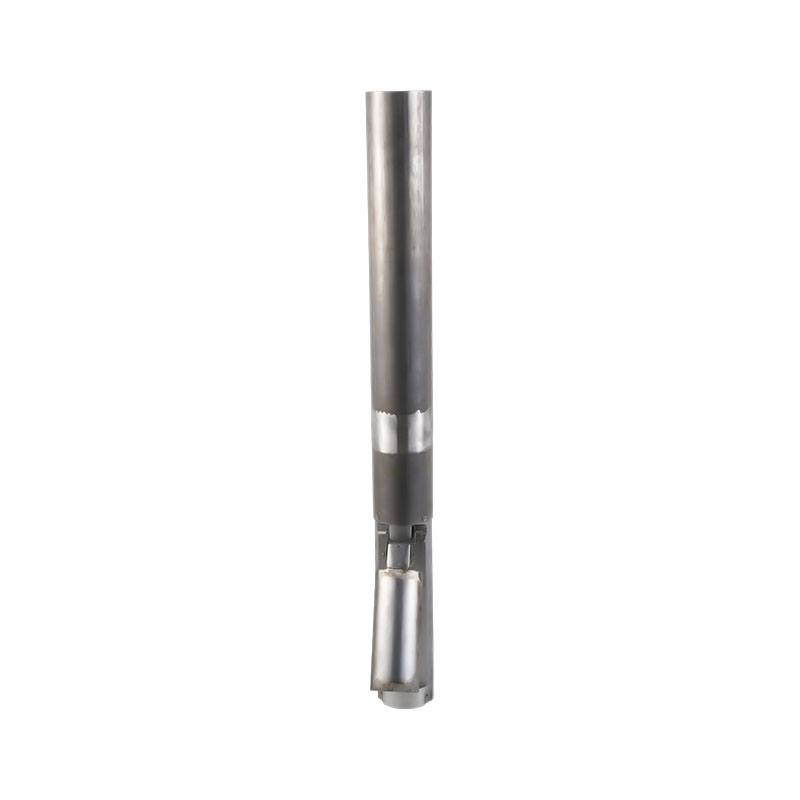

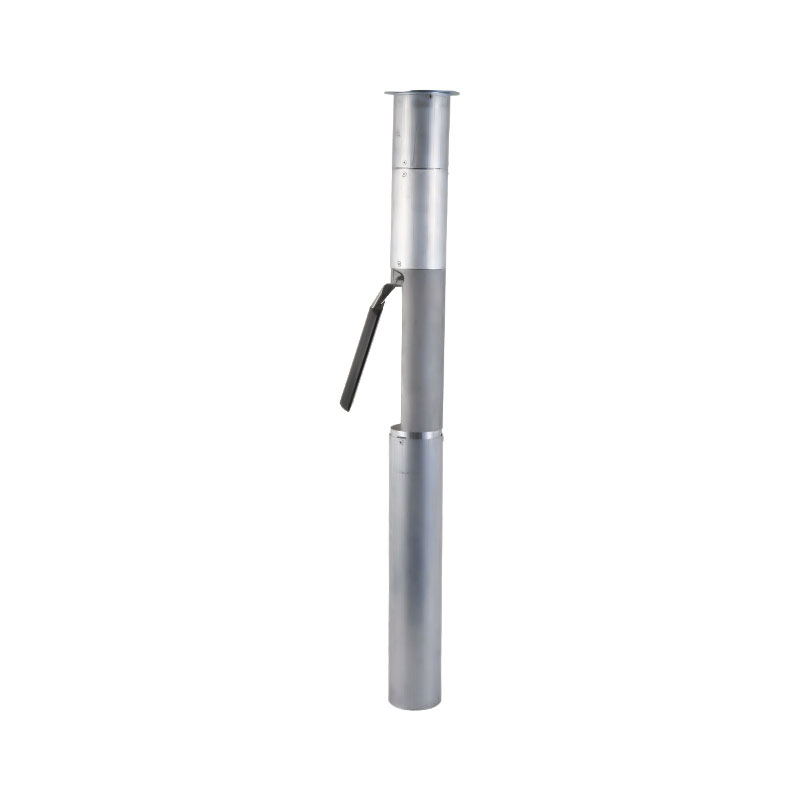

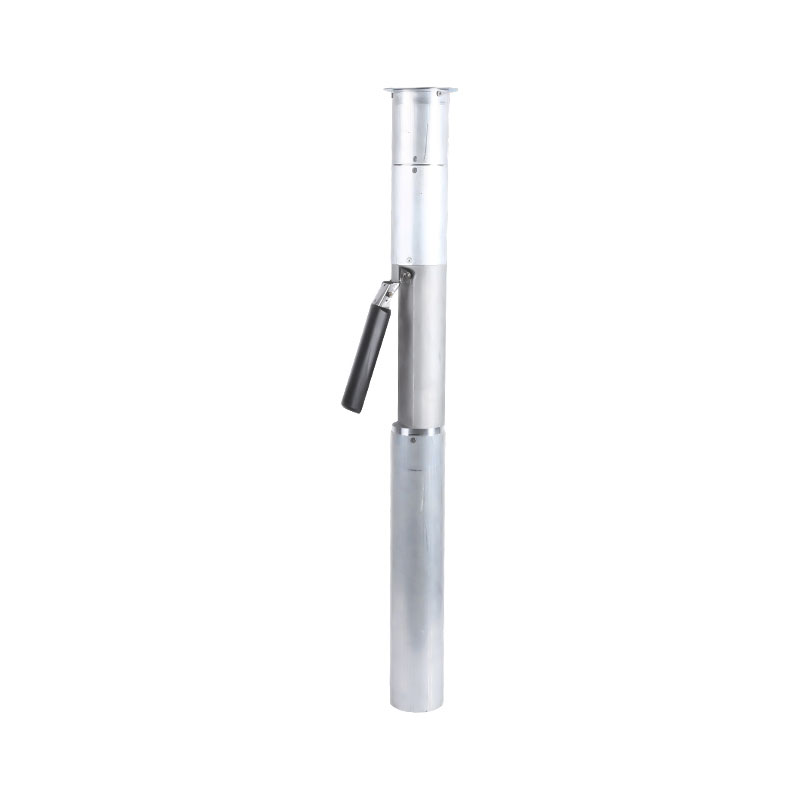

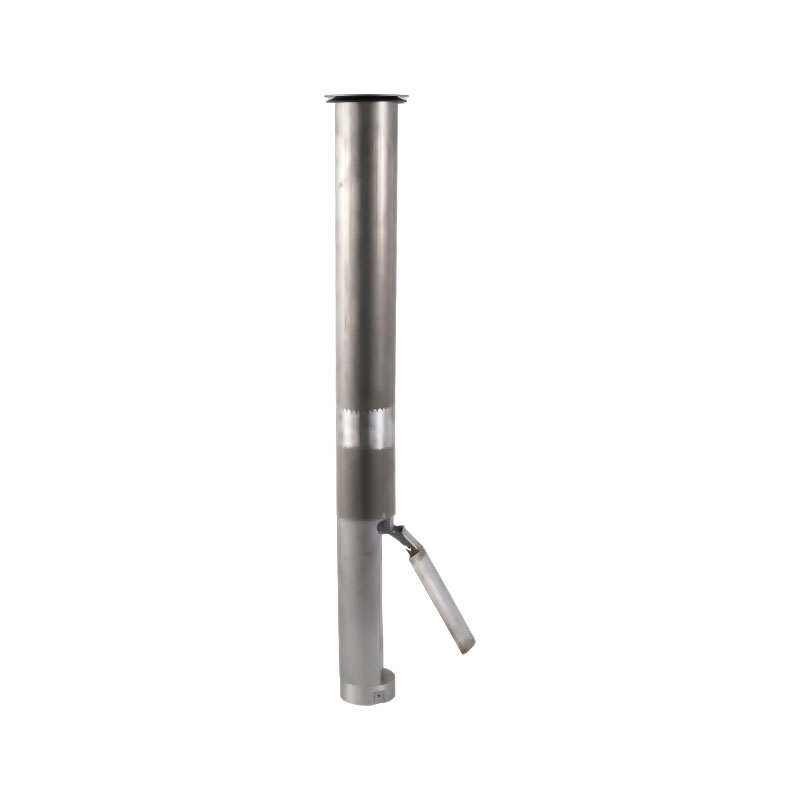

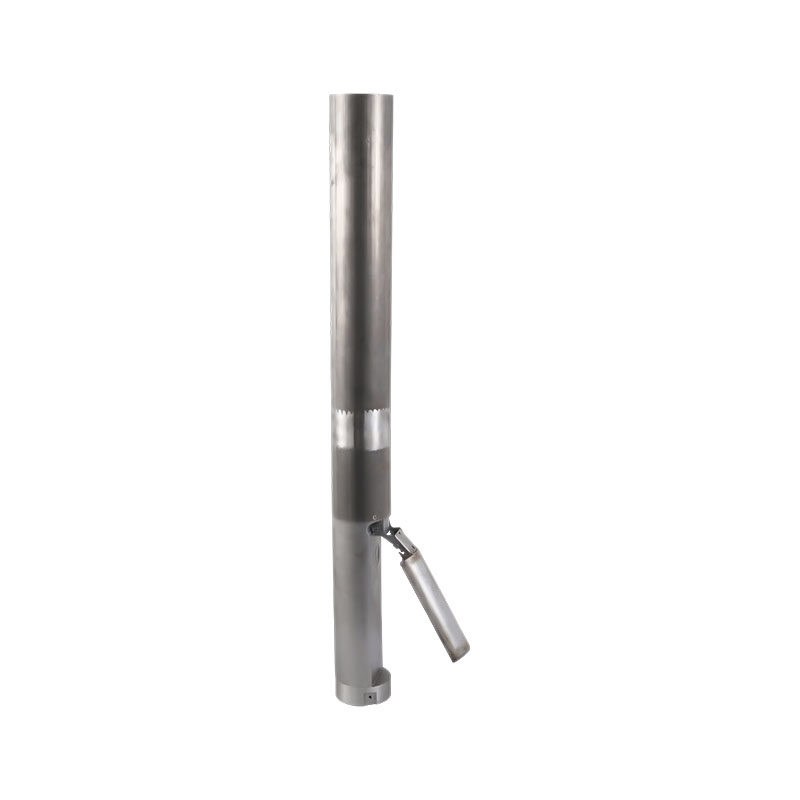

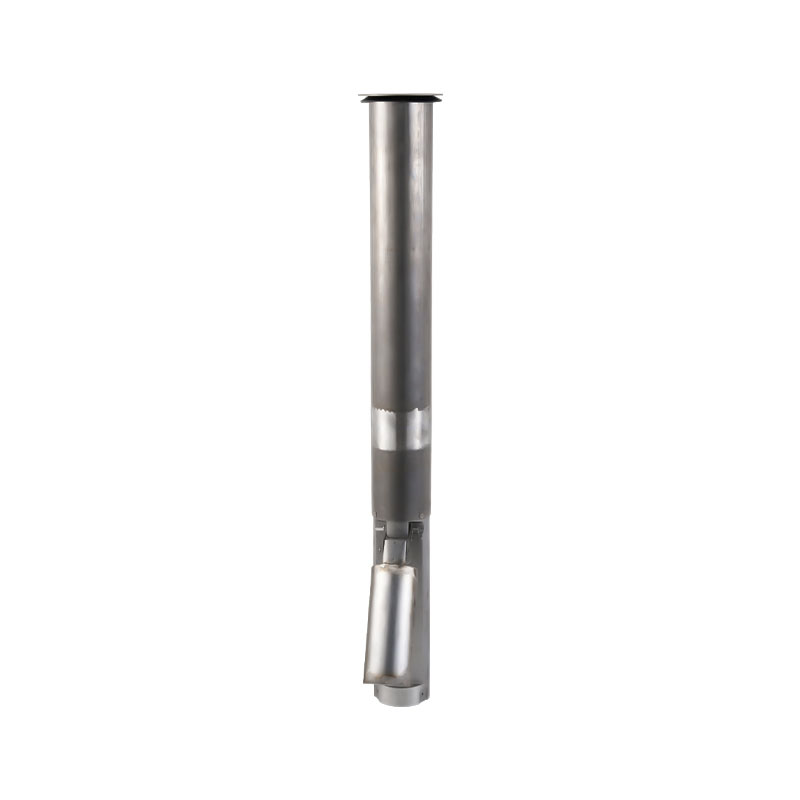

The HY61SO Series Overfill Prevention Valve is engineered for ultimate safety in fuel handling systems, designed specifically for underground storage tanks in gas stations, industrial fuel depots, and commercial refueling sites. By providing a precise positive shut-off, it prevents accidental overfilling and ensures regulatory compliance.

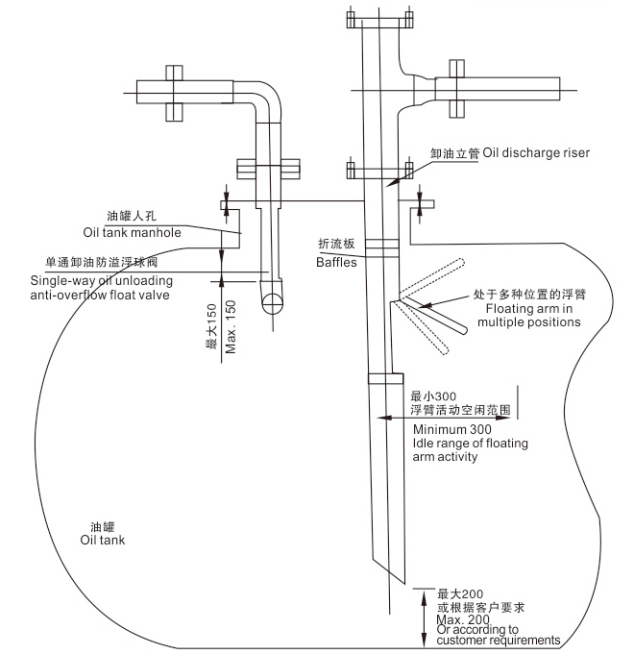

Unlike conventional shut-off mechanisms, the HY61SO is integrated directly into the drop tube used for gravity filling, making installation quick and convenient without the need to break concrete or access special manholes. Its two-stage valve design automatically responds to rising liquid levels: at approximately 95% tank capacity, the valve reduces flow to a controlled bypass of 5 gallons per minute, allowing operators to safely stop refueling. If the liquid reaches 98% of the tank, the valve fully closes, preventing any additional inflow until levels return below the reset point.

Globally, similar devices are referred to by different names: in North America and Europe, they may be called Overfill Shutoff Valves or Automatic Tank Fill Limiters; in Asia and the Middle East, terms like Fuel Tank Overflow Protection Valve or Automatic Fill Stop Valve are often used. Despite the naming differences, the function remains consistent: absolute prevention of tank overfill while maintaining safe, uninterrupted operations.

Materials and Construction:
Valve Body: Durable cast aluminum
Float: Closed-cell nitrile rubber foam
Valve: Aluminum
Seals: Viton
Drop Tube (upper & lower): Aluminum
Other parts: Acetal plastic, stainless steel hardware

Ordering Options:
HY61SO-4000 Remote Type, 0.5m Upper Tube / 2.0m Lower Tube, 7.5 kg
Custom lengths available to meet site-specific requirements
Valve body can be purchased separately for replacement or upgrades

Key Features:
Adjustable shutoff at any tank capacity
Automatic two-stage shut-off ensures safety at both 95% and 98% tank levels
Prevents spills, property damage, environmental contamination, and safety hazards
Easy installation with minimal infrastructure disruption

Important Safety Notice:
Proper connection of the delivery hose and elbow is critical. Improper handling of liquid-filled hoses can result in hazardous spills, posing risks of injury, fire, explosion, and environmental pollution.

The HY61SO series is the ideal solution for operators seeking a reliable, high-precision overfill prevention system that complies with local, state, and national regulations, while providing robust, long-term performance in any refueling environment.
