Aluminum Female Thread Vapor Recovery Couplings – Bottom-Side Tanker Vapor Recovery System

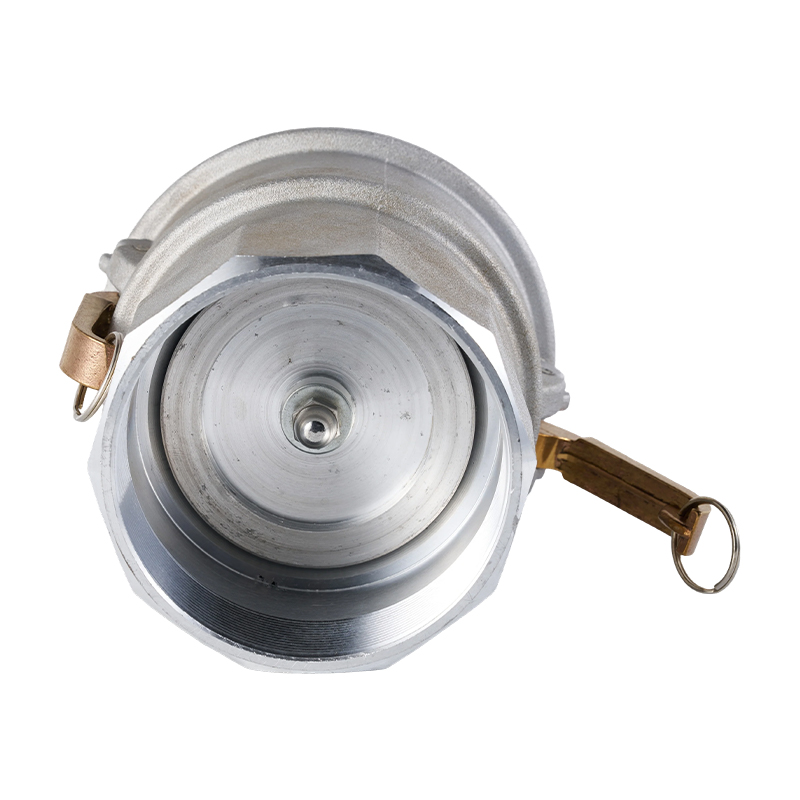

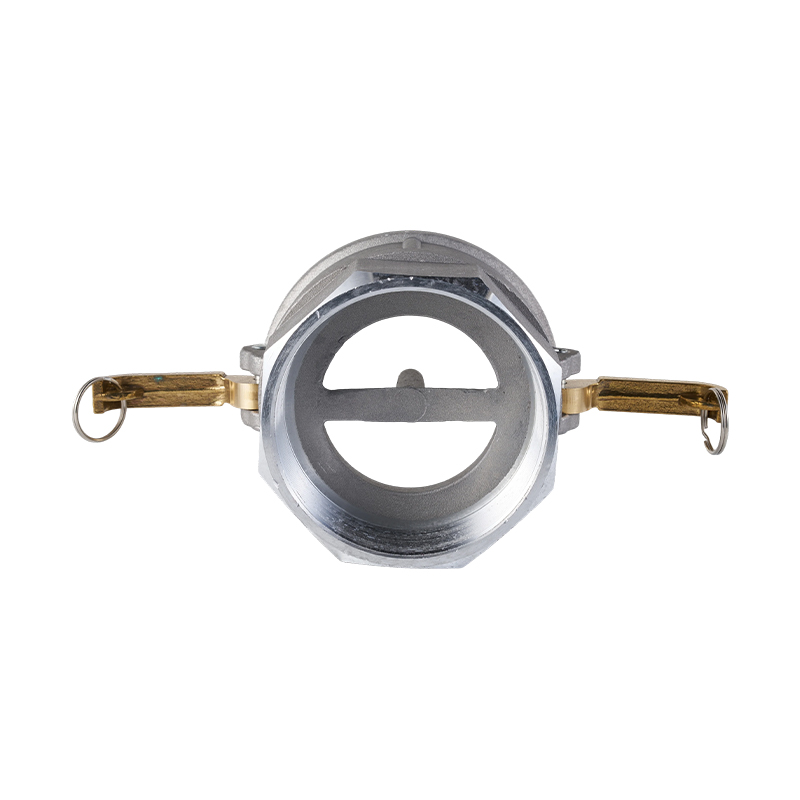

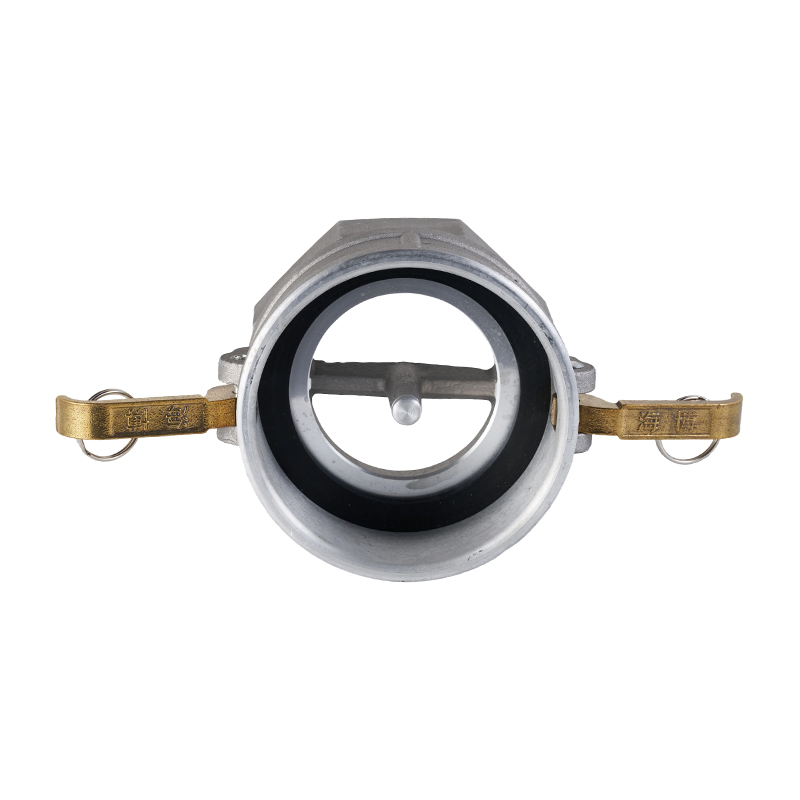

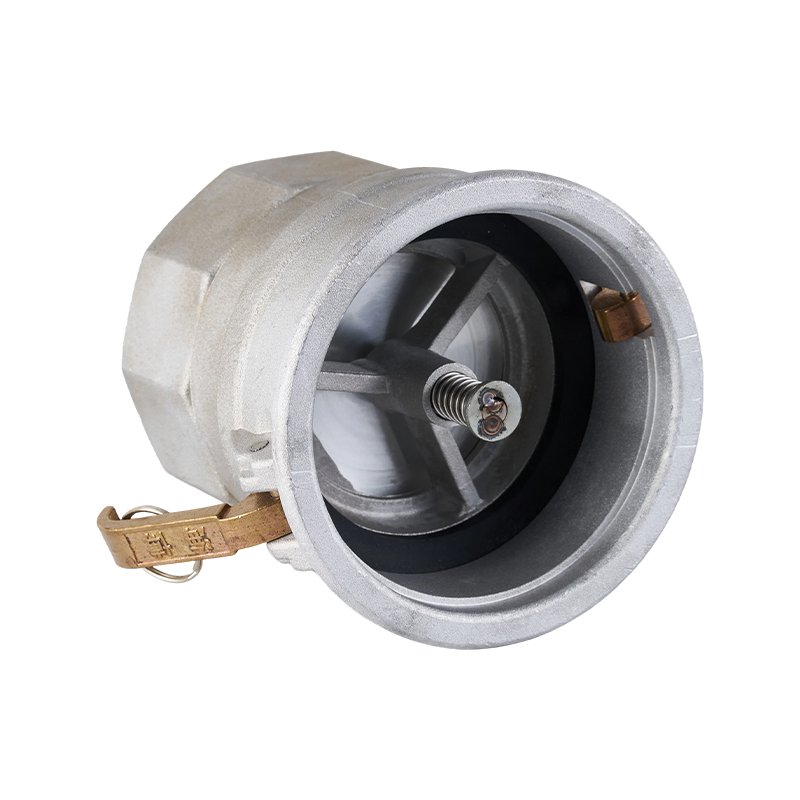

The HBVR-FT and HBVR-FTD series female thread vapor recovery couplings are essential components designed for the bottom-side vapor recovery system of fuel tank trucks. When connected to a vapor recovery adaptor, these couplings automatically trigger the pneumatic interlock switch on the adaptor, activating all valves in the vapor recovery system and enabling vapor flow back to the depot pipeline. Constructed with a high-quality aluminum body and probe, these couplings offer a lightweight design, smooth vapor flow, and minimal pressure drop. Handles are made of brass, and pins and rings are stainless steel, while Buna-N gaskets provide reliable sealing and long-lasting performance. The HBVR-FTD series incorporates a valve disc, effectively controlling vapor flow and preventing backflow or leakage.
Global Names and Industry Recognition
These female thread vapor recovery couplings are referred to differently across the globe:
Germany: Tankwagen-Dampfanschluss mit Innengewinde
France: Raccord de récupération de vapeur à filetage femelle
Italy: Accoppiatore di recupero vapor a filettatura interna
España: Acoplamiento de recuperación de vapor con rosca hembra
Netherlands: Dampterugwinningkoppeling met vrouwelijke schroefdraad
Nordic countries (Norway/Sweden): Tankluke dampkontrollkoppling med innvendig gjenge
UK / English-speaking markets: Female Thread Vapor Recovery Coupling for Tank Manhole
Asia and South America: commonly called Female Thread Vapor Recovery Coupling, Bottom-Side Safety Vapor Coupling, or Tanker Internal Thread Recovery Coupling
Despite the different names, the core function remains the same: efficient vapor recovery, pressure balance, and safe transport.
Key Features
Durable Materials: Aluminum body and probe, brass handle, stainless steel pins and rings
Reliable Sealing: Buna-N gaskets prevent vapor leakage
High Flow, Low Pressure Drop: Suitable for multi-compartment, high-speed loading and unloading
Automatic Pneumatic Interlock Activation: Coupling connection triggers the adaptor to open the vapor system valves automatically
Valve Disc Design (FTD Series): Enhanced vapor flow control, prevents backflow and leakage
Easy Operation: Female threaded connections for quick installation and removal
Technical Specifications
The HBVR-FT / FTD series covers multiple sizes:
HBVR-FT100: Aluminum body, 0.6 MPa working pressure, 4-inch female thread × 2–4 inch female thread; regular stock item: HBVR-FT100-80
HBVR-FT80: Aluminum body, 0.6 MPa working pressure, 3-inch female thread × 2–3 inch female thread; regular stock item: HBVR-FT80-80
HBVR-FTD100: Aluminum body with valve disc, 0.6 MPa working pressure, 4-inch female thread × 2–4 inch female thread (with valve disc); regular stock item: HBVR-FTD100-100
Applications
Bottom-side vapor recovery systems for fuel tank trucks
Petrochemical transport pipeline connections
Multi-compartment, high-speed loading and unloading operations
With high flow, robust reliability, pneumatic interlock activation, and valve disc design, the HBVR-FT / FTD series female thread vapor recovery couplings have become an industry-standard safety component for tanker vapor recovery systems worldwide.
