All Kinds of Fuel Dispenser Valves

Fuel dispenser systems rely on a variety of critical valves and accessories to ensure safe, efficient, and stable fuel delivery. In addition to standard fuel nozzles, key components such as Angle Check Valves, Vertical Check Valves, Emergency Shut-Off Valves, Solenoid Valves, Foot / Double Poppet Valves, Ball Valves, and Flexible Metal / Bellow Hoses play essential roles in operational safety, system stability, and ease of use. This article provides a professional comparative overview of these valves from the perspectives of structural features, functional applications, usage scenarios, and selection guidelines, helping users make informed decisions.

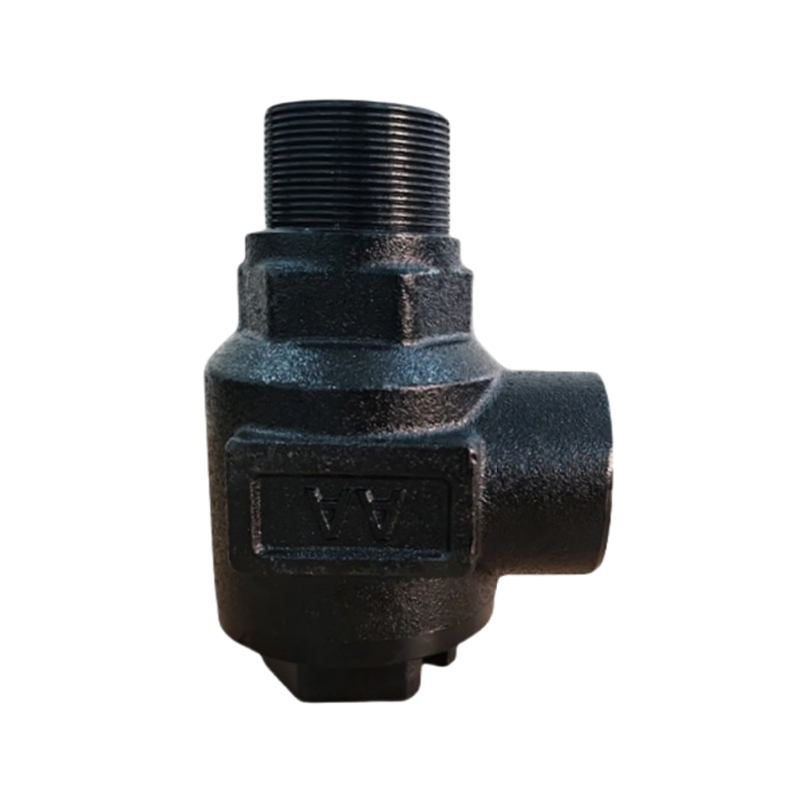

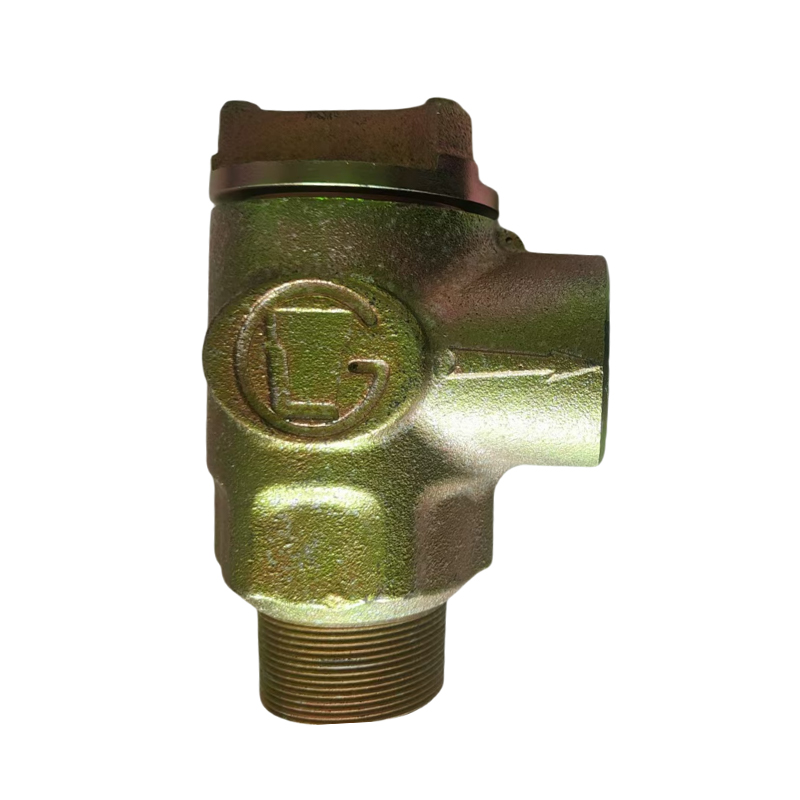

1. Angle Check Valve

Functions and Features:

Controls one-way fuel flow and prevents backflow

Angled design saves installation space, suitable for compact piping layouts

High-precision valve core with low flow resistance, capable of handling high pressure

Constructed from brass or stainless steel with excellent corrosion resistance

Typical Applications:

Fuel dispenser inlet and outlet connections

Fueling hoses on tanker trucks

Mobile refueling systems

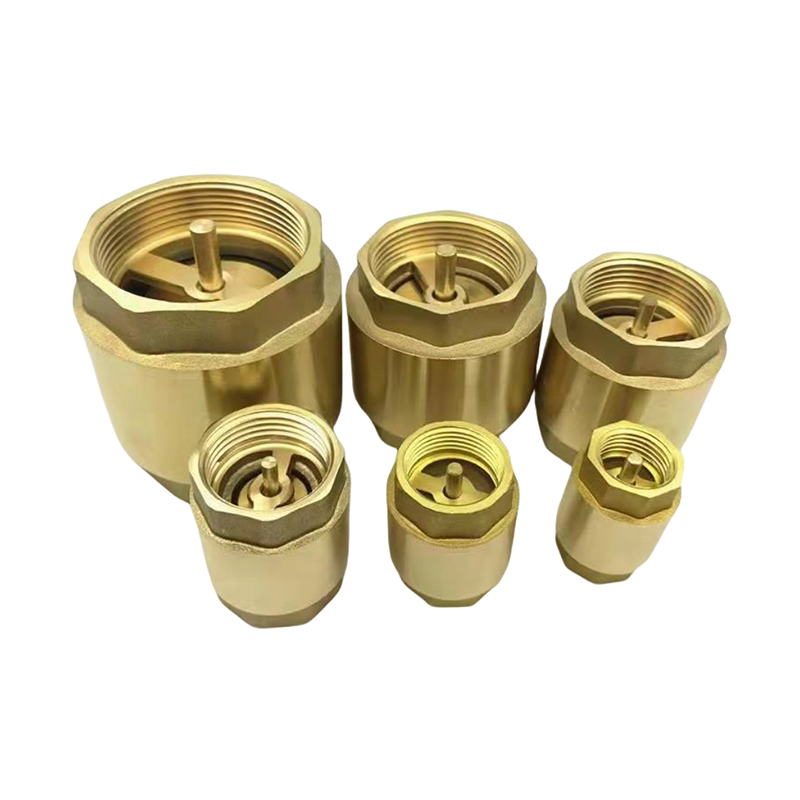

2. Vertical Check Valve

Functions and Features:

Designed for vertical installation, compact structure

Brass or stainless steel material with corrosion resistance and high-pressure capability

High flow design ensures unidirectional fuel flow

Typical Applications:

Pump outlet and storage tank inlet

Industrial and fuel dispenser distribution systems

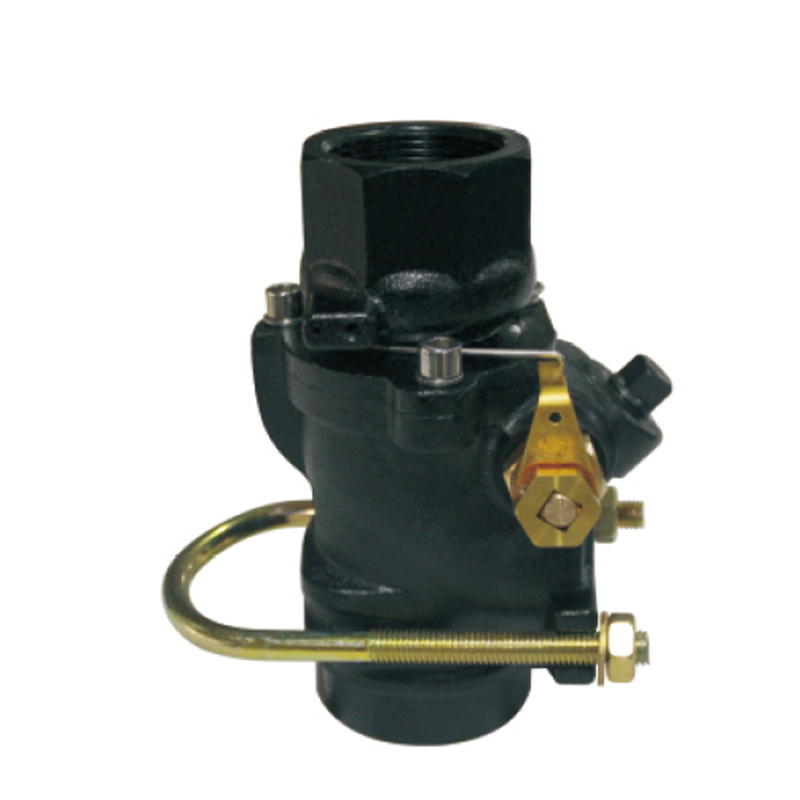

3. Emergency Shut-Off Valve

Functions and Features:

Rapidly cuts off fuel flow in emergency situations

Built-in spring and sealing mechanisms prevent leakage

High-pressure and corrosion-resistant design ensures operational safety

Can be triggered manually or integrated with automated control systems

Typical Applications:

Emergency safety protection for fuel dispensers

Fuel outlet on tanker trucks

Temporary or mobile refueling setups

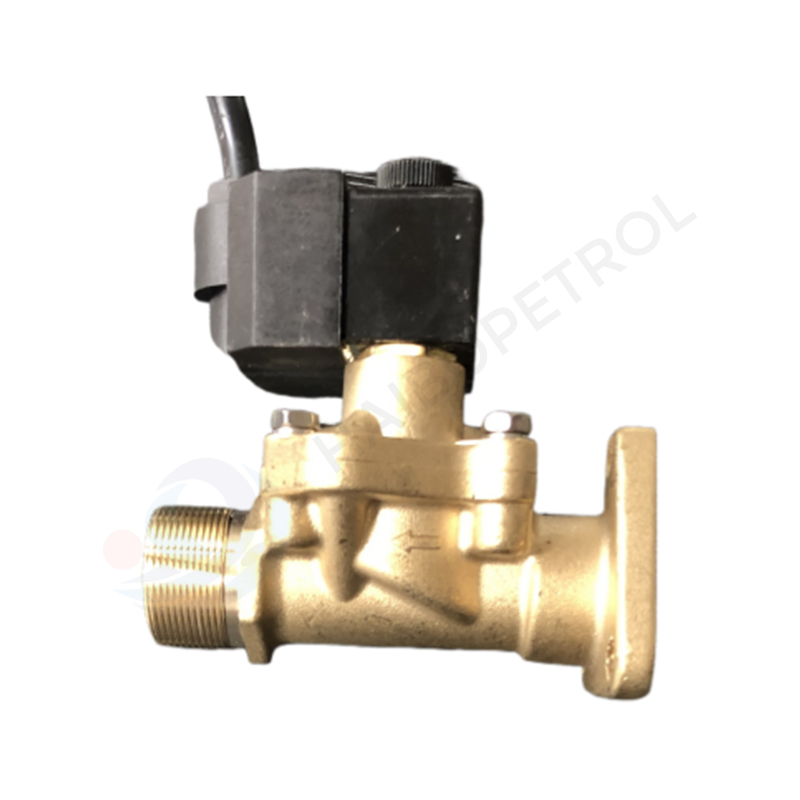

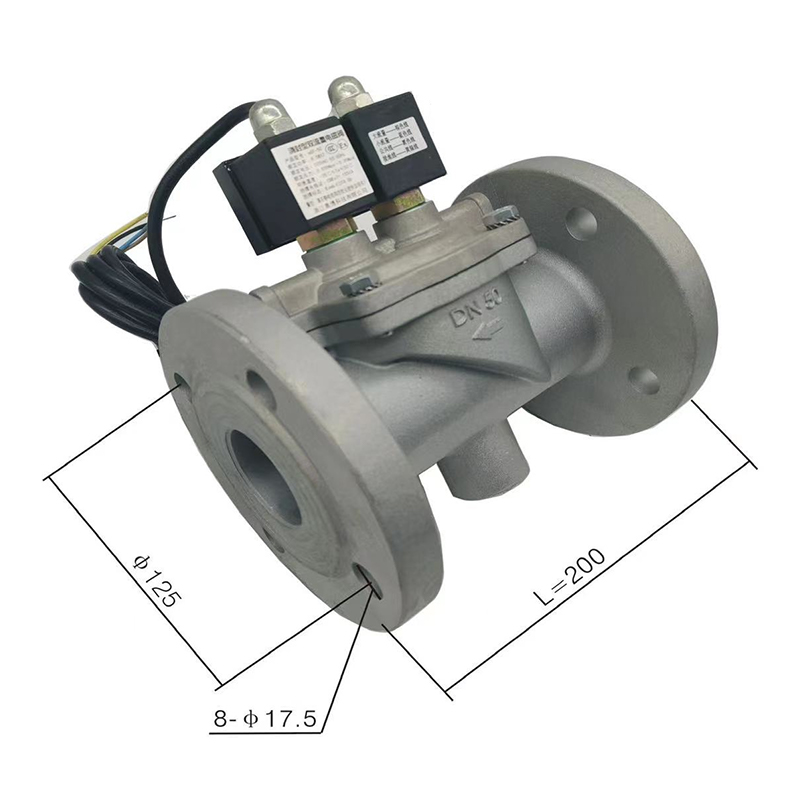

4. Solenoid Valve

Functions and Features:

Controls fuel flow via electrical signals, enabling automated operation

Available in multiple sizes and flow rates, suitable for gasoline, diesel, and LPG

High-pressure, corrosion-resistant, and long-life design

Multiple connection options (flange, threaded) for system integration

Typical Applications:

Automated fueling control systems

Fueling control on tanker trucks

Industrial fuel delivery and distribution systems

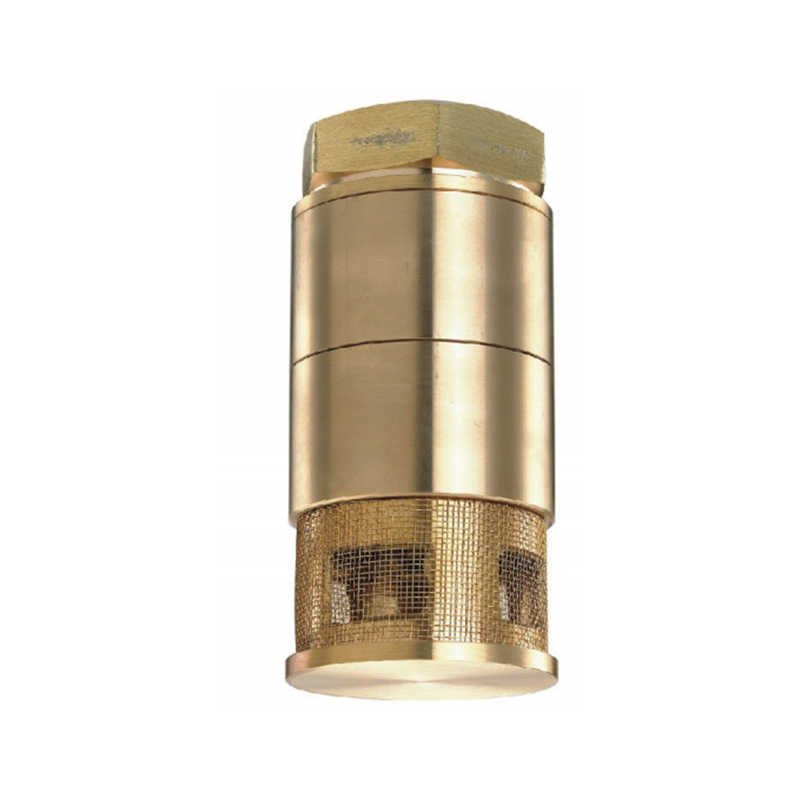

5. Foot Valve / Double Poppet Valve

Functions and Features:

Prevents fuel backflow, ensures smooth pump suction

Double poppet structure improves sealing and flow capacity

High-pressure design suitable for continuous operation

Typical Applications:

Fuel dispenser pump outlet

Tank bottom suction systems

Industrial fuel distribution pipelines

6. Ball Valve

Functions and Features:

Fast opening and closing with high sealing performance

Flanged or threaded connections for easy installation and maintenance

Supports high-pressure and high-flow operations

Typical Applications:

Pipeline shut-off and flow control

Fuel dispensers and storage tank systems

Industrial and mobile fueling systems

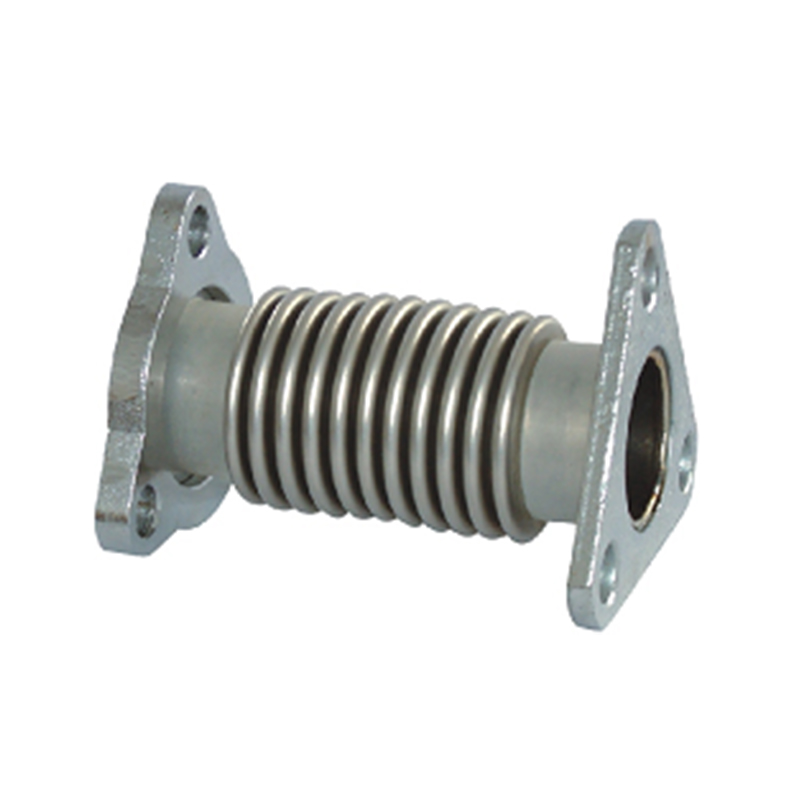

7. Flexible Metal / Bellow Hose

Functions and Features:

Highly flexible, absorbs pipe vibrations and thermal expansion

Metal construction with corrosion and high-pressure resistance

Compatible with fuel dispensers, pipelines, and valves

Typical Applications:

Flexible connections at fuel dispenser inlet and outlet

Tanker truck interface systems

Industrial fuel transfer and high-pressure piping

8. Selection Guidelines

When selecting valves and components, consider the following:

Fuel type (gasoline, diesel, LPG)

System pressure and flow requirements

Necessity of emergency shut-off, backflow prevention, or automated control

Connection type (flange or threaded) for system compatibility

Flexible hose length and installation layout (top-mounted or mid-mounted)

Material corrosion resistance and environmental temperature

Compliance with industry standards and safety regulations

Proper selection ensures system safety, operational efficiency, and reduced maintenance costs.

9. Globally Recognized Fuel Valve and Fuel Dispenser Brands

Fuel Dispenser OEM Manufacturers:

Tokheim (Global fuel dispenser manufacturer, part of Dover Fuel Solutions)

EMCO Wheaton (Fuel dispenser and loading arm manufacturer)

Fluid Control and Valve Specialists:

Swagelok (High-precision valves and fittings supplier)

Dixon Valve & Coupling (Global manufacturer of hoses and valves)

Bürkert (German precision fluid control valve manufacturer)

OPW Retail Fueling (Renowned supplier of swivels, breakaway valves, and safety valves)

Listing these recognized brands increases search relevance and attracts potential customer traffic.

10. Conclusion

The All Kinds of Fuel Dispenser Valves series covers core valves and accessories for fuel dispensers and distribution systems, including check valves, angle valves, ball valves, emergency shut-off valves, solenoid valves, foot valves, and flexible metal hoses. By understanding their structural differences, functional features, and applications, users can select the most suitable combination for safe, efficient, and reliable fuel distribution.

For technical specifications, system integration solutions, or customized services, please contact us. We provide professional, one-stop solutions for fuel dispensing systems.
