Intelligent Integrated Static Discharge Device – Personnel and Vehicle Anti-Static Protection

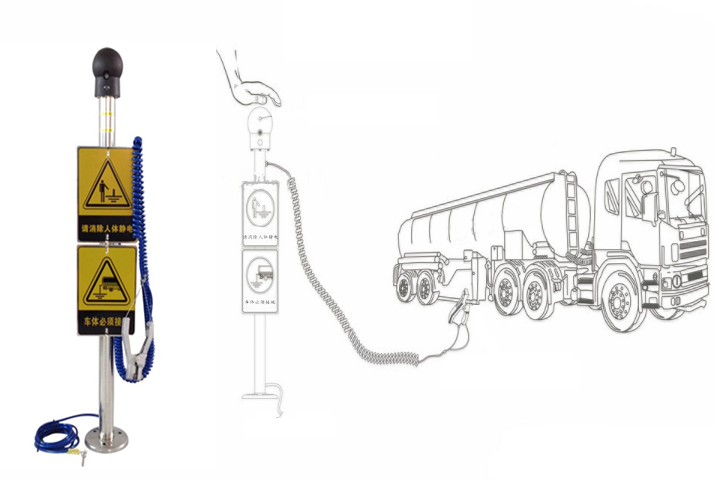

In flammable, explosive, or anti-static environments, managing static electricity for personnel and vehicles is critical. The HBJDS-01 Integrated Static Discharge Device is specially designed to address this need, combining human static elimination and vehicle grounding in a single unit. It provides comprehensive static protection for industrial and chemical operations. Its innovative design effectively controls the human body static discharge rate, reduces instantaneous energy, and extends the duration of static dissipation, ensuring safe release of static electricity. The device can also detect whether contact between the user and the static touch ball is reliable, with an alarm indicating whether static elimination is complete, enhancing operational safety and control.
This series is known by different names around the world. In English, it is commonly called Integrated Static Discharge Device or Personnel and Vehicle Static Eliminator; in French, Dispositif intégré de décharge électrostatique; in German, Integriertes elektrostatisches Entladegerät für Personen und Fahrzeuge; in Spanish, Dispositivo integrado de descarga estática; in Italian, Dispositivo integrato di scarica elettrostatica; and in some Asian markets, it is referred to as 集成静电消除装置 or 人员车辆静电消除器. No matter where it is used, this device provides stable and reliable static elimination performance.
The HBJDS-01 features a 304 stainless steel pole and a robust touch ball, with a pole diameter of 38mm, pole wall thickness of 1mm, touch ball diameter of 90mm, and flange thickness of 3mm, ensuring durability and structural stability. The device comes with a 3-meter straight PU ground cable and a 6-meter spiral PU static clamp cable, allowing flexible deployment within the workspace. With a product height of 1 meter and a 160×480mm signboard, it clearly displays operational status. The built-in 3.6V lithium battery consumes less than 1mA in standby and less than 5mA during operation, with a response time of under 1 second and grounding resistance below 55 ohms. The device meets the ExibllCT4Gb explosion-proof standard and operates safely in temperatures ranging from -40℃ to 60℃.
This static discharge device is widely used in chemical plants, fuel depots, gas stations, flammable gas operation areas, and other environments sensitive to static electricity. By providing intelligent, integrated static elimination, it reduces the risk of electrostatic discharge while improving operational efficiency and personnel safety. Engineers worldwide choose the HBJDS-01 not only for its high-quality materials and precise design but also for its ability to operate reliably in demanding work environments, offering dependable protection for both personnel and vehicles.
Choosing the HBJDS-01 Integrated Static Discharge Device ensures safer and more efficient static management for personnel and vehicles, delivering precise and reliable protection in every industrial and chemical operation.
