Intelligent Static Grounding Alarm Unit – Anti-Static Protection for Oil Depots and Chemical Operations
In flammable, explosive, and anti-static industrial environments, managing static electricity is crucial to ensuring the safety of personnel and equipment. The HBSGA-M / HBSGA-F Series Static Grounding Alarm Units are specially designed for oil depots, gas stations, chemical plants, and other high-risk locations. They monitor the grounding status between equipment and the earth in real time, ensuring static electricity is effectively discharged. Whether for mobile tanks, tanker trucks, oil depots, gas stations, paint factories, pharmaceutical factories, alcohol production facilities, or chemical plants, this series provides reliable static protection.
This static grounding alarm unit is known by various names worldwide. In English, it is commonly called Static Grounding Alarm Unit or Anti-Static Alarm Device; in French, Unité d'alarme de mise à la terre statique; in German, Statische Erdungs-Alarmvorrichtung; in Spanish, Unidad de alarma de puesta a tierra estática; in Italian, Unità di allarme di messa a terra statica; and in some Asian markets, it is referred to as 静电接地报警装置 or 防静电报警器. Regardless of location, these units provide highly efficient and reliable static monitoring.

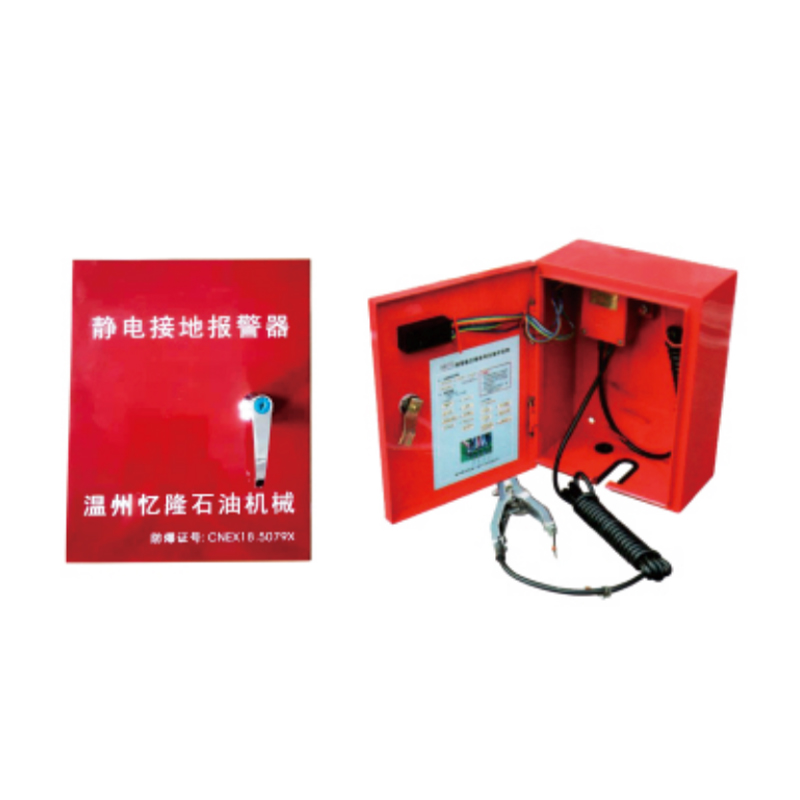

The HBSGA-M / HBSGA-F Series works through a paint-breaking needle on the static clamp. Using a lever mechanism formed by a strong spring and the clamp body, it generates powerful pressure to penetrate paint or rust layers, achieving reliable contact with the grounding stake. This allows the object to reach electrical equilibrium with the earth, safely discharging static electricity. The HBSGA-M is portable, making it ideal for mobile tanks and tanker truck operations, while the HBSGA-F is fixed, suitable for oil depots, gas stations, and stationary pipeline systems.
Technically, the series operates at DC 3V, with HBSGA-M working current ≤1mA and HBSGA-F working current ≤60μA, and a maximum working voltage of 250V. The alarm volume is under 90 dB, and the devices operate reliably in temperatures from -10℃ to 50℃ and relative humidity below 90%. With visual and audible alerts, users can quickly confirm whether grounding is in place, significantly reducing the risk of static accumulation.
This static grounding alarm unit is widely applied in chemical plants, oil depots, gas stations, paint factories, pharmaceutical plants, and other flammable or explosive areas. By providing intelligent alarms and efficient grounding, it enhances operational safety and improves workflow efficiency. Engineers worldwide choose the HBSGA-M / HBSGA-F Series not only for their high-quality materials and precise design but also for their reliable performance in complex environments, providing dependable static protection for both mobile and fixed equipment.
Choosing the HBSGA-M / HBSGA-F Series Intelligent Static Grounding Alarm Unit ensures safer, more efficient static management in oil depots, gas stations, and chemical operations, delivering precise and reliable anti-static protection for every task.
