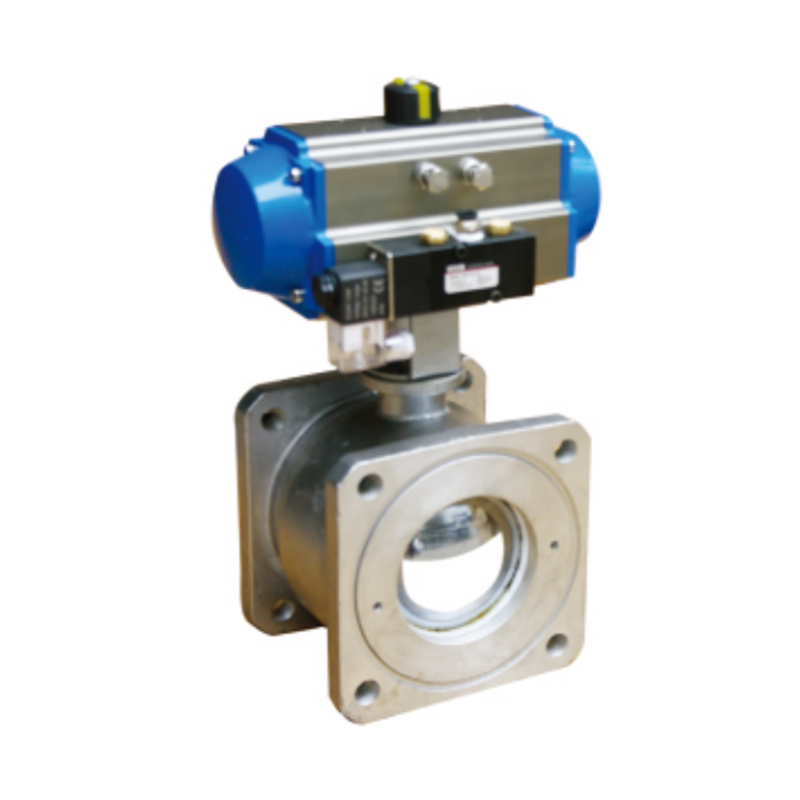

Pneumatic Aluminum Control Ball Valve for Tank Trucks

In the global energy and chemical transportation industry, safety and efficiency are top priorities. The HBPNBV Series Pneumatic Aluminum Ball Valve is specifically engineered for oil tank trucks, water tank trucks, and small-diameter pipeline transport, offering an ideal solution for modern liquid handling. With an advanced pneumatic actuator, this valve can be directly connected to the vehicle's air pump, enabling remote loading and unloading control from the driver’s cabin, significantly enhancing operational convenience and safety.

This ball valve is known by different names around the world: in English, it is often called Pneumatic Ball Valve or Industrial Air-Control Ball Valve; in French, Vanne à bille pneumatique; in German, Pneumatisches Kugelventil; in Spanish, Válvula de bola neumática; in Italian, Valvola a sfera pneumatica; in Asia, it is sometimes referred to as 气动控制球阀 or Oil Tank Truck Ball Valve. No matter whether you are in North America, Europe, Latin America, or Asia, this valve meets the highest standards for liquid transportation.

Key Advantages
Efficient Control: 90° rotary ball design allows quick opening and closing, enabling medium cut-off, distribution, or flow direction changes.
Safety Protection: Shutting the valve in emergencies significantly reduces fuel or chemical spills, minimizing financial losses.
Durable and Robust: Aluminum alloy body with stainless steel ball core ensures corrosion resistance and lightweight construction, providing long-term reliability.
Multiple Specifications: Available in straight-through and T-type designs, with diameters ranging from 40mm to 100mm. Flange standards can be customized per client requirements.
Wide Temperature Range: Suitable for -20°C to +70°C, with a working pressure of 0.6 MPa and air source pressure of 0.3–0.8 MPa.

For operation and maintenance, if the sealing ring or ball surface is worn, repair or replacement is recommended to ensure long-term stable performance. The HBPNBV Series Ball Valve is not only suitable for fuel transportation but also ideal for various chemical liquid pipelines, receiving high praise from engineers and transportation companies worldwide.

Choose the HBPNBV Series Pneumatic Aluminum Ball Valve to make your liquid handling safer and more efficient, helping modern pipeline systems achieve enhanced reliability and intelligent operation.

PREV：Aluminum and Stainless Steel Three-Way Ball Valve for Oil and Chemical Pipelines NEXT：Stainless Steel Industrial Square Flange Ball Valve (Specially for Chemical Tank Trucks)

Specification
Contact Us

HBPNBV Series of Pneumatic Control Aluminum Ball Valves are specifically designed for oil tank truck and water tank trucks. It utilizes an advanced pneumatic actuator for driving. The valve's air inlet is directly connected to the vehicle's air pump, allowing direct control of the product for loading and unloading operations from the driver's cabin. They are mainly applied in gas stations and small-diameter oil pipelines, serving as a substitute for the emergency shut-off ball valve below the fuel dispenser. In emergency situations, closing this valve effectively reduces fuel spillage, minimizing unnecessary losses.

Technique Specification：
Body: Aluminum
Ball: Stainless steel
Gasket: Teflon and Buna-N
Flange Type: Square only
Temperature Range:-20~+70℃
Working Pressure:0.6 Mpa
Air Source Pressure:0.3 to 0.8 Mpa
Diameter Sizes:40 to 100 mm
Control Mode: Pneumatic

Ordering Specifications:

Item No.	Diameter Sizes	Flange Face-to-Face Distance	Ball Valve Type
HBPNBV-50F	50 mm	170 mm	Straight-through
HBPNBV-65F	65 mm	200 mm	Straight-through
HBPNBV-80F	80 mm	220 mm	Straight-through
HBPNBV-T-50	50 mm	170 mm	T Type
HBPNBV-T-65	65 mm	200 mm	T Type
HBPNBV-T-65-2	65 mm	220 mm	T Type
HBPNBV-T-80	80 mm	220 mm	T Type

The Flange Standard can be produced according to user’s requirements.

Features:
Pneumatic Control Aluminum Ball Valve features a 90-degree rotary motion with a spherical plug, allowing a circular through-hole or passage along its axis. In pipelines, ball valves are primarily used for cutting off, distributing, and altering the flow direction of the medium.
They can be tightly closed with a simple 90-degree rotation.
Ball valves are most suitable for use as on-off and shut-off valves, but recent developments have designed them to also serve as throttling and flow control devices.
Note: In case of damage to the sealing ring or ball surface, it is necessary to correct the sealing surface or replace the damaged parts.
