Stainless Steel Industrial Square Flange Ball Valve (Specially for Chemical Tank Trucks)
In chemical liquid transportation and industrial pipeline systems, safety, durability, and efficient control are the core requirements for every engineer. The HBSXBV-XXF Series Stainless Steel Industrial Square Flange Ball Valve is specially designed for chemical tank trucks and industrial liquid pipelines. With nominal diameters ranging from 2 inches to 4 inches (50 mm–100 mm), it provides a reliable and long-lasting control solution through precision casting and high-quality materials.
This valve is known by different names worldwide: in English, it is commonly called Stainless Steel Ball Valve, Square Flange Ball Valve, or Industrial Tank Valve; in French, Vanne à bille inoxydable à bride carrée; in German, Edelstahl-Kugelhahn mit quadratischem Flansch; in Spanish, Válvula de bola de acero inoxidable con brida cuadrada; in Italian, Valvola a sfera in acciaio inox con flangia quadrata; and in some Asian markets, it is referred to as 不锈钢方法兰球阀 or 化工罐车球阀. No matter where you are, this valve meets high standards for liquid transfer applications.
Key Advantages
Precision Manufacturing: Made with high-precision casting technology to ensure a robust and reliable valve body.
High-Quality Materials: Available in SS304, SS316, and SS316L to handle applications from low to highly corrosive liquids.
Excellent Sealing: Equipped with PTFE seals to achieve zero leakage, ensuring safe transportation of chemical liquids.
Wide Range of Specifications: Available in straight-through and T-shaped designs, with nominal diameters from 2 to 4 inches (50–100 mm); flange sizes can be customized.
Durable Design: Thickened valve body significantly extends service life, suitable for long-term industrial use.
Easy Operation: Ergonomic handle design allows smooth and flexible valve operation.

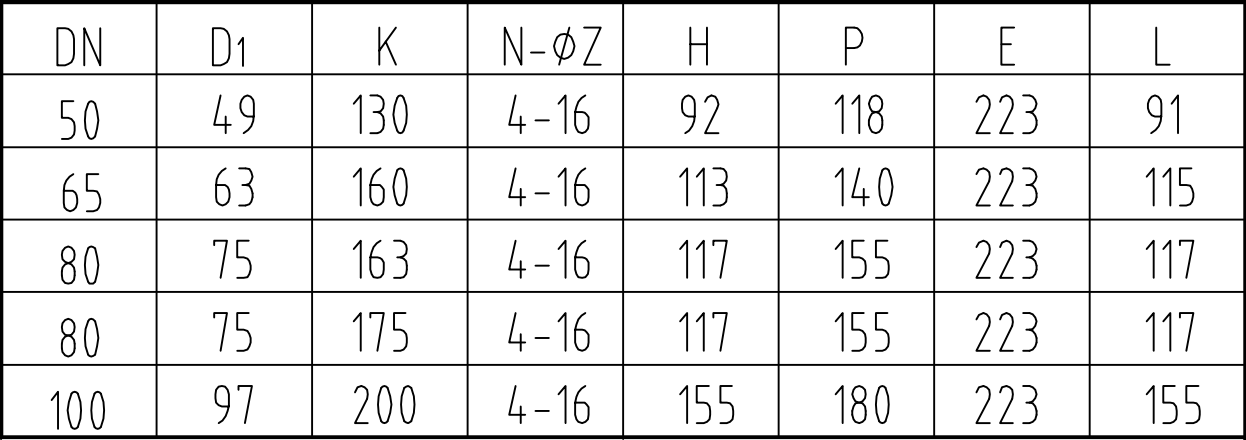

Technical Specifications
Materials: SS304, SS316, SS316L
Sealing Material: PTFE
Standard: China National Standard
Working Temperature: -40°C to +100°C
Maximum Working Pressure: 1.6 MPa
Nominal Diameter Range: 2–4 inches (50 mm–100 mm)
Installation and Operation Guide
Preparation: Ensure all parts are clean and pipe connections are compatible.
Positioning: Align the valve with the pipeline direction and confirm the flow direction marking.
Fixing: Tighten with suitable bolts to prevent leakage.
Testing: Operate the valve multiple times after installation to ensure smooth function.
Maintenance and Safety
Regularly clean the valve to prevent debris buildup that can affect operation.
Inspect PTFE seals and the valve body; replace worn or corroded parts promptly.
Operate within the rated pressure; avoid overpressure.
Avoid forceful rotation of the handle to prevent damage.
Corrosive Liquid Compatibility
SS304: Suitable for low-corrosive or non-corrosive liquids.
SS316 / SS316L: Suitable for highly corrosive liquids, such as sulfuric acid or hydrofluoric acid.
Choose the HBSXBV-XXF Series Stainless Steel Industrial Square Flange Ball Valve (Specially for Chemical Tank Trucks) to make chemical liquid transport and industrial pipeline control safer and more efficient, providing precise and reliable fluid management for every operation.
