High-Reliability Manual Bottom Valve for Tank Trucks
The HB804CS-100 series manual bottom valve is a mechanically controlled valve specifically designed for fuel tank trucks, combining safety, durability, and high flow performance. Installed at the bottom of the tank, the valve disc is sealed inside the tank, while the valve body features a cutting groove. In the event of an unexpected severe impact, the outer part of the valve body will break along the groove, ensuring the overall sealing of the tank and effectively preventing fuel leakage, thus safeguarding loading and unloading operations.
This manual valve operates through mechanical control, providing precise and reliable operation during fuel transfer processes. The optimized internal design ensures smooth flow during loading and unloading while minimizing leakage risks. The valve body is made of aluminum with surface oxidation treatment, offering corrosion resistance and long-lasting durability. Optional VITON or Buna-N seals enhance chemical resistance and extend service life.
Globally, this type of manual bottom valve is known by various names depending on the region. In Europe and North America, it is often referred to as a "Manual Emergency Shut-off Valve" or "Tank Truck Bottom Valve." In the Middle East and Southeast Asia, it is called "罐底手动阀" or "油罐车底部紧急阀." In South America and other Latin American countries, it may be known as "Válvula manual de fondo para cisterna." Regardless of the terminology, its core function remains consistent: providing a reliable and safe bottom valve control solution for fuel transportation.
Key Features:
High flow design for efficient loading and unloading
Compatible with standard 4-inch TTMA flanges for easy installation
Compliant with EN 13308 tank service equipment standards
Mechanical operation for precise and reliable control
Aluminum valve body with surface oxidation treatment for corrosion resistance and lightweight construction
Optional VITON or Buna-N seals for chemical resistance and long service life
Optimized internal design reduces leakage and increases flow capacity
Technical Specifications:
Nominal size: 4 inches
Working pressure: 0.6 MPa
Maximum flow rate: 2500 L/min
Temperature range: -20°C to +70°C

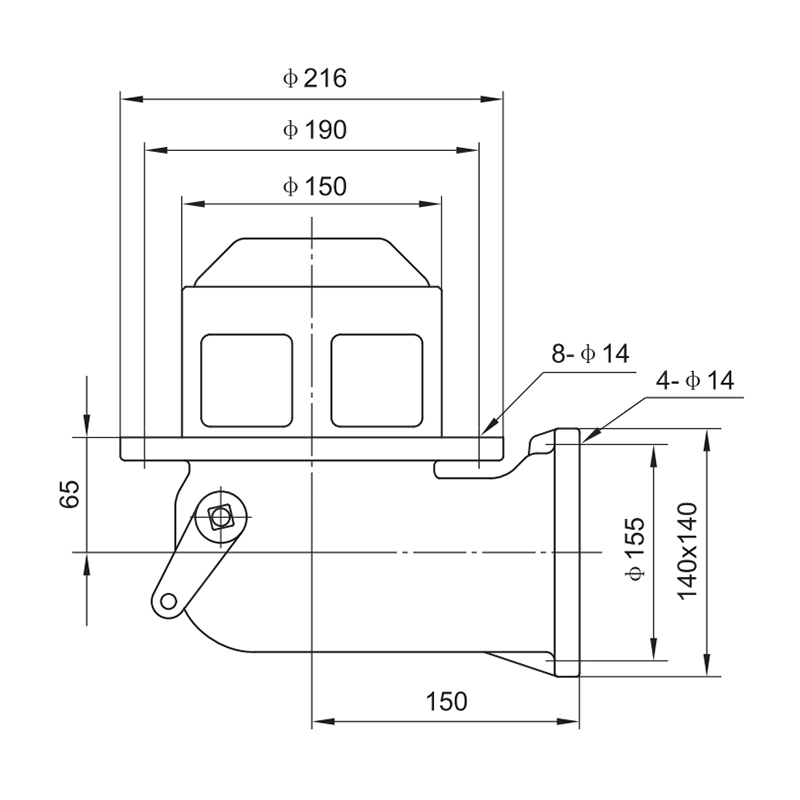

Flange type: Round flange on tank side, square flange on pipe side
Opening mode: Manual
Applicable medium: Gasoline, diesel, and other light fuels
Recommended Accessories:
Tank side flange (HBBVTSFL-100R)
Tank side welding sump with male bolts (HBBVTSFL-100RB) or female nuts (HBBVTSFL-100RA)
Pipe side square flange (HBBVPSFL-100F)
Tank and pipe side gaskets made of Buna-N or Viton
The HB804CS-100 series manual bottom valve is widely used in fuel tank trucks, chemical tankers, hazardous liquid transport vehicles, and specialized liquid storage and transportation equipment. It provides a secure, reliable, and long-term stable connection for bottom valves and can be customized according to different national standards and project requirements.
