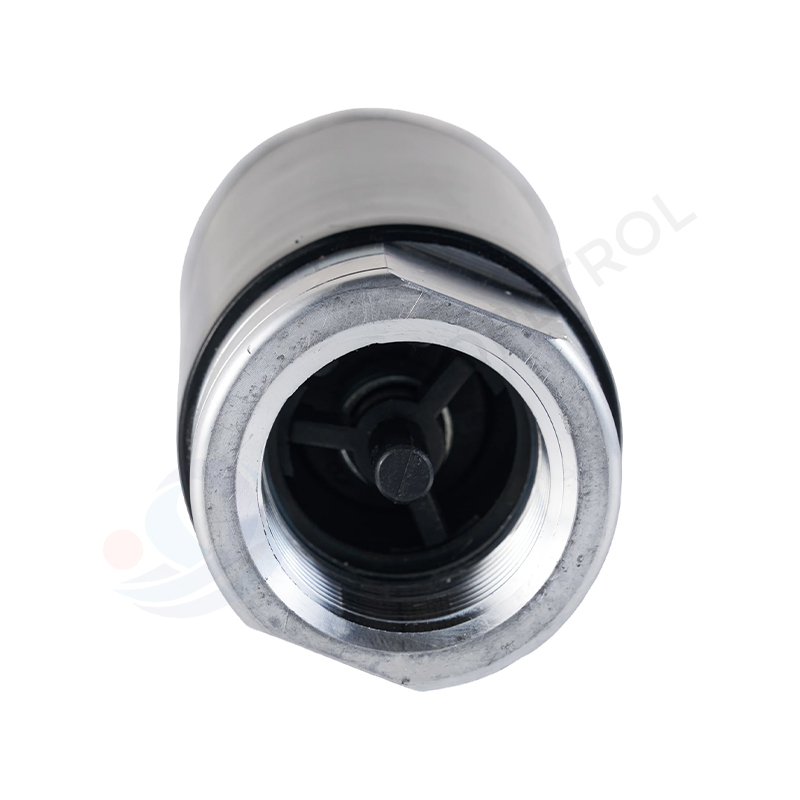

Durable Safety Dual-Valve Breakaway Coupling for Fuel Dispensing Systems

Durable Safety Dual-Valve Breakaway Coupling for Fuel Dispensing Systems

Product Description (Google Promotion Style)

In modern fueling stations and industrial fuel transfer systems, safety is paramount. The HBBR Series Fuel Breakaway Couplings (OPW Old Type) are specifically engineered to protect fuel dispensing equipment efficiently. These couplings separate automatically under designed pull force, while the dual-valve mechanism immediately shuts off fuel flow to minimize spillage and prevent equipment damage.

Around the world, this product is known by various names:

USA: Breakaway Coupling or Fuel Breakaway

UK & Commonwealth: Fuel Safety Coupler or Emergency Disconnect

Europe (Germany, France, etc.): Sicherheits-Trennkupplung (Safety Breakaway Coupling)

Middle East & Africa: Brass Fuel Emergency Breakaway

Asia: Fuel Hose Safety Breakaway / Emergency Fuel Shutoff Coupling

Regardless of the terminology, the function remains the same: providing fast and reliable disconnection protection during fuel transfer operations, safeguarding both operators and equipment.

Innovative Design for Maximum Safety

The HBBR series features a dual poppet spring-controlled design that automatically shuts off fuel flow when the coupling separates, ensuring minimal spillage. Once activated, the breakaway is designed to be replaced rather than reassembled, preventing potential reassembly errors.

HBBR-3/4: Breakaway force approx. 250 lbs ±5%, for 3/4” hoses, requires a “straightening” hose with a minimum length of 9 inches

HBBR-1: Breakaway force approx. 300 lbs ±5%, for 1” hoses, requires a minimum hose length of 12 inches

Premium Materials

Body: Aluminum, lightweight and corrosion-resistant

Main Seals: Viton® or Buna-N, resistant to fuel and chemical corrosion

Main Spring: Stainless steel, ensuring stable operation over repeated use

Guide and Poppet: POM engineering plastic

Protective Sleeve: PVC for external protection

Key Performance Features

Flow Rate: 3/4” model 0–60 L/min, 1” model 0–120 L/min

Working Pressure: 0.18 MPa

Automatic separation with fuel shutoff

Dual poppet design ensures safety and reliability

Pull-force activation prevents equipment damage

Typical Applications

Fuel dispensing systems at gas stations

Industrial fuel transfer lines

LPG or diesel fuel filling stations

Export-oriented fuel infrastructure projects

High-safety fuel handling environments

The HBBR Series Fuel Breakaway Couplings combine safety, ease of maintenance, and reliability, making them a trusted solution for fuel dispensing operations worldwide.
