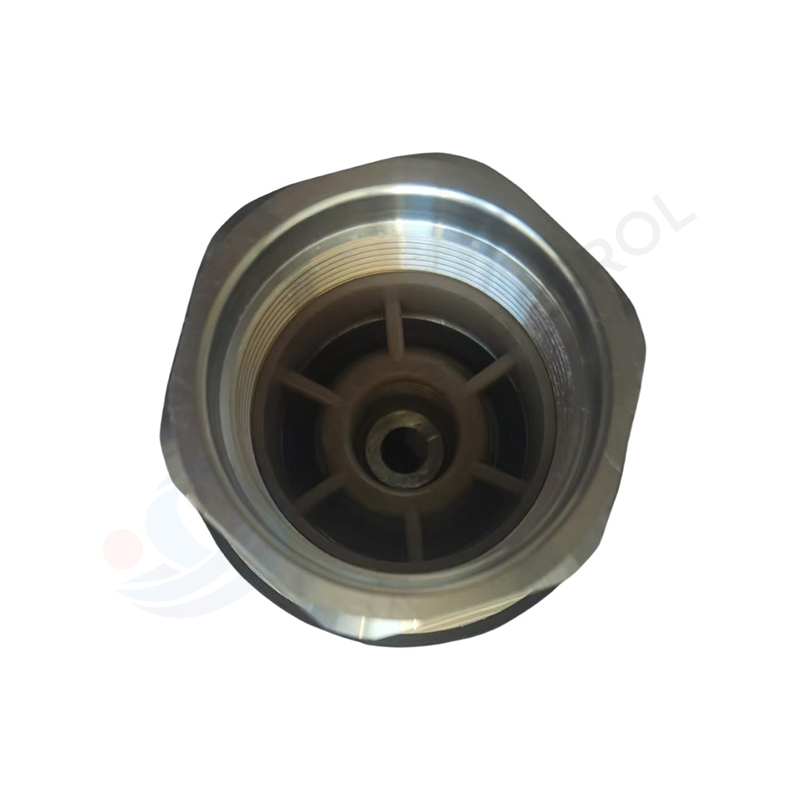

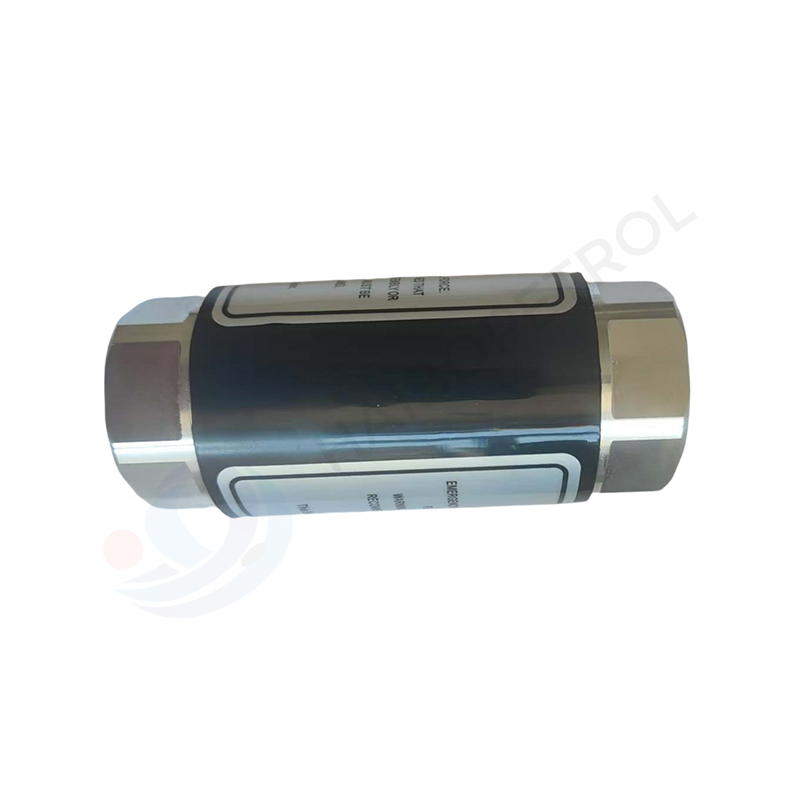

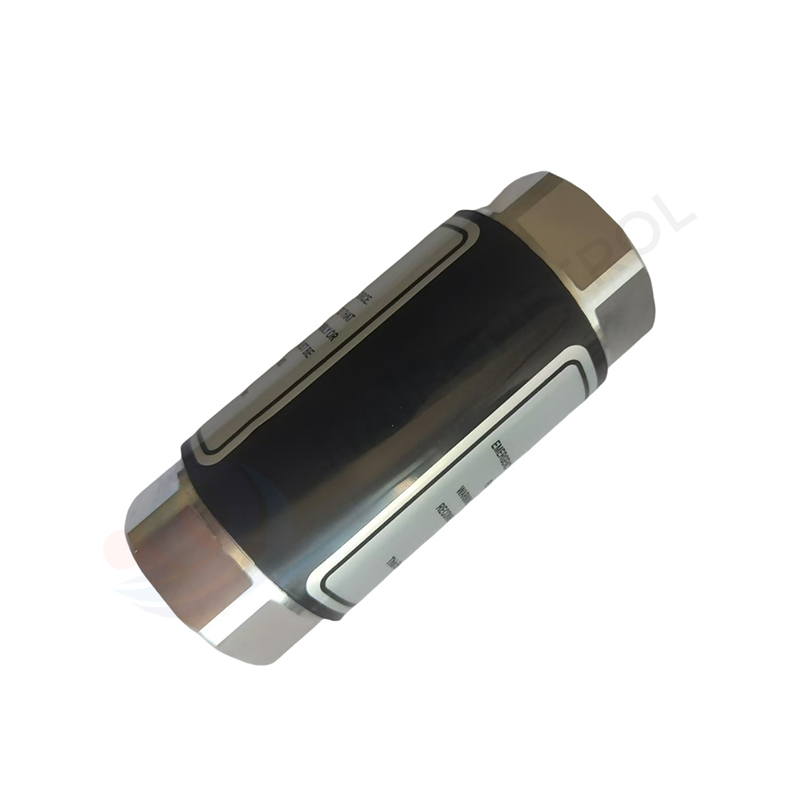

HBVRLDF-M34-S Series Vapor Recovery Reusable Breakaway
(Coaxial Safety Break / Drive-Off Protection Coupling / Fuel Line Disconnect Device)
In modern fueling operations, vehicles accidentally driving away can damage dispensers and hose assemblies, as well as cause fuel spills and vapor emissions. The HBVRLDF-M34-S Series Vapor Recovery Reusable Breakaway is designed to protect fuel dispensers, hose assemblies, and vehicles. It is installed at the top fuel outlet of dispensers or between long and short coaxial hoses. When excessive axial force occurs, the device immediately stops fuel flow and seals the vapor path, ensuring safety.
This product is known by different names across global markets, largely due to regional fuel station standards and safety regulations. In Europe, it is commonly referred to as a self-sealing breakaway coupling or drive-off safety connector, while in North America it is often called a fuel breakaway device or vapor recovery safety valve. In the Middle East, terms such as coaxial safety disconnect and fuel hose breakaway valve are widely used. Across Asia, it may be described as a vapor recovery breakaway or coaxial safety breakaway coupling.
Despite these regional differences in terminology, all of these products share the same essential function: automatically disconnecting the fuel hose during accidental pull-away or drive-off incidents to prevent fuel spills, protect dispensing equipment, and enhance forecourt safety.
Key Features
Self-Sealing Design
Dual-poppet structure automatically closes both fuel and vapor lines during a breakaway, preventing fuel spillage and VOC emissions.
High-Performance Materials
Body: High-strength aluminum alloy
Main seals: Viton®
Guide and poppets: Acetal
Protective sleeve: Impact-resistant nylon
Main spring: Stainless steel
Reusable & Cost-Effective
Factory-tested for reliability. After an event, trained personnel can inspect, reset, and reuse the breakaway, reducing operational costs.
Wide Fuel Compatibility
Supports all standard gasoline, including ethanol-blended fuels. Maximum working pressure: 3.5 bar; flow rate up to 45 L/min; operating temperature range −20°C to +55°C.
User-Friendly Operation
Easy to install, compatible with any vacuum-assist vapor recovery dispenser
External protective sleeve shields sealing components during a drive-off
Easily replaces existing inverted breakaway devices in the market
Application Scenarios
Stage II vapor recovery dispenser systems
Top fuel outlet dispensers for safety protection
Gas station renovation or system upgrade projects
Connection protection for long and short coaxial hose assemblies
Benefits for Users
Enhanced Safety: Prevents fuel spills and equipment damage from accidental pull-offs
Reduced Maintenance Costs: Reusable design with simple replacement and inspection
High Compatibility: Works with globally popular vapor recovery dispensers
Environmentally Compliant: Effectively seals fuel and vapor during drive-off events, reducing VOC emissions
The HBVRLDF-M34-S Series Vapor Recovery Reusable Breakaway provides modern fueling stations with a reliable solution for vapor recovery, drive-off protection, and operational safety.
